Instruments and indicators
48
EMU36242
6Y8 Multifunction speedome-
ters
The speedometer unit shows the boat speed
and has functions of fuel meter and system
voltage display. The chosen display is select-
ed by using the “ ” (set) and “ ” (mode)
buttons as described in this section. In addi-
tion, the speedometer can show the desired
unit of measurement such as km/h, mph, or
knots. If the speed sensor is installed, the unit
can also show the trip display. However,
even if the speed sensor is not installed, the
trip display can be shown by connecting an
optional sensor to the unit. In addition, if op-
tional sensors are connected to the unit, wa-
ter surface temperature display, depth
display, and clock will also be available. For
the optional sensors, consult your Yamaha
dealer.
After the main switch is first turned on, all the
displays come on as a test. After a few sec-
onds, the gauge will change to normal oper-
ation.
For more information, see the operation man-
ual originally supplied with the meter.
EMU36251
6Y8 Multifunction fuel manage-
ment meters
The fuel management meter has the func-
tions of fuel flow meter, total consumption
display, fuel economy display, and remaining
fuel display. The chosen display is selected
by using the “ ” (set) and “ ” (mode)

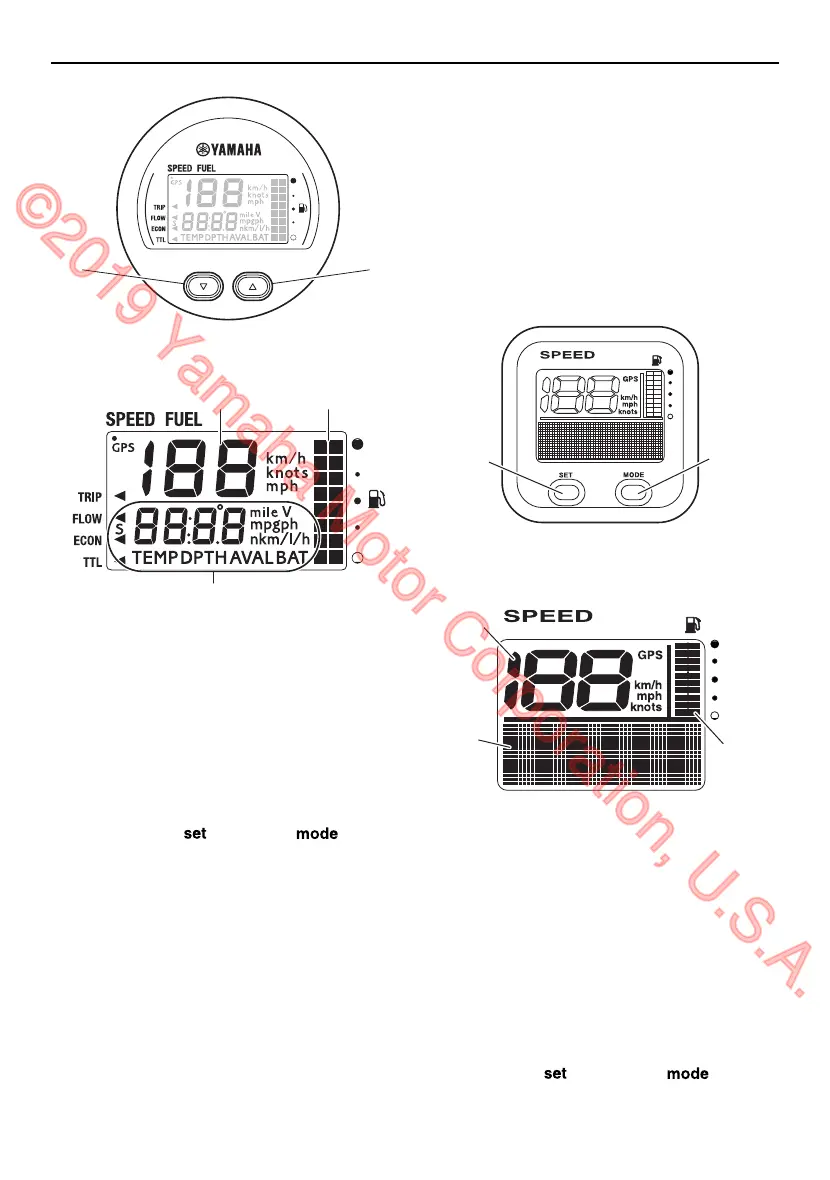

1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
