Yamaha F2.5B - Main Components

2-1
E
EMU01206¯

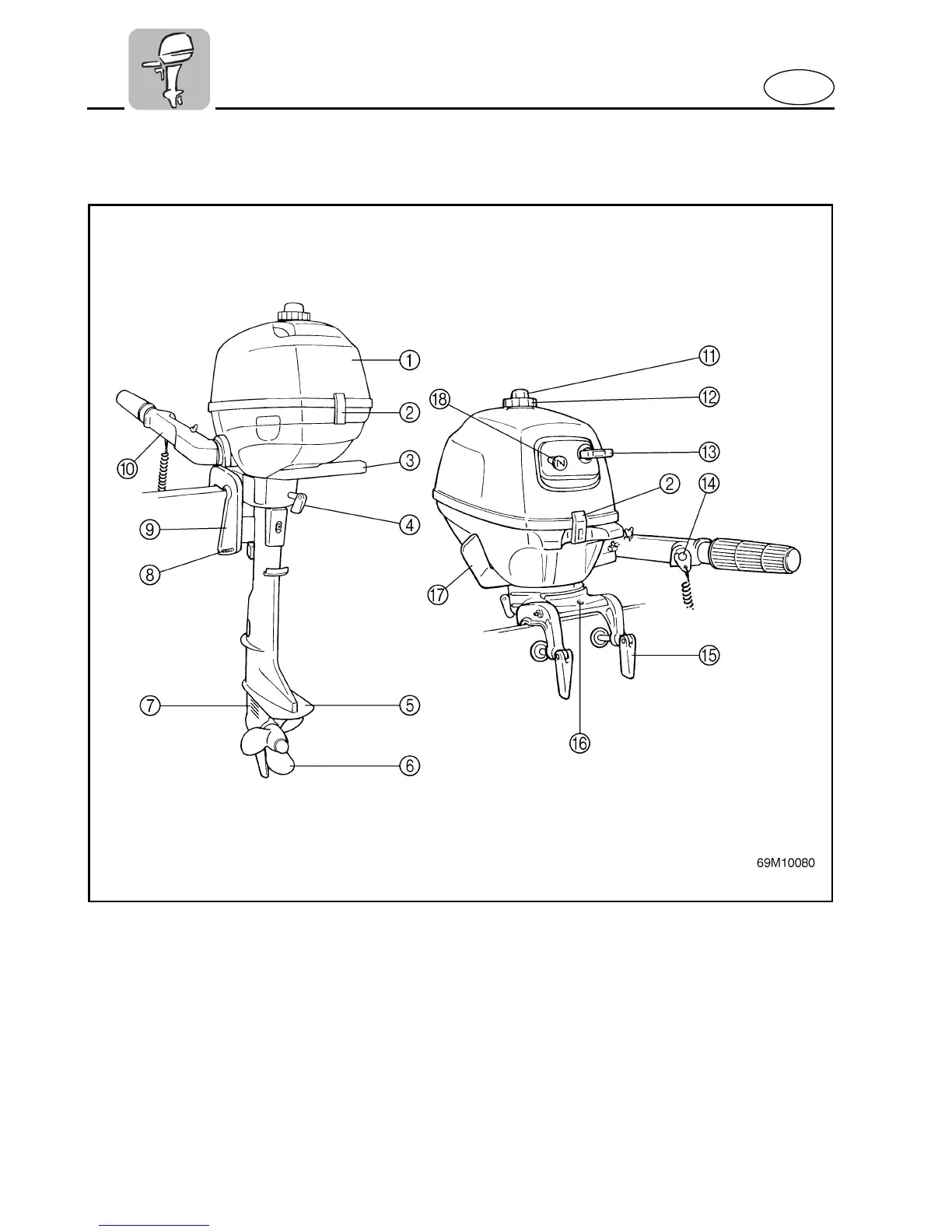

MAIN COMPONENTS
1
Top cowling
2
Top cowling lock levers
3
Carrying handle
4
Steering friction adjusting screw
5
Anti-cavitation plate
6
Propeller
7
Cooling water inlet
8
Trim angle adjusting rod
9
Clamp bracket
0
Tiller handle
A
Air vent screw
B
Fuel tank cap
C
Recoil starter handle
D
Engine stop button/
Engine stop lanyard switch
E
Clamp screw
F
Rope attachment
G
Gear shift lever
H
Choke knob
