67C3K11 5-6
1
2
3
4
5
6
7
8
9
NOTE:
• Be sure to remove any grease from the
tapered portion h of the crankshaft and the
inner surface k of the flywheel magnet 8.
• Apply engine oil to the threads m of the fly-
wheel magnet nut 9 and upper and lower
surfaces n of the washer before installa-
tion.

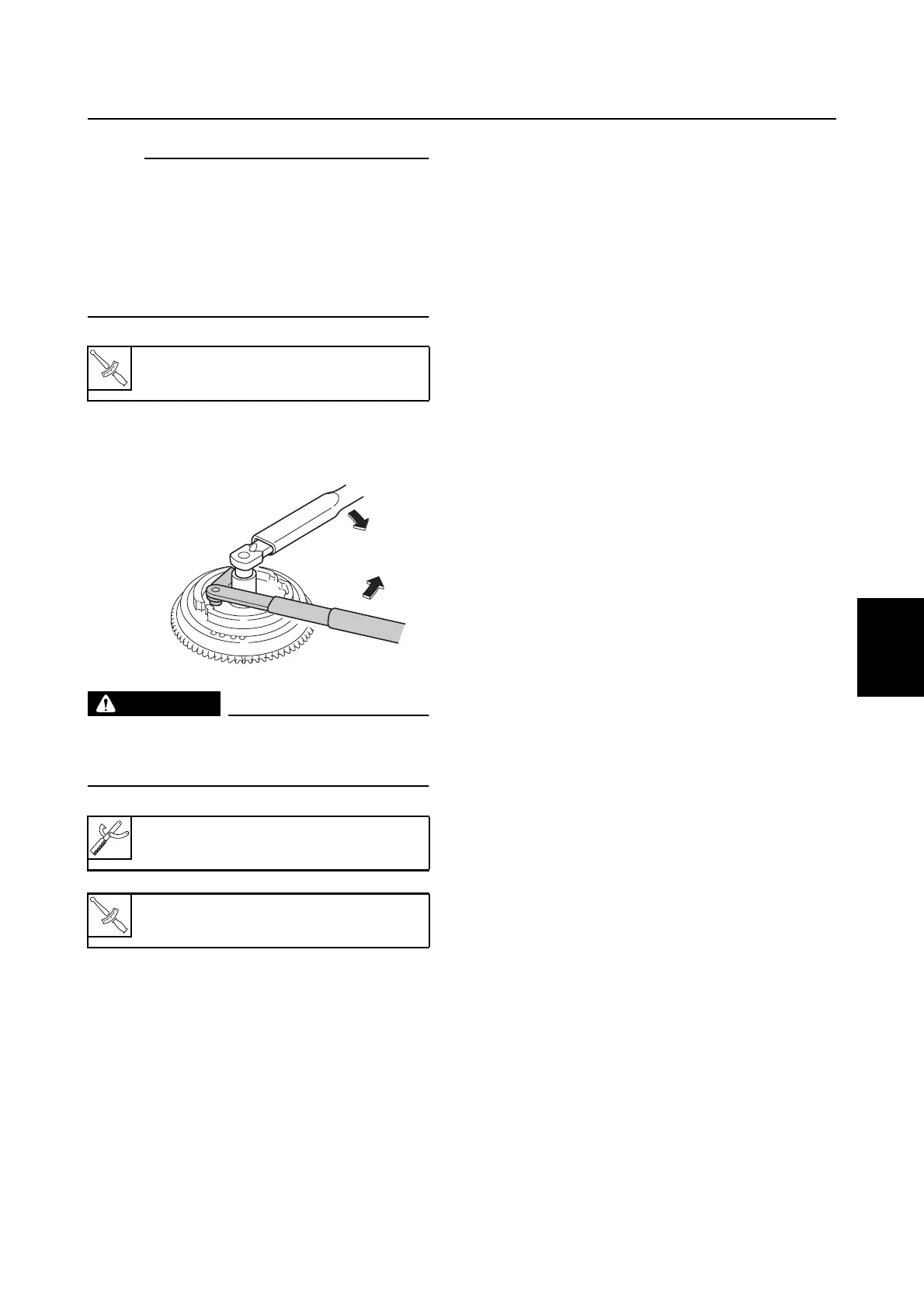

12. Tighten the flywheel magnet nut 9 to the
specified torque.
WARNING
Apply force in the direction of the arrows
shown to prevent the flywheel holder from
slipping off easily.
13. Install all parts removed during removal.
T
R
.
.
Stator assembly bolt 5:
6 N·m (0.6 kgf·m, 4.4 ft·lb)
Flywheel holder: 90890-06522
T
R
.
.
Flywheel magnet nut 9:
157 N·m (15.7 kgf·m, 115.8 ft·lb)
S6AG5G40
Power unit (check and adjustment)
