Yamaha F70A - Power Trim and Tilt will Not Operate

Trouble Recovery
96
EMU29524
Power trim and tilt will not operate
If the engine cannot be tilted up or down with
the power trim and tilt because of a dis-
charged battery or a failure with the power
trim and tilt unit, the engine can be tilted
manually.
1. Loosen the manual valve screw by turn-
ing it counterclockwise until it stops.
2. Put the engine in the desired position,
then tighten the manual valve screw by
turning it clockwise.

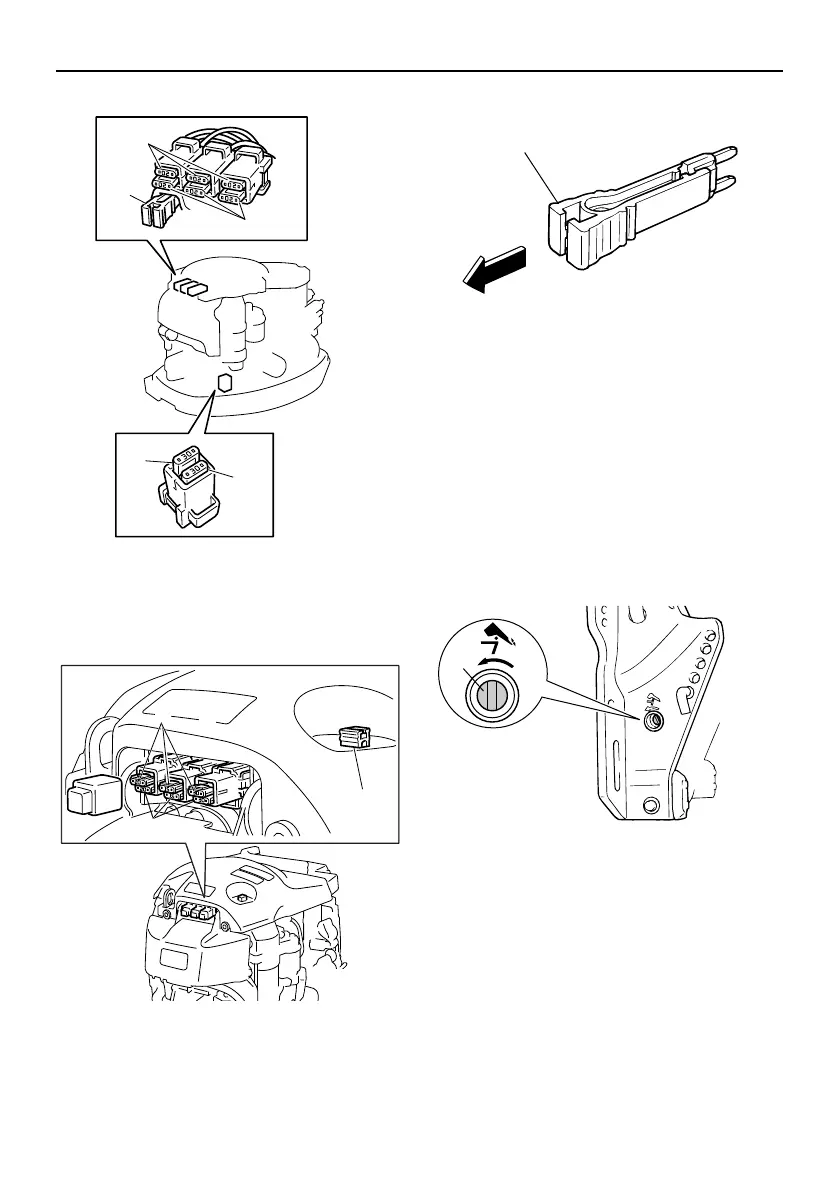

1. Fuse (20 A  3, 30 A)
2. Spare fuse (20 A  3, 30 A)
3. Fuse puller
1. Fuse (15A, 20 A, 30 A)
2. Spare fuse (15A, 20 A, 30 A)
3. Fuse puller
3
2
1
1
2
ZMU05099
2
1
3
ZMU07093
1. Fuse puller
1. Manual valve screw
1
ZMU04337
1
ZMU03668
