Components
30
EMU26462

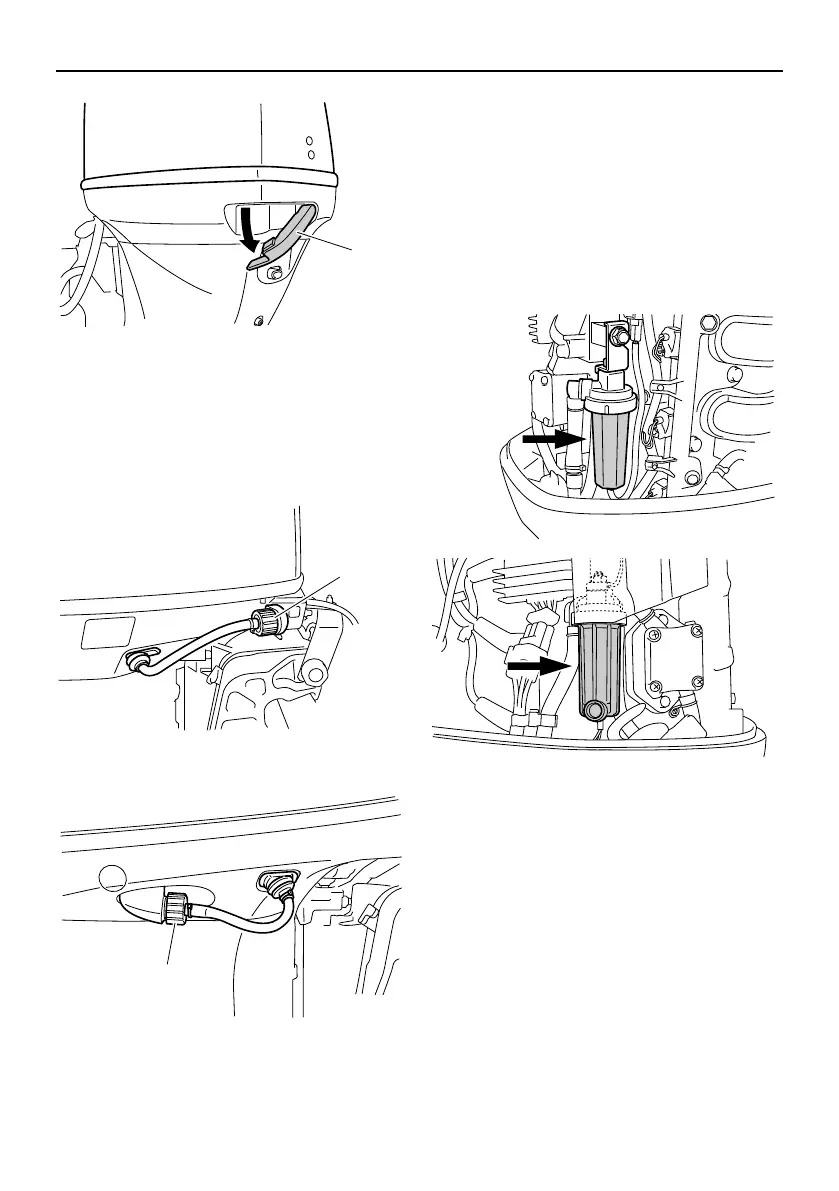

Flushing device
This device is used to clean the cooling wa-
ter passages of the motor using a garden
hose and tap water.
For details on usage, see page 73.
EMU35562
Fuel filter/Water separator
This engine has a combination fuel filter/wa-
ter separator and associated alert system. If
water separated from the fuel exceeds a
specific volume, the alert device of 6Y8 Mul-
tifunction Tachometer will activate.
Activation of alert device
● The water separator-alert indicator of 6Y8
Multifunction Tachometer will blink.
● The buzzer will sound intermittently only
when the gear shift is in neutral.
● If the alert system has activated, stop the
engine and consult a Yamaha dealer im-
mediately.
EMU26303
Alert indicator
If the engine develops a condition which is
cause for alert, the indicator lights up. For
1. Cowling lock lever(s)
1. Flushing device
1. Flushing device
