Components
27
● Steering movement is blocked when the
adjuster lever is set to the “A” position.
● Check the tiller handle for smooth move-
ment when the lever is turned to the star-
board side “B”.
● Do not apply lubricants such as grease to
the friction areas of the steering friction ad-
juster.
EMU26143

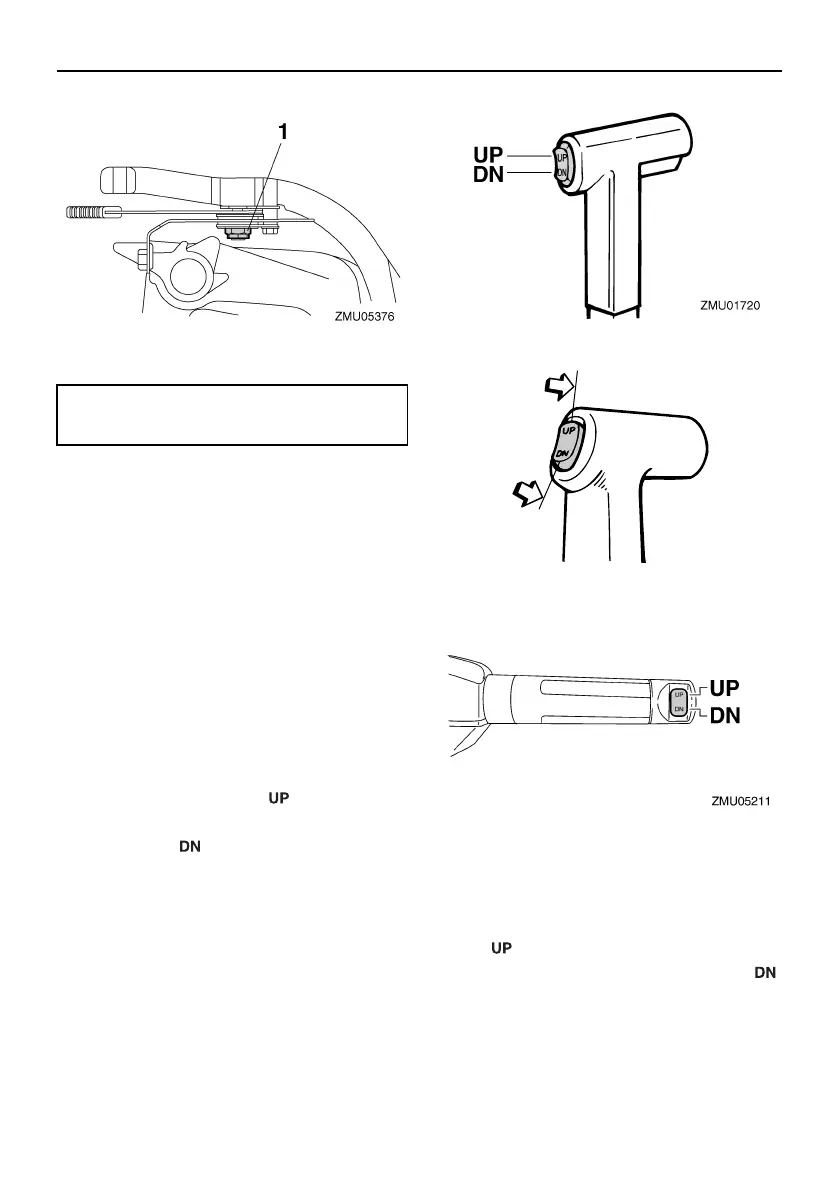

Power trim and tilt switch on remote
control or tiller handle
The power trim and tilt system adjusts the
outboard motor angle in relation to the tran-
som. Pressing the switch “ ” (up) trims the
outboard motor up, and then tilts it up. Press-
ing the switch “ ” (down) tilts the outboard
motor down and trims it down. When the
switch is released, the outboard motor will
stop in its current position.
For instructions on using the power trim and
tilt switch, see pages 63 and 65.
EMU26154
Power trim and tilt switch on bottom
cowling
The power trim and tilt switch is located on
the side of the bottom cowling. Pushing the
switch “ ” (up) trims the outboard motor up,
and then tilts it up. Pushing the switch “ ”
(down) tilts the outboard motor down and
trims it down. When the switch is released,
the outboard motor will stop in its current po-
sition.
1. Nut
Nut tightening torque:
3.8 Nm (0.38 kgf-m, 2.8 ft-lb)
