Components
18
F70AET
1
3
2
4
11
9
5
6
7
8
12
10
10
ZMU07111
TRIP TIME BATT
Km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
13
14
15
16
17
18

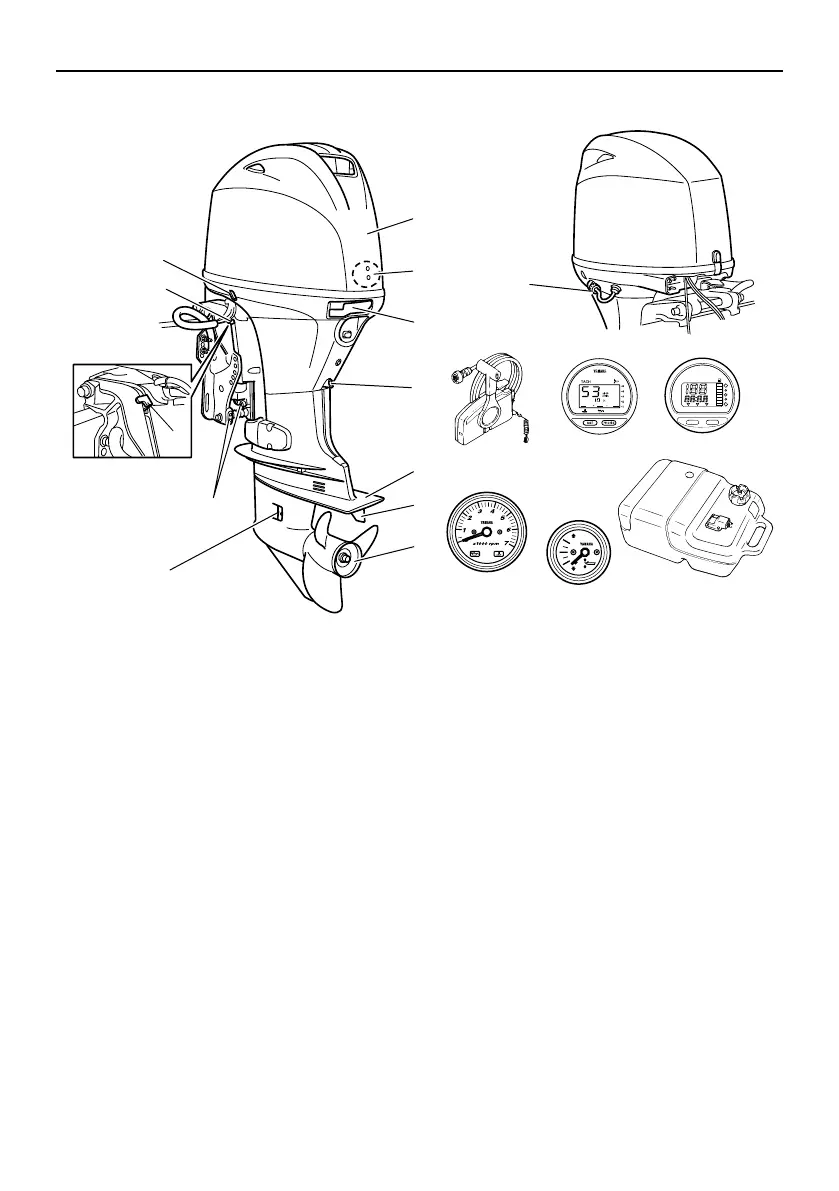

1. Top cowling
2. Water separator
3. Cowling lock lever
4. Drain screw
5. Anti-cavitation plate
6. Trim tab (anode)
7. Propeller
8. Cooling water inlet
9. Anode(s)
10. Tilt support lever
11. Power trim and tilt switch
12. Flushing device
13. Remote control box (side mount type)*
14. Digital tachometer*
15. Digital speedometer*
16. Tachometer*
17. Trim meter*
18. Fuel tank*
