2-5
GB
EMU01331

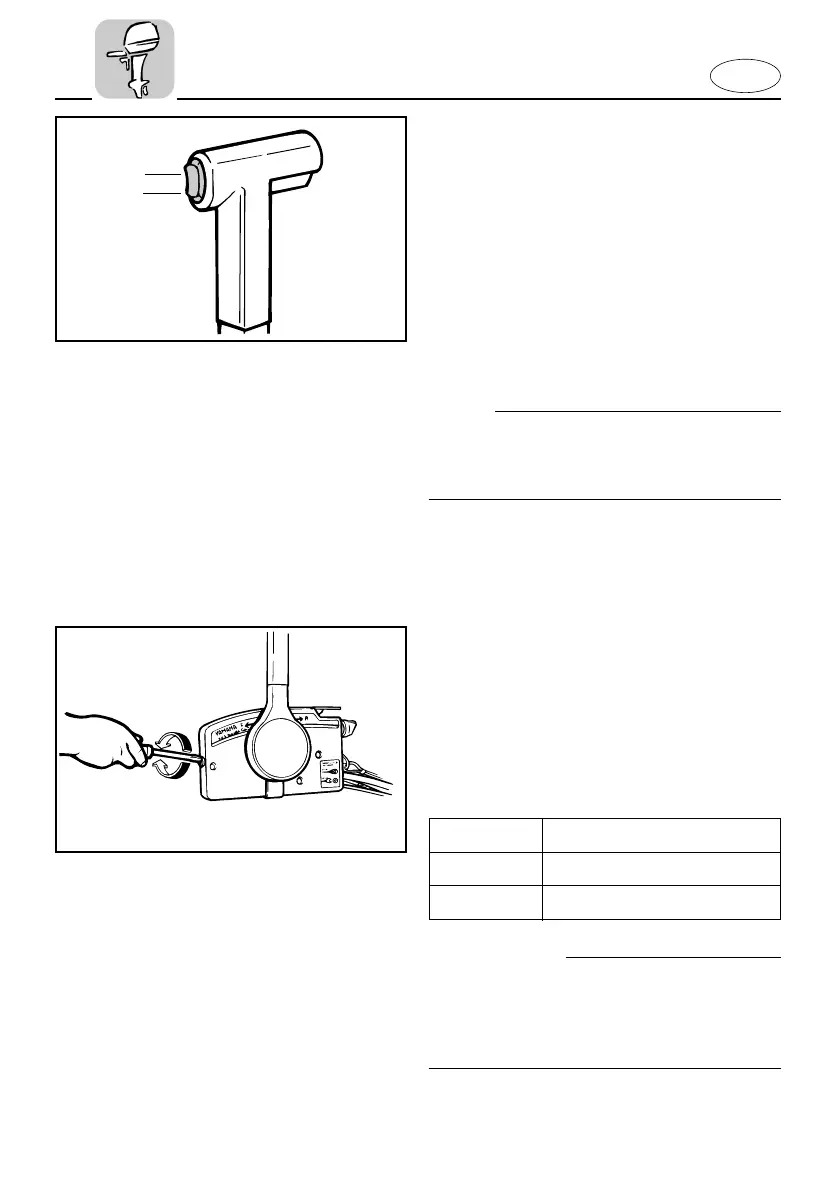

Power Trim/Tilt Switch
The power trim/tilt adjusts the motor
angle in relation to the transom. The
power trim/tilt switch is located on the
remote control lever grip. Pushing the
switch “UP” trims the motor up, then tilts
the motor up. Pressing the switch “DN”
tilts the motor down and trims the motor
down. When the switch button is
released, the motor will stop in its current
position.
NOTE:
Refer to the sections “ADJUSTING TRIM
ANGLE” and “TILTING UP/DOWN” in
Chapter 3 for instructions on usage.
EMU01155
Throttle Friction Adjusting Screw
A friction device in the remote control box
provides adjustable resistance to move-
ment of the remote control lever, and can
be set according to operator preference.
An adjusting screw is located on the front
of the remote control box.
w
Do not overtighten the friction adjusting
screw. If there is too much resistance, it
may be difficult to move the lever, which
could result in an accident.
Resistance Screw
Increase Turn clockwise
Decrease Turn counterclockwise
UP
DN
701034*
UP
DN
701035
67F-9-76-A0-2 4/1/02 4:02 PM Page 12
