Yamaha FT8D - Chapter 2; Main Components

2-1
GB
EMU01206

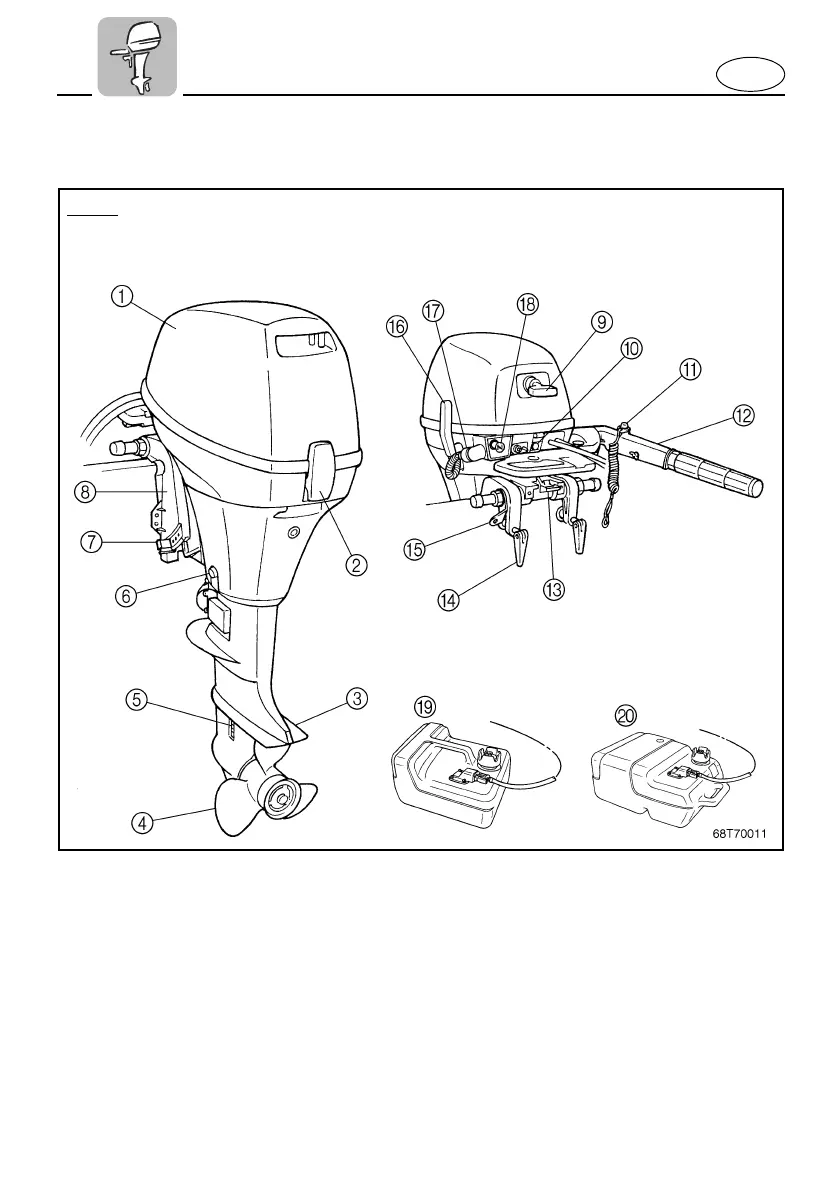

MAIN COMPONENTS
1
Top cowling
2
Top cowling lock lever
3
Anti-cavitation plate
*
4
Propeller
5
Cooling water inlet
6
Oil drain bolt
7
Trim angle adjusting rod
8
Clamp bracket
9
Recoil starter handle
0
Warning indicator
A
Engine stop lanyard switch/Engine stop button
B
Tiller handle
C
Tilt lock lever
D
Clamp screw
E
Rope attachment
F
Gear shift lever
*
G
Flushing device
H
Choke knob
*
I
Fuel tank
*
J
Fuel tank (Emission contorol model)
* May not be exactly as shown; also may not be in-
cluded as standard equipment on all models.
F6/F8
