Yamaha FT8D - Tilt Support Knob; Tilt Support Bar; Power Tilt Unit

2-33
GB
EMU00155

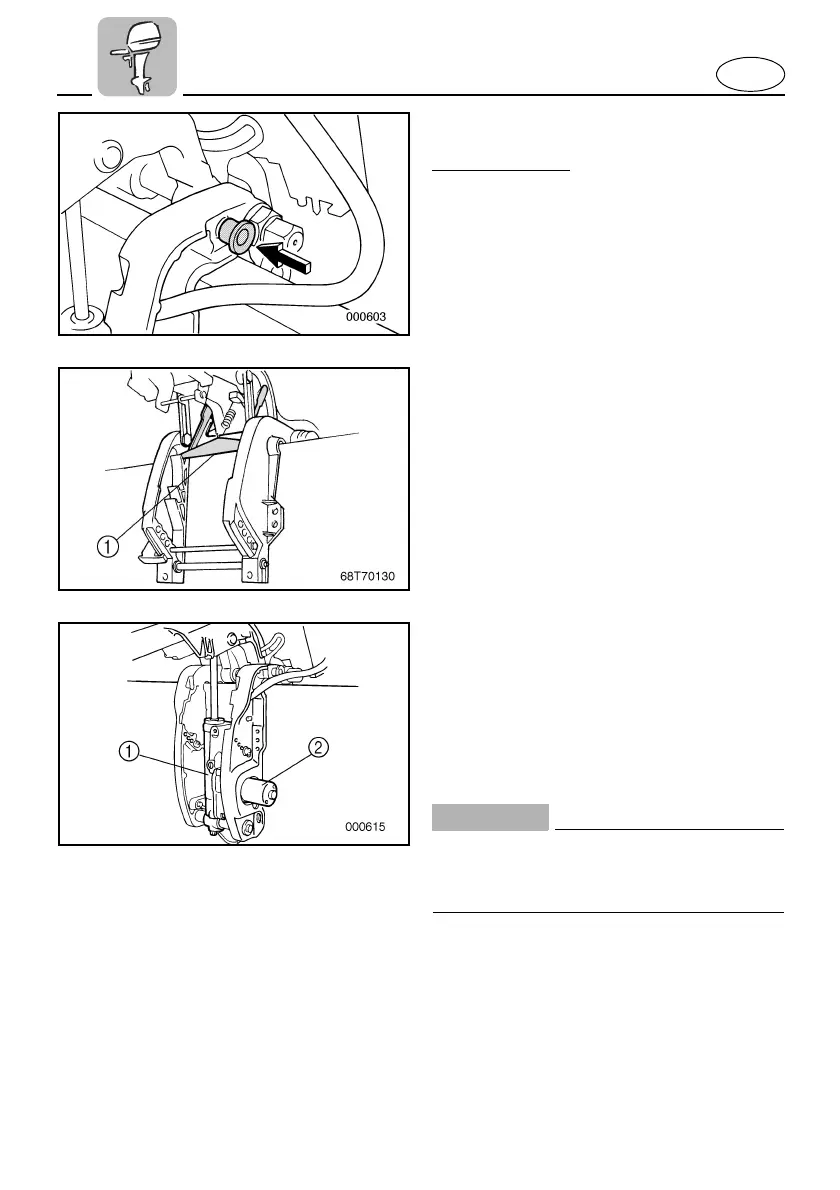

TILT SUPPORT KNOB
Power tilt model
To keep the outboard motor in the tilted-up
position, push the tilt support knob under the
swivel bracket.
EMU00156¯
TILT SUPPORT BAR
The tilt support bar
1
keeps the outboard
motor in the tilted up position.
EMU01348
POWER TILT UNIT
This unit tilts the motor up and down and is
controlled via the power tilt switch.
1
Power tilt unit
2
Power tilt motor
CAUTION:
@
Do not step on or exert pressure on the
power tilt motor. The power tilt unit could
be damaged as a result.
@
