INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU42770
Engine trouble warning light “”
This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system. (See page 3-4 for an expla-
nation of the self-diagnosis device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU40173
Multi-function meter unit
WARNING
EWA12421
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit.
The multi-function meter unit is
equipped with the following:
● a speedometer (which shows the
riding speed)
● a tachometer (which shows engine
speed)
● an odometer (which shows the to-
tal distance traveled)
● two tripmeters (which show the
distance traveled since they were
last set to zero)
● a fuel reserve tripmeter (which
shows the distance traveled since
the left segment of the fuel meter
started flashing)
● a clock
● a fuel meter
● a coolant temperature display
● an air intake temperature display
● a self-diagnosis device
● an LCD and tachometer bright-
ness control mode
NOTE:
● Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.
● To switch the speedometer and
odometer/tripmeter displays be-
tween kilometers and miles, press
the “SELECT” button for at least
one second.

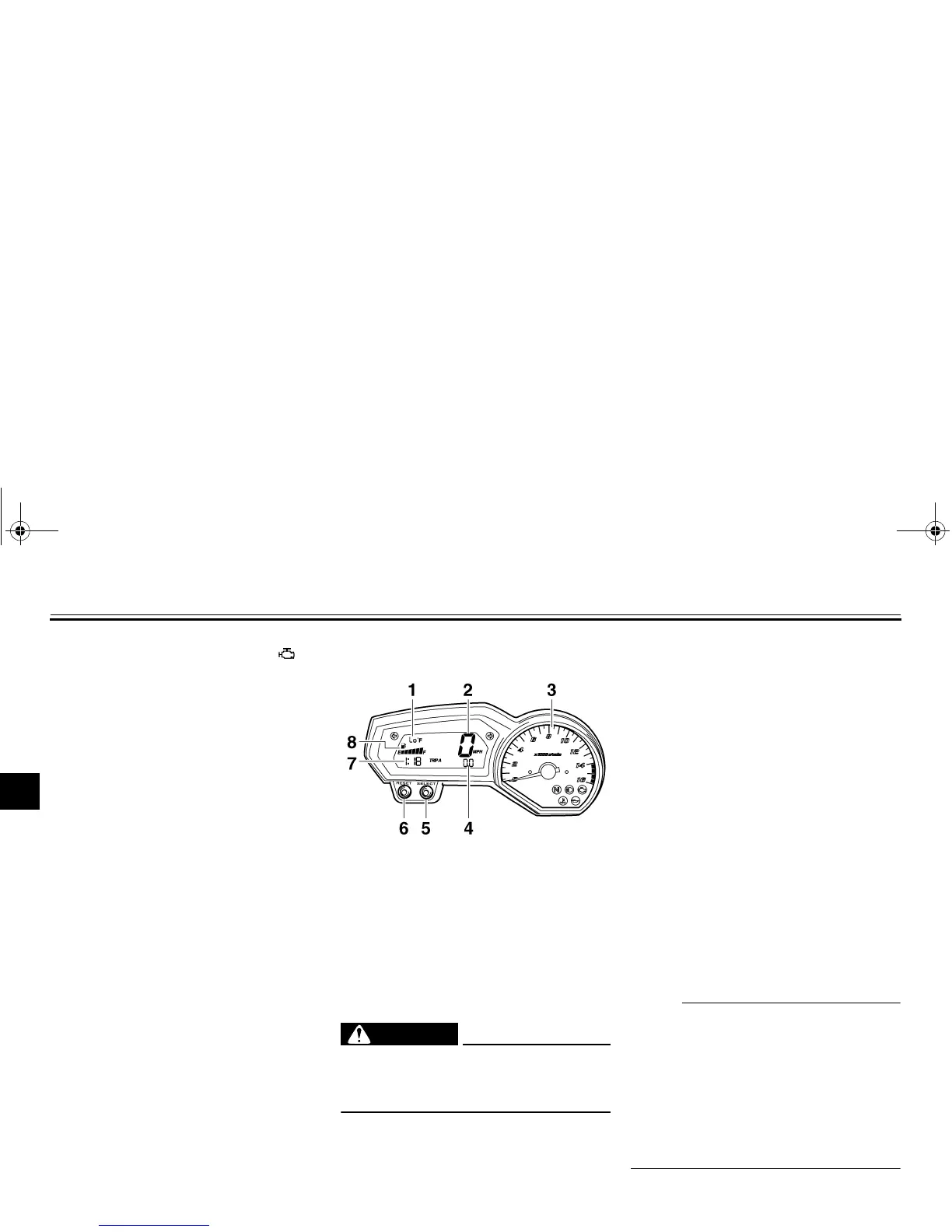

1. Coolant temperature display/air intake tem-
perature display
2. Speedometer
3. Tachometer
4. Odometer/tripmeter/fuel reserve tripmeter
5. “SELECT” button
6. “RESET” button
7. Clock
8. Fuel meter
