Storage compartment
The storage compartment is located
under the seat. (See page 3-13.)
WARNING
EWA10961
● Do not exceed the load limit of 3
kg (7 lb) for the storage com-
partment.
● Do not exceed the maximum
load of FZS6X 190 kg (419 lb)
FZS6XC 189 kg (417 lb) for the
vehicle.
When storing the owner’s manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get wet.
When washing the vehicle, be careful
not to let any water enter the storage
compartment.
EAU36462
Adjusting the shock absorber
assembly
This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum or
minimum settings.
Adjust the spring preload as follows.
1. Remove the seat. (See page
3-13.)
2. To increase the spring preload and
thereby harden the suspension,
turn the adjusting ring in direction
(a). To decrease the spring pre-
load and thereby soften the sus-
pension, turn the adjusting ring in
direction (b).

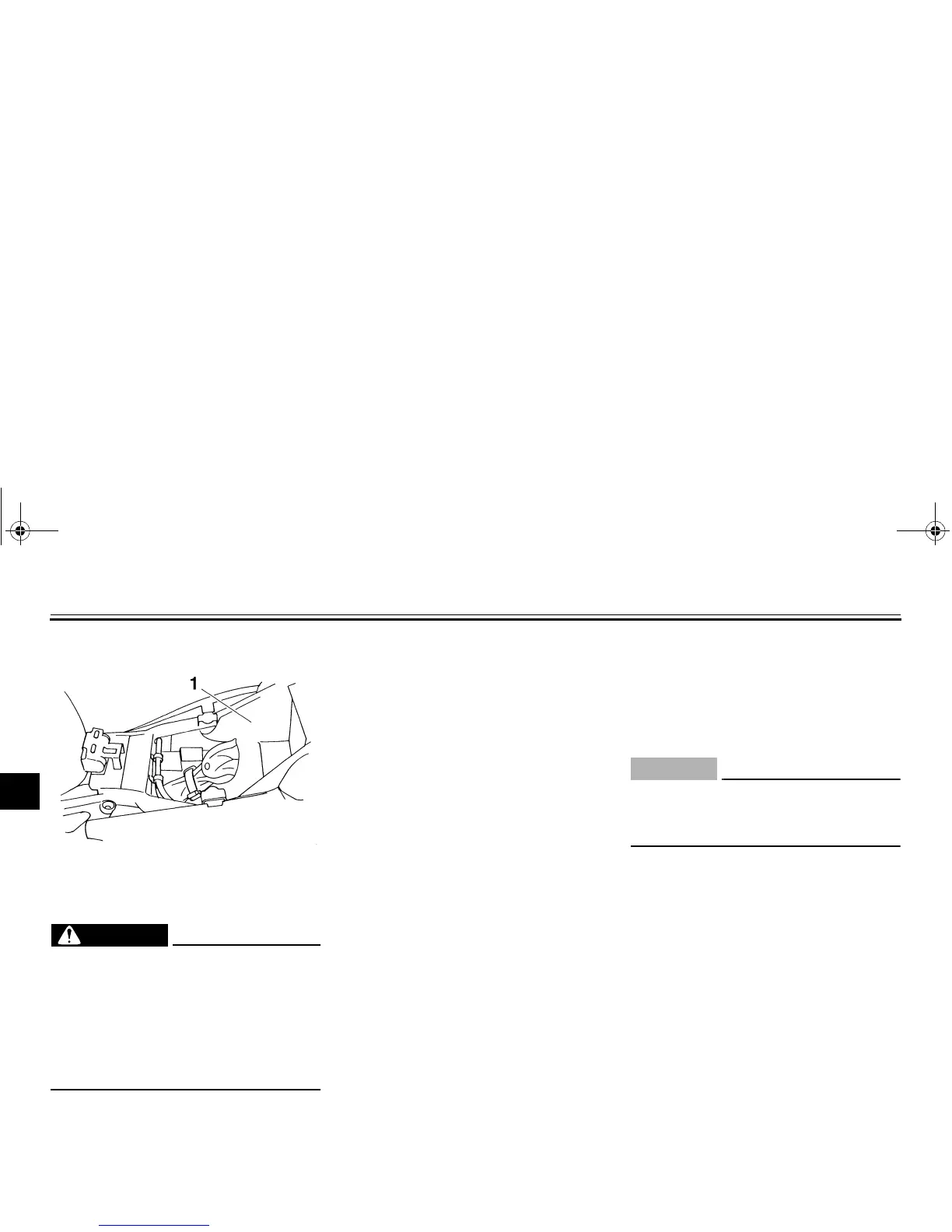

1. Storage compartment
