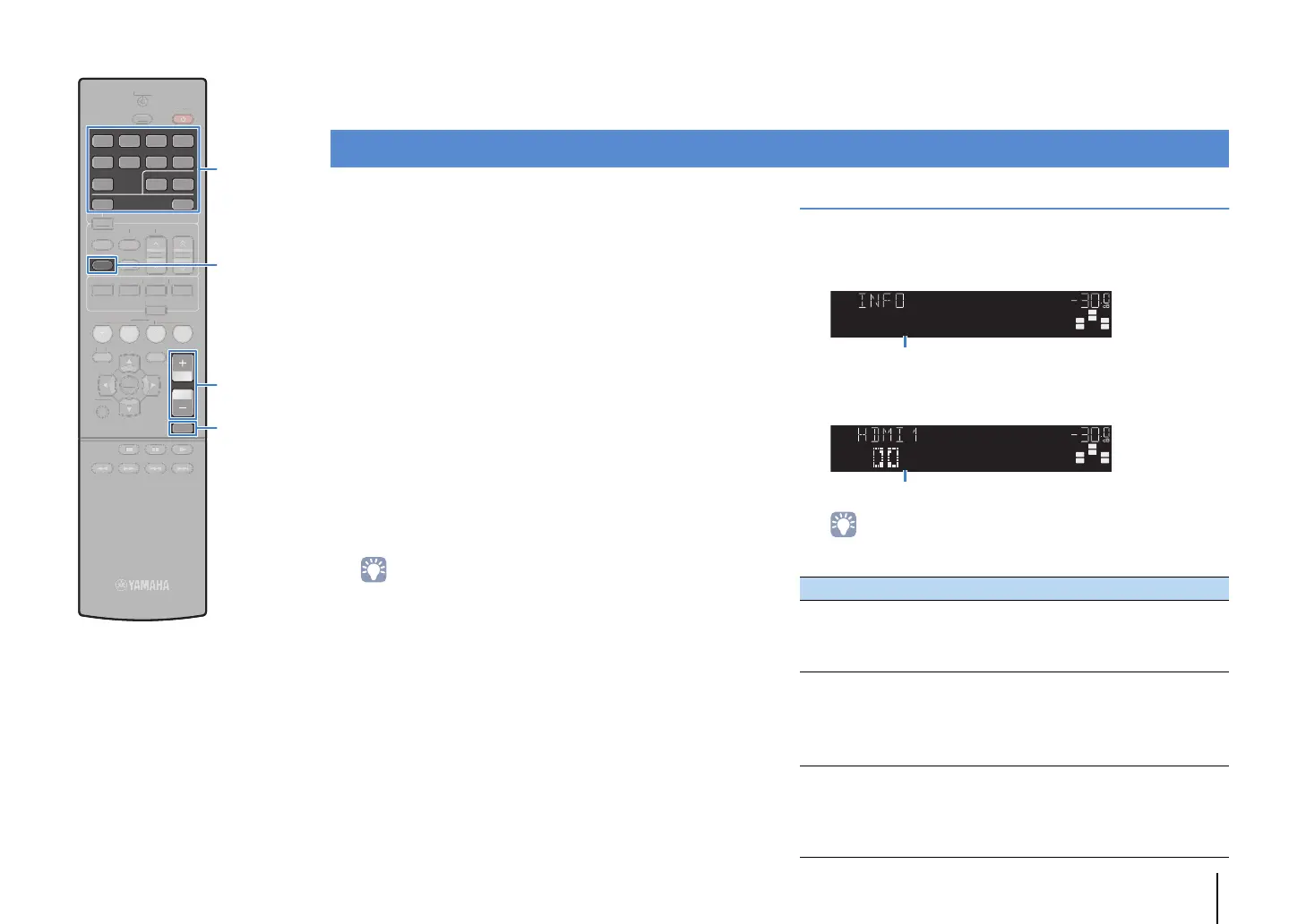

PLAYBACK ➤ Basic playback procedure En 33
PLAYBACK
1
Turn on the external devices (such as a TV or BD/
DVD player) connected to the unit.
2
Use the input selection keys to select an input
source.
3
Start playback on the external device or select a
radio station.
Refer to the instruction manual for the external device.
For details on the following operations, see the
corresponding pages.
• Listening to FM/AM radio (p.40)
• Playing back iPod music (p.44)
• Playing back music stored on a USB storage device
(p.48)
4
Press VOLUME to adjust the volume.
• To mute the audio output, press MUTE. Press MUTE again to unmute.
• To adjust the treble/bass settings, use the “Option” menu or TONE
CONTROL on the front panel (p.52).
Switching information on the front display
1
Press INFO.
Each time you press the key, the displayed item changes.
About 3 seconds later, the corresponding information for
the displayed item appears.
• Available items vary depending on the selected input source. The displayed
item can also be applied separately to each input source group.
Basic playback procedure
Input source group Item
HDMI 1–4
AV 1–5
AUDIO 1–2
V-AUX
Input (input source name), DSP Program (sound
mode name), Audio Decoder (decoder name)
USB
Song (song title), Artist (artist name), Album (album
name), DSP Program (sound mode name), Audio
Decoder (decoder name)
* During simple playback of iPod:
Input (input source name), DSP Program (sound mode
name), Audio Decoder (decoder name)
TUNER
Frequency (frequency), DSP Program (sound mode
name), Audio Decoder (decoder name)
* (U.K. and Europe models only)
Radio Data System data is also available when the unit
is tuned into a Radio Data System broadcasting station
(p.43).
VOL.
SW
C
L
SL SR
R
AudioDecoder
Item name
VOL.
SW
C
L
SL SR
R
ProLogic
Information
123 4
123 4
512
FM
INFO
MEMORY
AM
PRESET TUNING
SCENE
OPTION
SETUP
RETURN
VOLUME
BD
DVD
TV CD RADIO
MUTE
ENTER
TRANSMIT
RECEIVER
HDMI
AV
AUDIO
TUNER
SLEEP
USB
MODE
V-AUX
MOVIE MUSIC SUR. DECODE STRAIGHT
ENHANCER
FM
MEM
O
RY
AM
P
RESE
T
T
UNIN
G
S
CE
N
E
O
PTI
O
N
S
ET
U
P
RET
UR
N
BD
DV
D
T
V
C
D
R
AD
I
O
ENTE
R
T
RAN
S
MI
T
RECEIVER
TUNER
S
LEEP
M
O
DE
MOVIE MUSI
C
S
UR. DECOD
E
S
TRAIGHT
E
NHAN
C
E
R
INFO
VOLUME
MUTE
Input selection keys

Yamaha HTR-3066 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Total Harmonic Distortion (THD)	0.9 %
Dynamic power per channel (4 Ohm)	160 W
Dynamic power per channel (8 Ohm)	110 W
Power output per channel (1KHz@8 Ohm)	100 W
Power output per channel (20-20KHz@8 Ohm)	70 W
HDMI in	4
AC (power) in	Yes
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Ethernet LAN	No
Product color	Black
Audio decoders	Dolby TrueHD, DTS Digital Plus, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
Power consumption (standby)	0.3 W
Package weight	10000 g

Weight and Dimensions

Depth	314.3 mm
Width	435 mm
Height	152.4 mm
Weight	7394 g
