Yamaha HTR-3066 User Manual

PLAYBACK ➤ Playing back iPod music En 44
You can play back iPod music on the unit using a USB cable
supplied with the iPod.
• This manual describes both the “iPod” and “iPhone” as the “iPod”. “iPod” means
both “iPod” and “iPhone” unless otherwise specified.
• Some features may not be compatible, depending on the model or software
version of the iPod.
• To play back iPod videos on the unit, an Apple Composite AV Cable (not supplied)
is required. Connect the USB and composite video plugs of the Apple Composite
AV cable to the USB jack and VIDEO AUX (VIDEO) jack of the unit, and connect
your TV and the unit with a video pin cable (p.22).

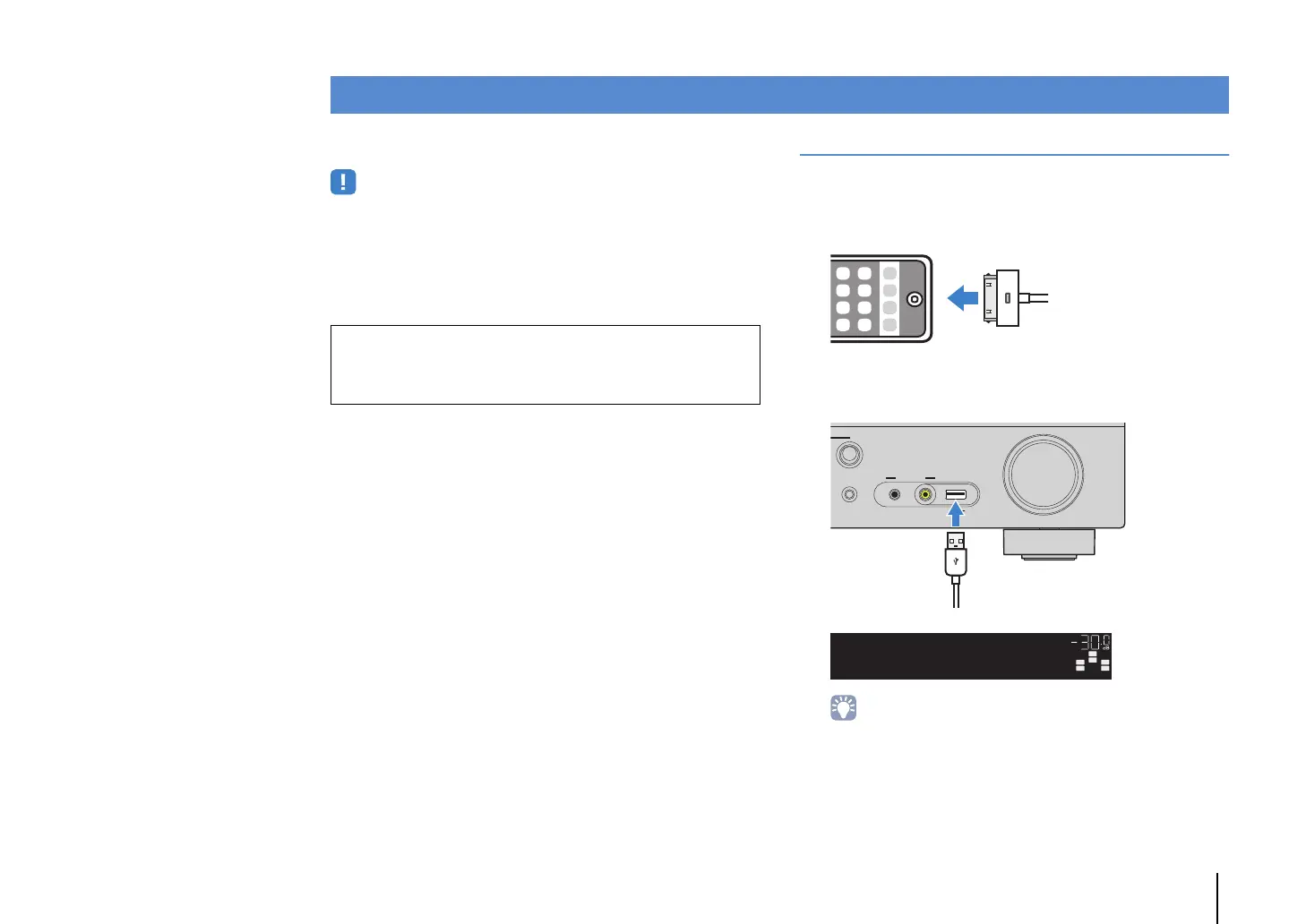

Connecting an iPod
Connect your iPod to the unit with the USB cable supplied with the
iPod.
1
Connect the USB cable to the iPod.
2
Connect the USB cable to the USB jack.
• The iPod charges while it is connected to the unit. If you set the unit to
standby mode while the iPod is connected, the iPod continues to charge (up
to 4 hours).
Playing back iPod music
Supported iPods (as of October 2011)
• iPod touch, iPod nano (2nd gen. to 6th gen.), iPod classic
• iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone
VIDEO
VOLU ME
AUX USB
STRAIGHT
RADIO
VIDEO iPod/iPhone 5V 1A
AUDI O
The unit (front)
VOL.
SW
C
LR
SL SR
iPodConnected
USB

Yamaha HTR-3066 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Total Harmonic Distortion (THD)	0.9 %
Dynamic power per channel (4 Ohm)	160 W
Dynamic power per channel (8 Ohm)	110 W
Power output per channel (1KHz@8 Ohm)	100 W
Power output per channel (20-20KHz@8 Ohm)	70 W
HDMI in	4
AC (power) in	Yes
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Ethernet LAN	No
Product color	Black
Audio decoders	Dolby TrueHD, DTS Digital Plus, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
Power consumption (standby)	0.3 W
Package weight	10000 g

Weight and Dimensions

Depth	314.3 mm
Width	435 mm
Height	152.4 mm
Weight	7394 g
