En 7

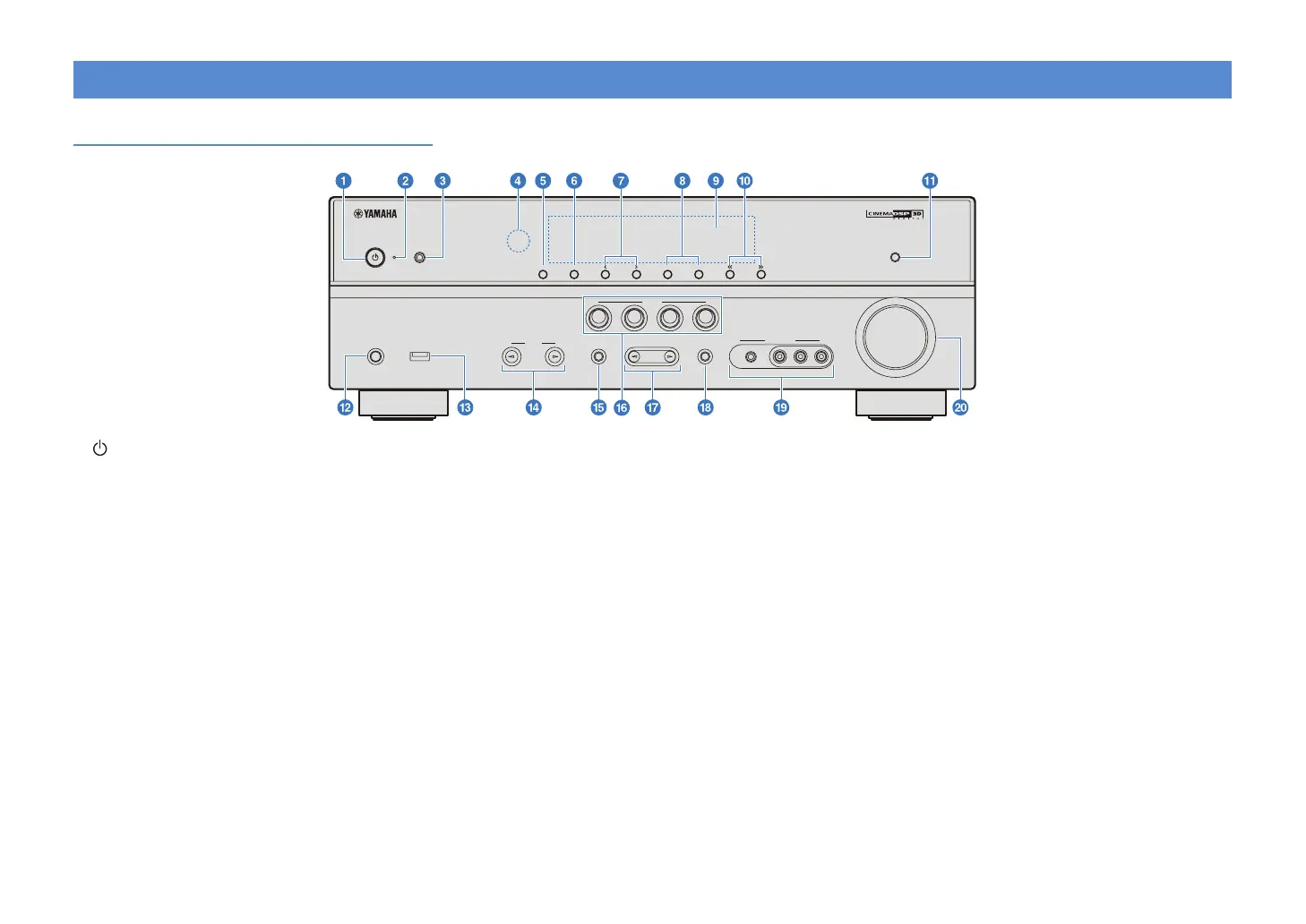

Front panel
1 (power) key
Turns the unit on or into the standby mode.
2 Standby indicator
When the unit is in standby mode, lights up in any of the
following cases when:
- The “Standby Through” function is working (p.71).
- The iPod is charging with “Standby Charge” (p.58).
- The Yamaha iPod wireless system is connected (p.45).
3 YPAO MIC jack
For connecting the supplied YPAO microphone (p.26).
4 Remote control receiver
Receives signals from remote control (p.4).
5 INFO
Changes the information displayed on the front display
(p.31).
6 MEMORY
Registers FM/AM stations as preset stations (p.39).
7 PRESET
Selects the FM/AM preset stations (p.39).
8 FM/AM
Switches FM/AM tuner band to FM or AM (p.38).
9 Front display
Displays information about the unit (p.8).
0 TUNING
Changes FM/AM tuner frequency (p.38).
a DIRECT
Enables/disables the direct mode (p.37).
b PHONES jack
For connecting headphones.
c USB port
For connecting USB devices (p.52).
d INPUT
Switches the selected input source.
e TONE CONTROL
Adjusts high-frequency/low-frequency output of speakers
and headphones (p.57).
f SCENE
Selects the input source and the sound programs with a
single button. When the unit is in standby mode, press this
key to turn on the unit (p.32).
g PROGRAM
Selects a sound program and surround decoder (p.33).
h STRAIGHT
Enables/disables the straight decoding mode (p.37).
i VIDEO AUX jack
For connecting camcorders, game consoles, etc (p.24).
Attach the supplied VIDEO AUX input cover (p.4) when not
using this jack to protect against dust.
j VOLUME
Adjusts the volume level.
