Yamaha HTR-6230 User Manual

13 En
Connections
English
INTRODUCTION
ADDITIONAL
INFORMATION APPENDIX
PREPARATION
BASIC
OPERATION
ADVANCED
OPERATION
This unit has three types of audio jacks, two types of video jacks and HDMI jacks. You can choose the connection
method depending on the component to be connected.

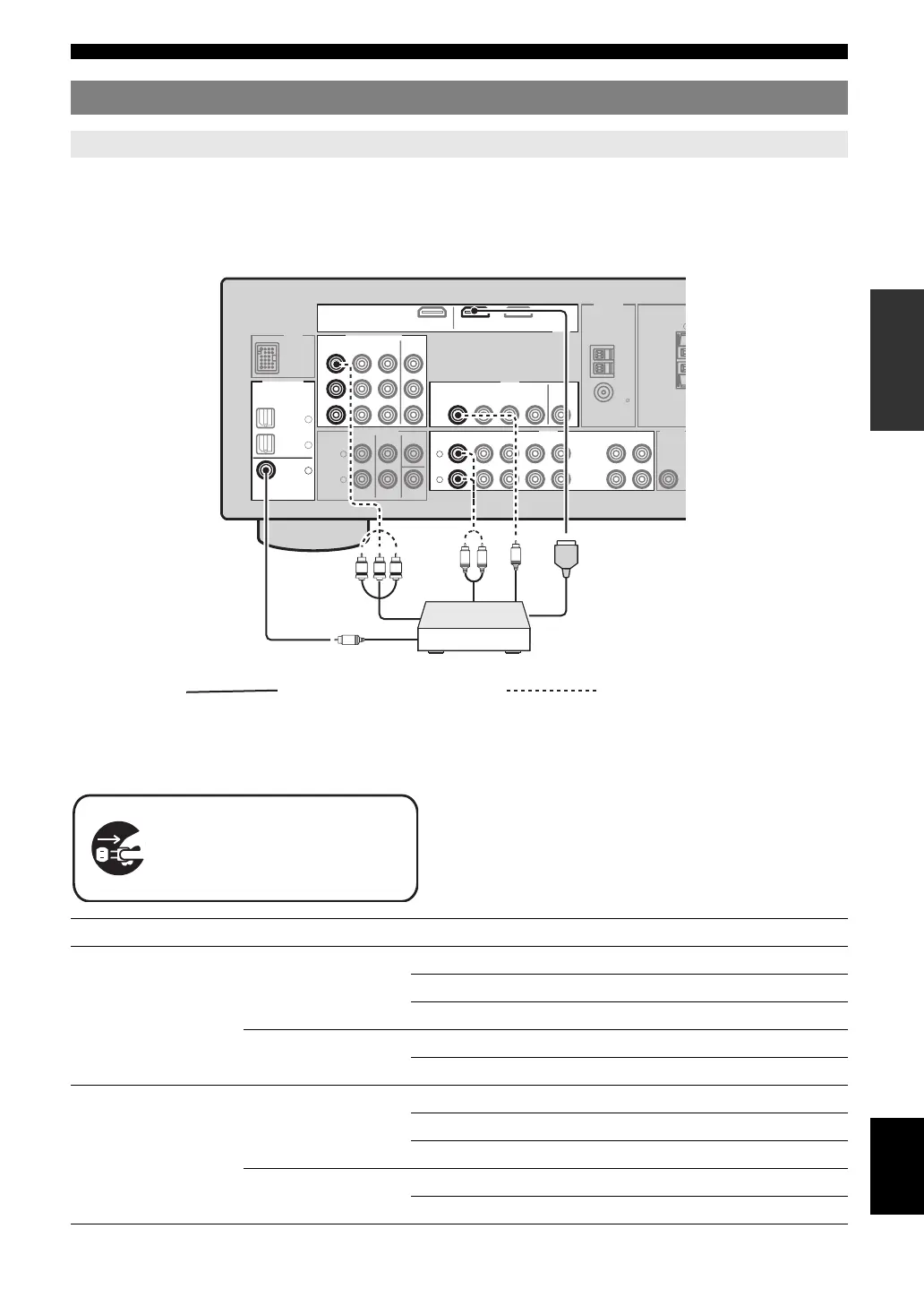

■ Connecting example (connecting a DVD player)
■ Jacks used for audio and video connections
Recommended connections are indicated by (*). When connecting a recording component, you need to make additional
connections for recording (signal transmission from this unit to the recording component).
y
• You can also use the VIDEO AUX jacks (see page 15) on the front panel
to connect an additional component.
• To confirm the positions of “jacks on this unit” in the following table,
refer to “Rear panel” in “Functional overview” on page 6.
Connecting other components
Connecting audio and video components
R
L
R
L
R
DOCK COMPONENT VIDEO
HDMI
VIDEO
AUDIOMULTI CH INPUT
DIGITAL INPUT
OUTPUT
ANTENNA
1
2
3
DVD DTV/CBL DVR
DVD
DVD
COAXIAL
OPTICAL
CD
DTV/CBL
DTV/
CBL
DVDOUT DTV/CBL
S
U
MONITOR
OUT
MD/
CD-R
SUB
WOOFER
OUT
(REC)
IN
(PLAY)
DVR
DVD
FRONT CENTER
SUBWOOFER
SURROUND
DTV/CBL DVR CD
IN
OUT
IN OUT
MONITOR
OUT
AM
GND
FM
75
UNBAL.
Y
P R
P B
P R P B Y
L
R
C
V
Component out
Audio out
Video out
Coaxial out
HDMI out
Recommended connections Alternative connections
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
Component Signal type Jacks on component Jacks on this unit
DVD player or Blu-ray
Disc
Video HDMI out* HDMI (DVD)*
Component out COMPONENT VIDEO (DVD)
Video out (composite) VIDEO (DVD)
Audio Optical out* COAXIAL (DVD)*
Audio out (analog) AUDIO (DVD)
Set-top box Video HDMI out* HDMI (DTV/CBL)*
Component out COMPONENT VIDEO (DTV/CBL)
Video out (composite) VIDEO (DTV/CBL)
Audio Optical out* OPTICAL (DTV/CBL)*
Analog out (analog) AUDIO (DTV/CBL)

Yamaha HTR-6230 Specifications

General

Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192kHz/24-bit
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Surround System Class	7.1 channel
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	17
Tuner Bands	AM/FM
Preset Station Qty	40
HDMI Switching	Yes
Frequency Response	10 Hz - 100 kHz
Power Output	100 W per channel
Amplifier Output Details	100W per channel (8 ohms, 20Hz-20kHz, 0.09% THD)
Surround Sound Effects	Cinema DSP
Additional Features	iPod compatibility
Tuning Range	FM: 87.5 - 108 MHz, AM: 530 - 1710 kHz
Connector Type	HDMI
Amplifier	Yes
Video Inputs/Outputs	Composite video
Audio Inputs/Outputs	4 x Audio line-in, 2 x Audio line-out
Digital Audio Inputs	2 optical, 1 coaxial
