Yamaha HTR-6230 User Manual

37 En
English
INTRODUCTION
ADDITIONAL
INFORMATION APPENDIX
PREPARATION
BASIC
OPERATION
ADVANCED
OPERATION

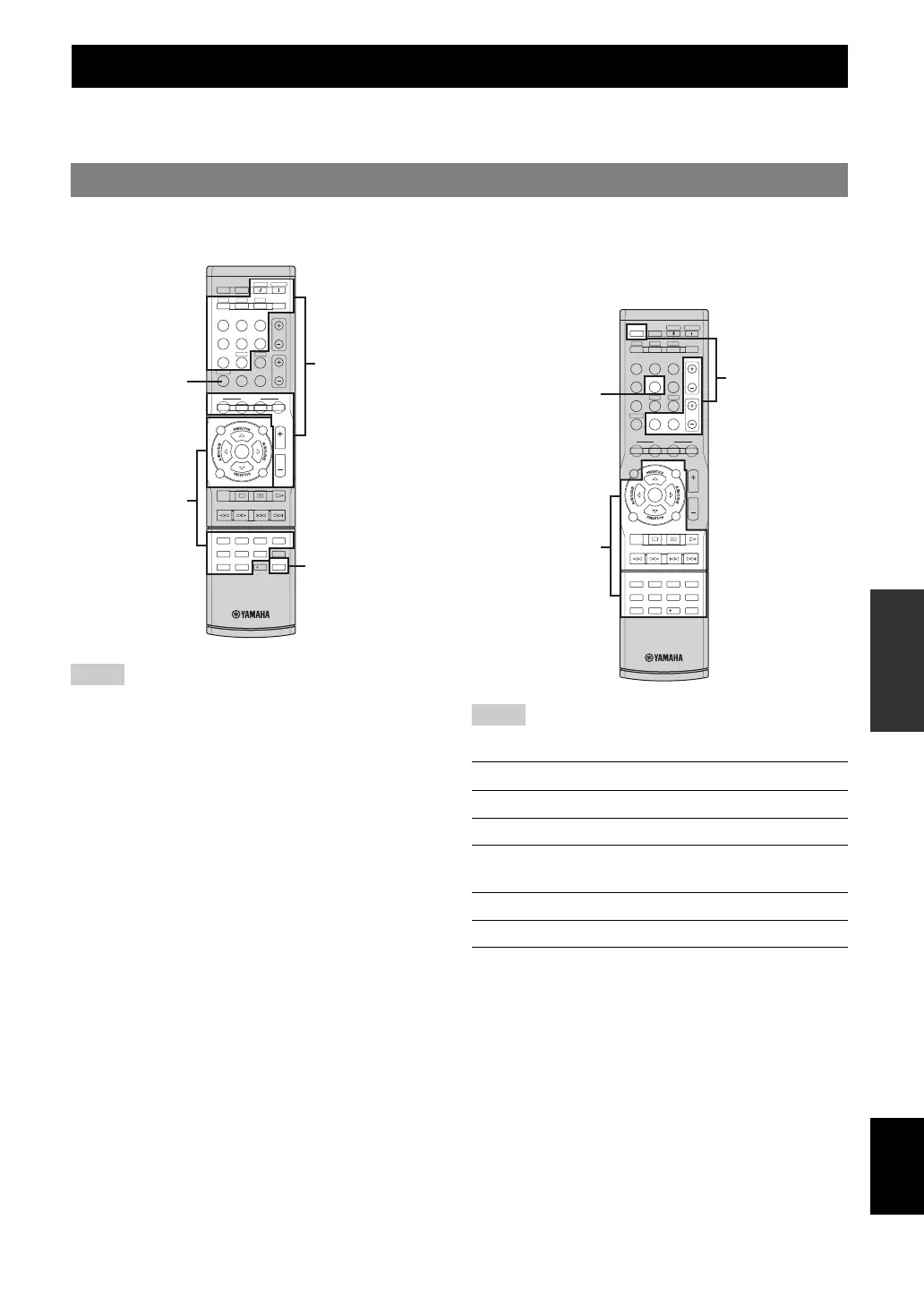

In addition to controlling this unit, the remote control can also operate other audiovisual components made by Yamaha
and other manufacturers. To control your TV or other components, you must set up the appropriate remote control code
for each input source (see page 39).
-
■ Controlling this unit
Press hAMP to control this unit.
Notes
*1 These buttons always control this unit.
*2 These buttons control this unit only when hAMP is pressed.
■ Controlling a TV
Press fDTV/CBL to control your TV. To control your
TV, set the appropriate remote control code for fDTV/
CBL (see page 39).
Notes
*1 These buttons always control your TV regardless of whether you press
fDTV/CBL or not.
*2 These buttons control your TV only when fDTV/CBL is pressed.
For details, see the “Digital TV/Cable TV” column on page 38.
y
• You can control more than one TV by setting the appropriate remote
control code for any input source selector buttons other than fDTV/
CBL. In such a case, you can control the buttons highlighted above (*1
and *2) when you press the input source selector button.
Remote control features
Controlling this unit, a TV, or other components
REC
SUR. DECODE
NIGHT STRAIGHT
MULTI CH IN AUDIO SEL SLEEP
ENHANCER
l PROG h
TV MUTE
TV INPUT
TV VOL
TV CH
POWER
AMP
STANDBY
POWER
MUTE
POWER
8
10
7
09
65
4321
ENT
DVD
V-AUX/DOCK
D E
DTV/CBL DVR
CD MD/CD-R TUNER
MENU
VOLUME
TITLE
ENTER
BAND LEVEL
DISPLAY
RETURN
AVTV
SCENE
4321
A B C
AMP
*2
*1
*2
Remote control Digital TV/Cable TV
TV POWER Turns on or off the power.
TV CH +/– Changes the channel number.
TV VOL +/– Increases or decreases the volume
level.
TV INPUT Changes the input source.
TV MUTE Mutes the audio output.
REC
SUR. DECODE
NIGHT STRAIGHT
MULTI CH IN AUDIO SEL SLEEP
ENHANCER
l PROG h
TV MUTE
TV INPUT
TV VOL
TV CH
POWER
AMP
STANDBY
POWER
MUTE
POWER
8
10
7
09
65
4321
ENT
DVD
V-AUX/DOCK
D E
DTV/CBL DVR
CD MD/CD-R TUNER
MENU
VOLUME
TITLE
ENTER
BAND LEVEL
DISPLAY
RETURN
AVTV
SCENE
4321
A B C
DTV/CBL
*2
*1

Yamaha HTR-6230 Specifications

General

Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192kHz/24-bit
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Surround System Class	7.1 channel
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	17
Tuner Bands	AM/FM
Preset Station Qty	40
HDMI Switching	Yes
Frequency Response	10 Hz - 100 kHz
Power Output	100 W per channel
Amplifier Output Details	100W per channel (8 ohms, 20Hz-20kHz, 0.09% THD)
Surround Sound Effects	Cinema DSP
Additional Features	iPod compatibility
Tuning Range	FM: 87.5 - 108 MHz, AM: 530 - 1710 kHz
Connector Type	HDMI
Amplifier	Yes
Video Inputs/Outputs	Composite video
Audio Inputs/Outputs	4 x Audio line-in, 2 x Audio line-out
Digital Audio Inputs	2 optical, 1 coaxial
