Yamaha HTR-6230 User Manual

14 En
Connections
Notes
• Be sure to make the same type of video connections as those made for your TV if the video conversion is disabled. For example, if you connected your
TV to the VIDEO MONITOR OUT jack of this unit, connect other components to the VIDEO jacks.
• Check the copyright laws in your country to record from CDs, radio, etc. Recording of copyrighted material may infringe copyright laws.
• To make a digital connection to a component other than the default one assigned to each DIGITAL INPUT or DIGITAL OUTPUT jack, configure the
“INPUT ASSIGN” setting (see page 34).
• Only analog audio signals output at AUDIO OUT (REC) jack can be recorded using the recording components. Therefore Digital signals input at the
DIGITAL INPUT jacks or analog signals input at MULTI CH INPUT jacks can be output at the analog AUDIO OUT (REC) jack for recording.
This unit is equipped with 6 additional input jacks
(FRONT L/R, SURROUND L/R, CENTER and
SUBWOOFER) for discrete multi-channel input from a
multi-format player, external decoder or sound processor.
Connect the output jacks on your multi-format player or
external decoder to the MULTI CH INPUT jacks. Be sure
to match the left and right output jacks to the left and right
input jacks for the front and surround channels.
Notes
• When you select the component connected to the MULTI CH INPUT
jacks as the input source (see page 34), this unit automatically turns off
the digital sound field processor, and you cannot select sound field
programs.
• This unit does not redirect signals input at the MULTI CH INPUT jacks
to accommodate for missing speakers. We recommend that you connect a
5.1-channel speaker system before using this feature.
• The source connected to the MULTI CH INPUT jacks on this unit cannot
be recorded.
This unit is equipped with the DOCK terminal on the rear
panel that allows you to connect a Yamaha iPod universal
dock (such as YDS-11, sold separately) or Bluetooth
Wireless Audio Receiver (such as YBA-10, sold
separately).
DVD recorder Video HDMI out* HDMI (DVR)*
Video out (composite) VIDEO (DVR IN)
Audio Audio out (analog)* AUDIO (IN (PLAY))*
Audio recording Audio in (analog)* AUDIO (OUT (REC))*
Video recording Video in (composite)* VIDEO (DVR OUT)*
CD player Audio Coaxial out* OPTICAL (CD)*
Audio Audio out (analog) AUDIO (CD)
MD or CD recorder Audio Audio out (analog)* AUDIO (IN (PLAY))*
Audio recording Audio in (analog)* AUDIO (OUT (REC))*
Component Signal type Jacks on component Jacks on this unit

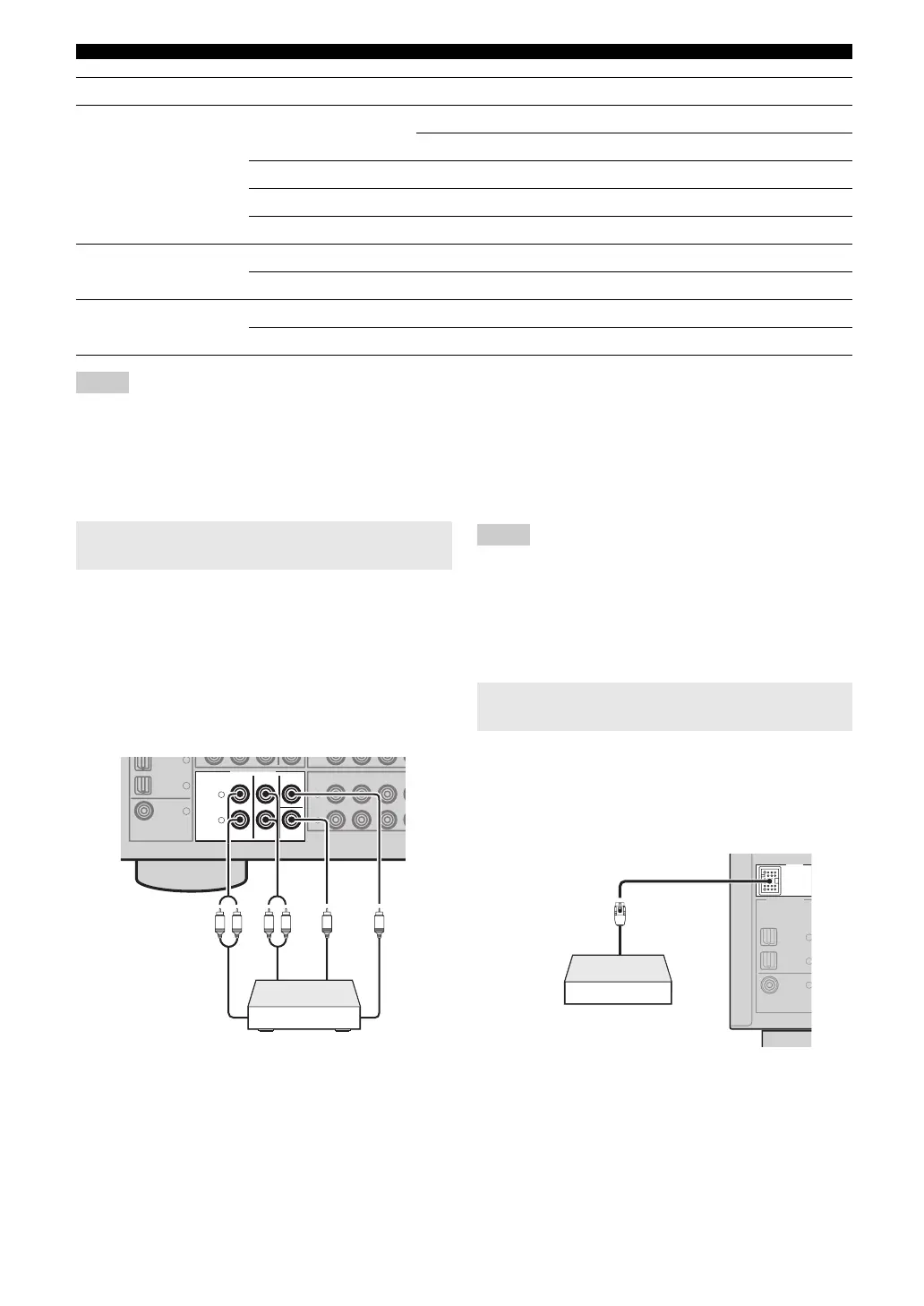

Connecting a multi-format player or an
external decoder
L
R
L
R
MULTI CH INPUT
1
2
3
DVD
COAXIAL
CD
DTV/
CBL
DVD
FRONT CENTER
SUBWOOFER
SURROUND
DTV/CBL DV
R
IN
L
R
L
R
Front out
Surround out
Subwoofer out
Center out
Multi-format player or
external decoder
Connecting a Yamaha iPod universal dock
or Bluetooth Wireless Audio Receiver
DOCK
DIGITAL INPUT
1
2
3
OPTICAL
COAXIAL
CD
DTV/
CBL
DVD
Yamaha iPod universal dock
or Bluetooth Wireless Audio Receiver

Yamaha HTR-6230 Specifications

General

Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192kHz/24-bit
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Surround System Class	7.1 channel
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	17
Tuner Bands	AM/FM
Preset Station Qty	40
HDMI Switching	Yes
Frequency Response	10 Hz - 100 kHz
Power Output	100 W per channel
Amplifier Output Details	100W per channel (8 ohms, 20Hz-20kHz, 0.09% THD)
Surround Sound Effects	Cinema DSP
Additional Features	iPod compatibility
Tuning Range	FM: 87.5 - 108 MHz, AM: 530 - 1710 kHz
Connector Type	HDMI
Amplifier	Yes
Video Inputs/Outputs	Composite video
Audio Inputs/Outputs	4 x Audio line-in, 2 x Audio line-out
Digital Audio Inputs	2 optical, 1 coaxial
