SPECIAL TOOLS
1-5
GEN
INFO
Steering C-spanner
S 1108
(90890-01268)
This tool is used to loosen and tighten the steering
ring nut.
Magneto puller
S 1109
(90890-01189)
This tool is used to remove the AC magneto rotor
with the help of magneto holder.
Rotor holder tool
S 1113
(90890-01235)
This tool is used to hold the AC magneto rotor
when removing or installing the AC magneto rotor
nut.
Adapter for valve spring compressor
S 1114
(90890-04108)
This adapter is an attachment of YSST-603. This
tool is used when removing or installing the valve
and the valve spring.
Engine stand
S 1117
Bolt & Bush for engine stand
S 1117A
This tool is used to hold the engine.
Funnel with long tail
S 1119
This funnel is used to fill engine oil in crankcase.
Crankshaft installer
S 1120
Crankshaft installer attachment
S 1120A
These tools are used for installing the crankshaft.

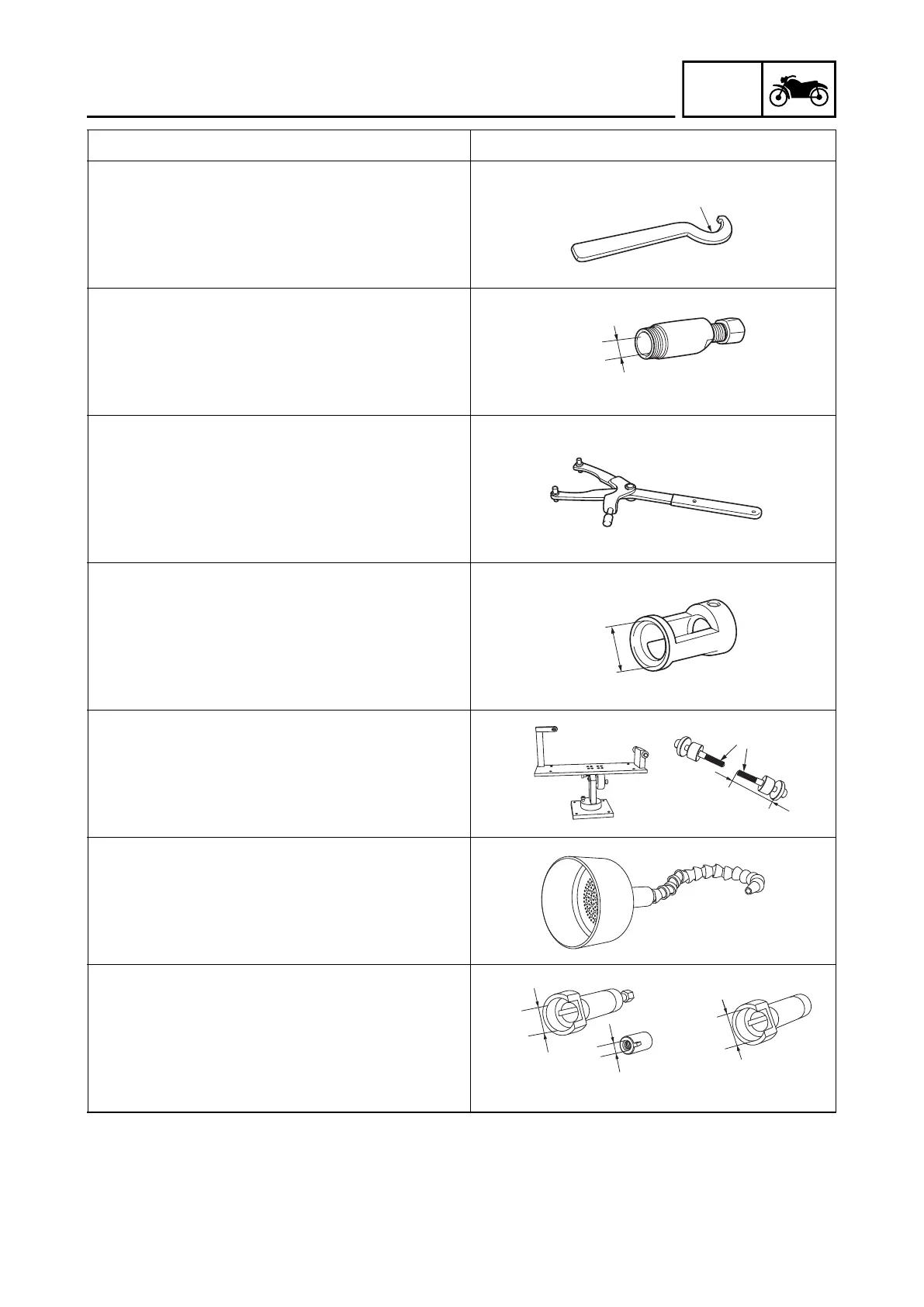

Tool name/Tool No. Illustration
R30
20 mm
Ø20.5
S 1117 S 1117A
M10
70 mm
45.5 mm
M12 x P1.5
46 mm
S 1120 S 1120A
