SPECIAL TOOLS
1-4
EAS00027
SPECIAL TOOLS
The following special tools are necessary for complete and accurate tune-up and assembly. Use only
the appropriate special tools as this will help prevent damage caused by the use of inappropriate tools
or improvised techniques. Special tools, part numbers or both may differ depending on the country.
When placing an order, refer to the list provided below to avoid any mistakes.

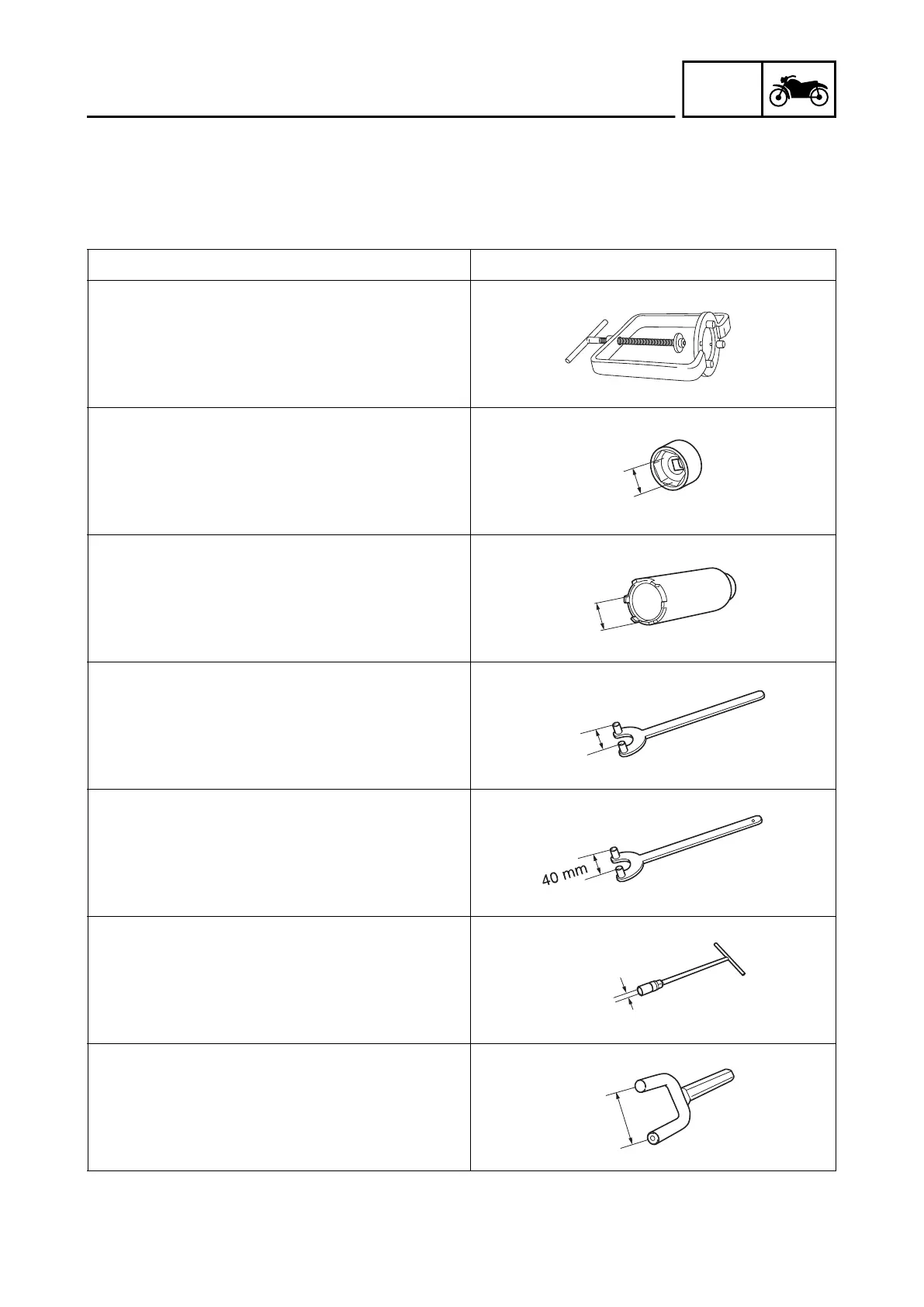

Tool name/Tool No. Illustration
Clutch spring compressor
S 1101
(90890-01337)
This tool is used for disassembly and assembly the
secondary sheave.
Clutch carrier nut-socket (ø39 mm)
S 1102
(90890-01493)
This tool is used to loosen and tighten the clutch
carrier locknut of the secondary sheave.
Steering nut socket
S 1103
(90890-01403)
This tool is used to loosen and tighten the steering
ring nut.
Clutch housing holder
S 1104
(90890-01701)
This tool is used to hold the clutch housing while
loosening and tightening clutch housing nut.
Cam sprocket holder
S 1105
(90890-04143)
This tool is used for removing or installing the cam-
shaft sprocket.
Spark plug spanner
S 1106
This tool is used for removing or installing the spark
plug.
Kick spring installer
S 1107
This tool is used for installing the kickstarter spring
torsion.
