GENERAL CHASSIS
3-1
GENERAL CHASSIS

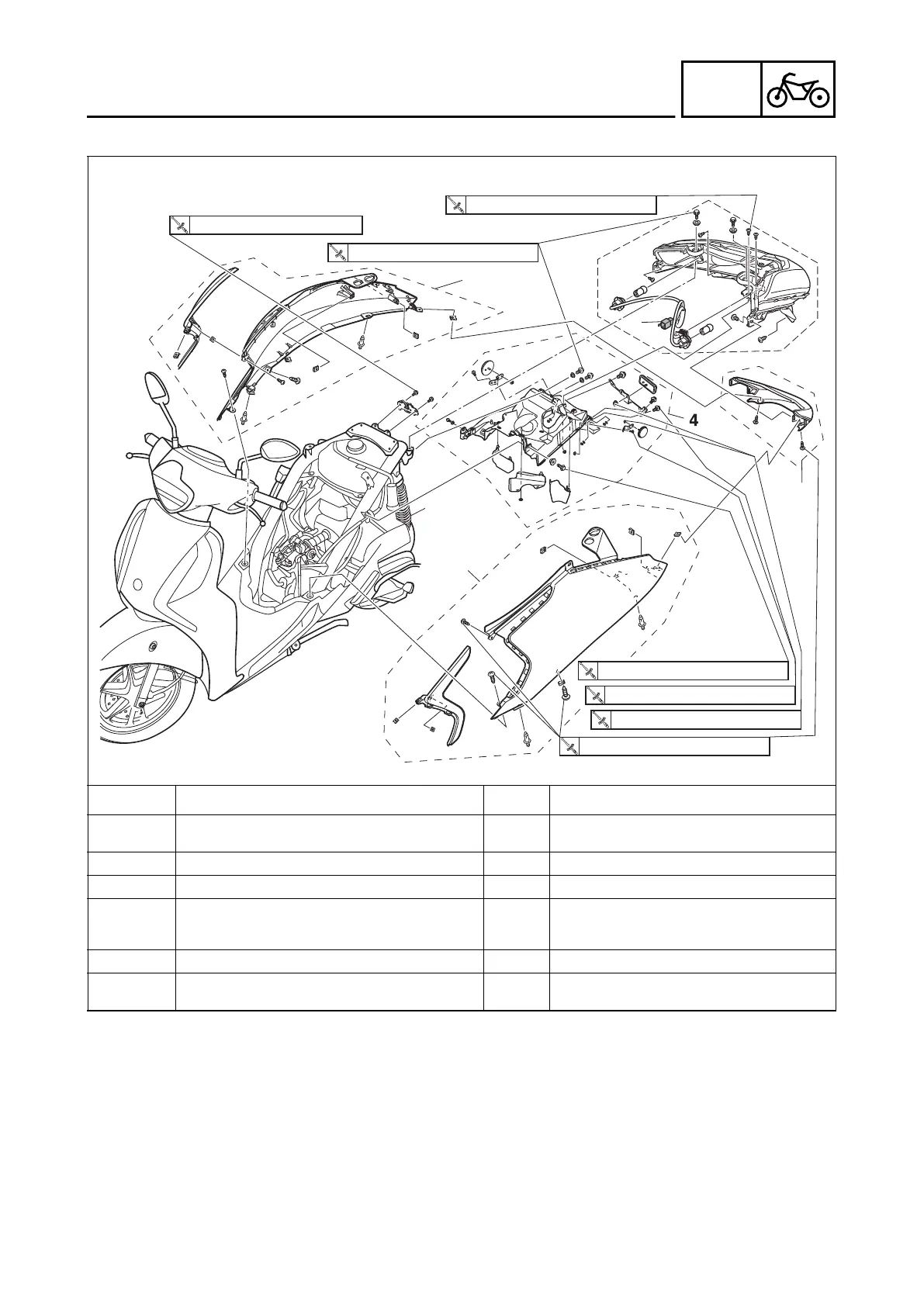

Removing the rear side covers and rear fender (For disc model)
Order Job/Parts to remove Q’ty Remarks
Seat/storage compartment, center cover, rear
upper cover
Refer to “GENERAL CHASSIS” in base
service manual B7J-F8197-E0 on page 4-3.
1 Tail/brake light coupler 1 Disconnect.
2 Rear side cover assembly 1
3 Rear shock absorber assembly 1
Refer to “REAR SHOCK ABSORBER” in
base service manual B7J-F8197-E0 on
page 4-70.
4 Rear fender 1
For installation, reverse the removal proce-
dure.
3
2
1
2
2
12 N·m (1.2 kgf·m, 8.9 lb·ft)
12 N·m (1.2 kgf·m, 8.9 lb·ft)
3.8 N·m (0.38 kgf·m, 2.8 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
1.5 N·m (0.15 kgf·m, 1.1 lb·ft)
