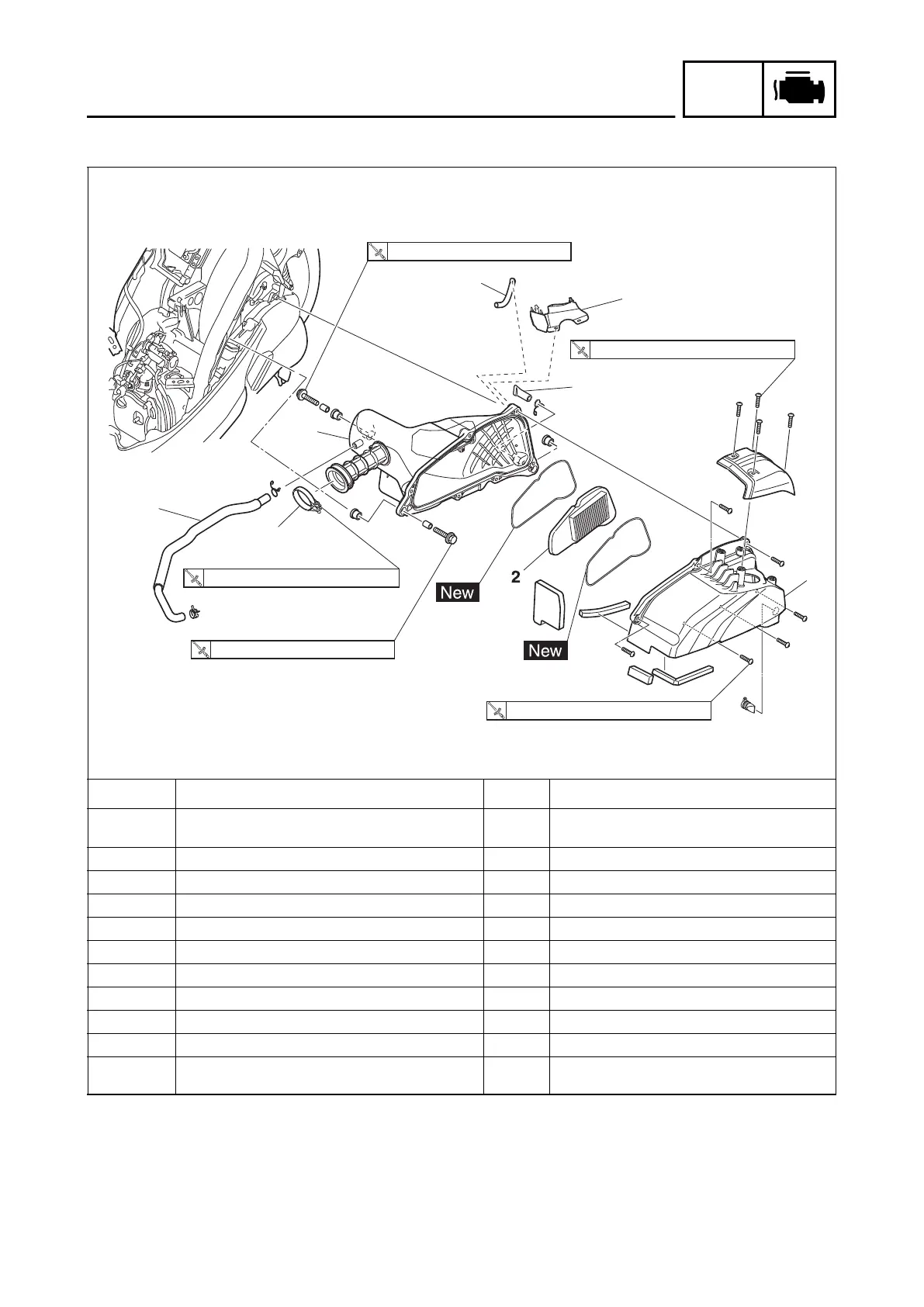

AIR FILTER CASE
Removing the air filter case
Order Job/Parts to remove Q’ty Remarks
Seat/storage compartment
Refer to “GENERAL CHASSIS” in base
service manual B7J-F8197-E0 on page 4-3.
Throttle body Refer to “THROTTLE BODY” on page 5-5.
1 Air filter case cover 1
2 Air filter element 1
3 Air filter case joint clamp screw 1
4 Cylinder head breather hose 1
5 Flap 1 Unhook from air filter case
6 Breather hose (CVT case) 1 Disconnect.
7 Air filter case 1
8 Air filter check hose 1
For installation, reverse the removal proce-
dure.
1.3 13 0.95N·m (0. kgf·m, lb·ft)
1.3 13 0.95N·m (0. kgf·m, lb·ft)
10 1.0 7.4N·m ( kgf·m, lb·ft)
10 1.0 7.4N·m ( kgf·m, lb·ft)
2.5 0.25 1.8N·m ( kgf·m, lb·ft)2.5 0.25 1.8N·m ( kgf·m, lb·ft)
To CVT
To Cylinder head
4
3
7
6
5
8
1
