THROTTLE BODY
5-5
FI
EAS20070
THROTTLE BODY

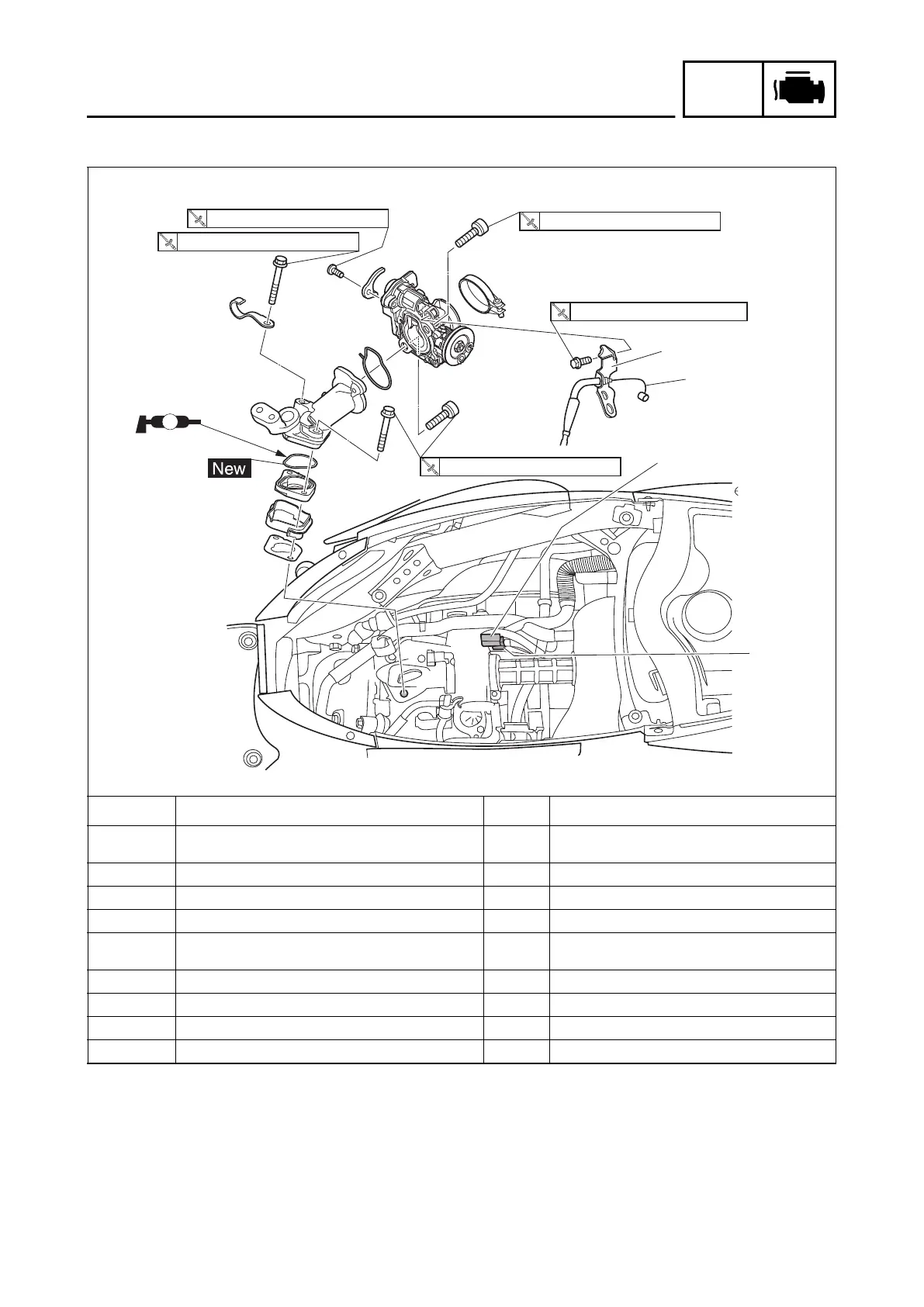

Removing the throttle body
Order Job/Parts to remove Q’ty Remarks
Seat/storage compartment
Refer to “GENERAL CHASSIS” in base
service manual B7J-F8197-E0 on page 4-3.
Fuel injector Refer to “FUEL INJECTOR” on page 5-1.
Air filter case joint screw Refer to “AIR FILTER CASE” on page 5-4.
Cylinder head breather hose from holder Refer to “AIR FILTER CASE” on page 5-4.
Hose (Throttle body to check valve)
Refer to “FUEL TANK” in base service
manual B7J-F8197-E0 on page 6-3.
1 ISC (Idle Speed Control) unit coupler 1 Disconnect.
2 Throttle body sensor assembly coupler 1 Disconnect.
3 Throttle cable holder 1
4 Throttle cable 1
10 1.0 7.4N·m ( kgf·m, lb·ft)
10 1.0 7.4N·m ( kgf·m, lb·ft)
50.5 3.7N·m ( kgf·m, lb·ft)
10 1.0 7.4N·m ( kgf·m, lb·ft)
4
3
1
2
7 N·m (0.7 kgf·m, 5.2 lb·ft)
LS
B7JF8197E1.book Page 5 Tuesday, June 29, 2021 2:28 PM
