THROTTLE BODY
5-6

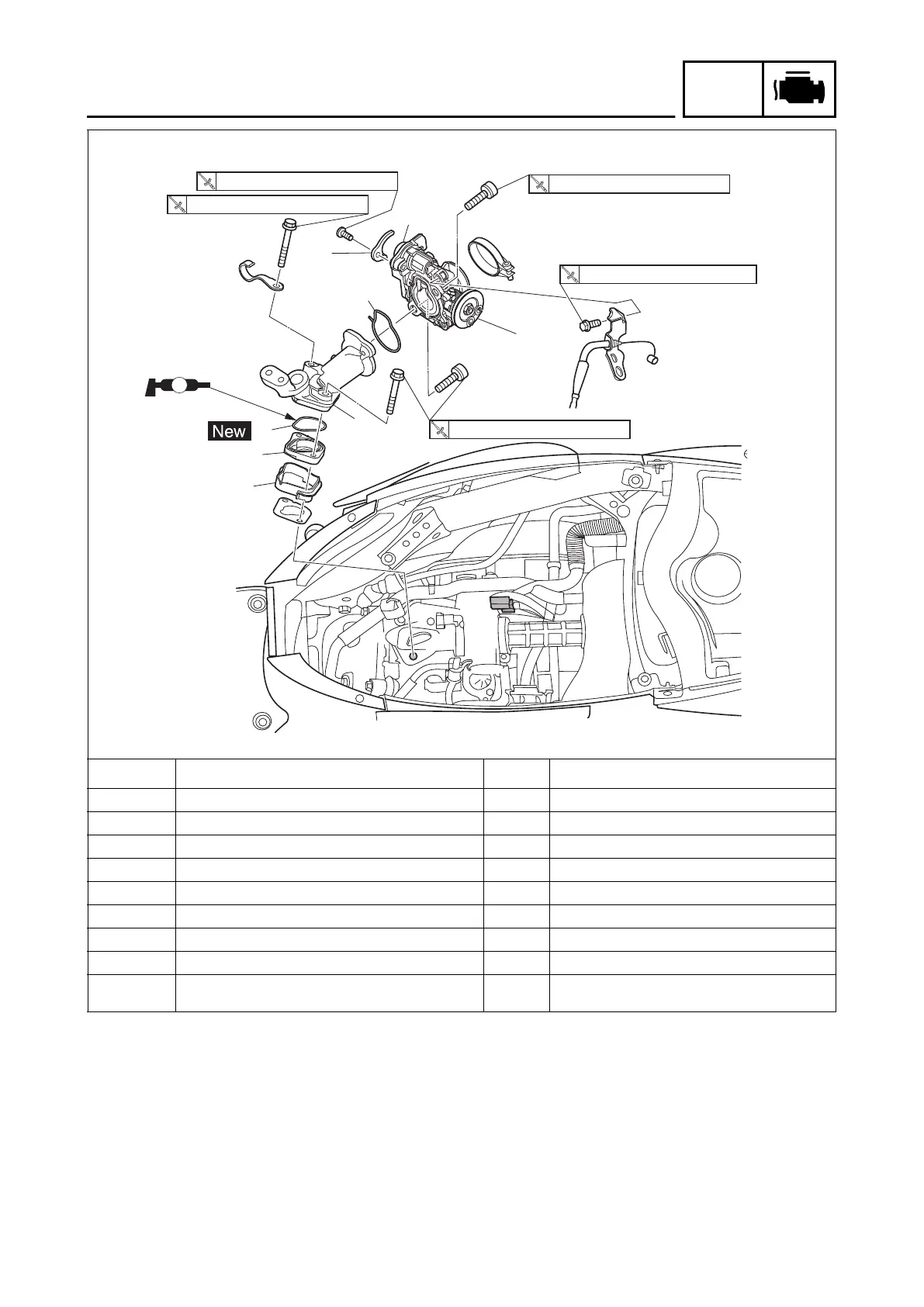

Removing the throttle body
Order Job/Parts to remove Q’ty Remarks
5 Intake manifold 1
6O-ring 1
7 Joint (gasket) 1
8 Intake manifold gasket 1
9 Throttle body 1
10 O-ring 1
11 ISC (Idle Speed Control) unit holder 1
12 ISC (Idle Speed Control) unit 1
For installation, reverse the removal proce-
dure.
10 1.0 7.4N·m ( kgf·m, lb·ft)
50.5 3.7N·m ( kgf·m, lb·ft)
10 1.0 7.4N·m ( kgf·m, lb·ft)
9
5
6
7
8
12
11
10
7 N·m (0.7 kgf·m, 5.2 lb·ft)
10 1.0 7.4N·m ( kgf·m, lb·ft)
LS
B7JF8197E1.book Page 6 Tuesday, June 29, 2021 2:28 PM
