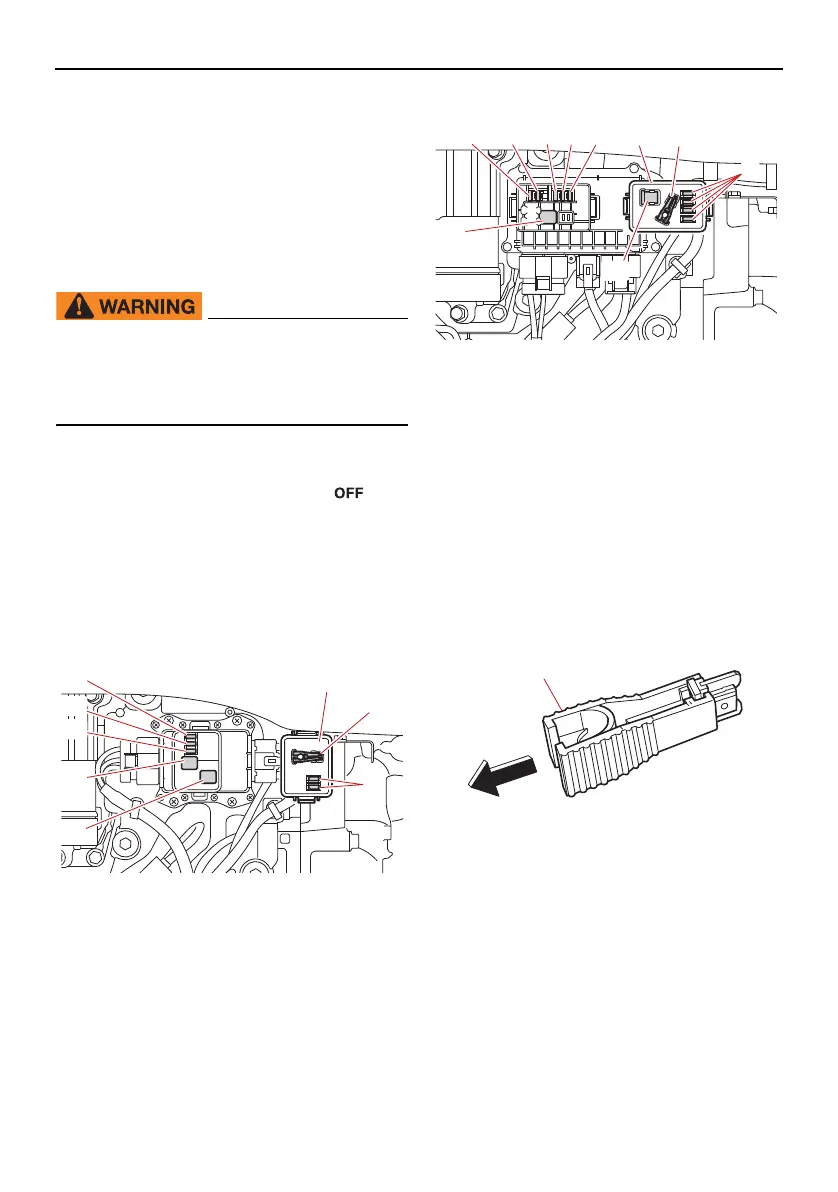

Replacing fuse
EWM00632
Substituting an incorrect fuse or a piece of
wire could allow excessive current flow.
This could cause electric system damage
and a fire hazard.
If a fuse has blown, replace the fuse accord-
ing to the following procedure.
(1) Turn the main switch to the “ ” (off)
position.
(2) Remove the fuse box cover.
(3) Remove the fuse with a fuse puller, and
then replace it with a spare one of the
proper amperage.
F115, LF115
F130, LF130
Consult your Yamaha dealer if the new fuse
immediately blows again.
1. Fuse box cover
2. Fuse puller
3. Engine control unit / ignition coil / electric
fuel pump / fuel injector / vapor shut-off
valve fuse (20 A)
4. Main switch / PTT switch fuse (20 A)
5. Starter relay fuse (30 A)
6. Engine main fuse (50 A)
7. Spare engine main fuse (50 A)
8. Spare fuse (20 A, 30 A)
6
7
1
2
8
4
3
5
1. Fuse box cover
2. Fuse puller
3. Main switch / PTT switch fuse (20 A)
4. Electric throttle valve fuse (10 A)
5. Fuel pump fuse (15 A)
6. Starter relay fuse (30 A)
7. Ignition coil / Fuel injector / Variable cam-
shaft timing / ECM (Electronic Control Mod-
ule) fuse (30 A)
8. Engine main fuse (50 A)
9. Spare fuse (10 A, 15 A, 20 A, 30 A)
10.Spare engine main fuse (50 A)
1. Fuse puller
2
9
17654
3
8
10
ZMU08320
