Yamaha LF130 - Procedure for Tilting down

Operation
73
EMU42702
Procedure for tilting down

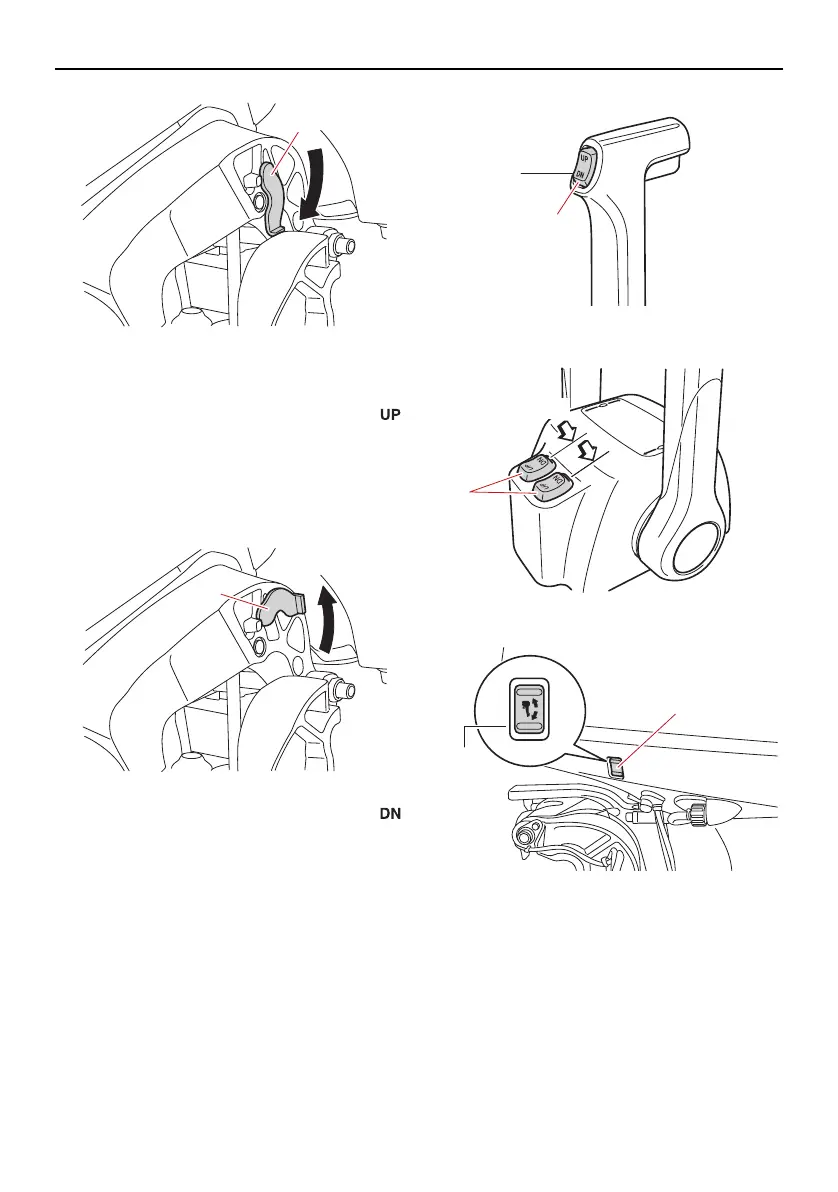

(1) Push the power trim and tilt switch “ ”
(up) until the outboard motor is support-
ed by the tilt rod and the tilt support lever
becomes free.
(2) Release the tilt support lever.
(3) Push the power trim and tilt switch “ ”
(down) to lower the outboard motor to
the desired position.
