Instruments and indicators
41
The speed & fuel meter unit is available in
round and square types. Check your speed &
fuel meter unit type.
After the main switch is first turned to the “ ”
(on) position, all of the displays come on as a
test. After a few seconds, the unit will change
to normal operation.
For more information, see the operation man-
ual for the meters.
EMU41042
Command Link Multifunction
Speedometer
The speedometer unit shows the boat speed
and has functions of fuel meter and system
voltage display. The chosen display is select-
ed using the “ ” (set) and “ ” (mode)
buttons as described in this section. In addi-
tion, the speedometer can show the desired
unit of measurement such as km/h, mph, or
knots. If the speed sensor is installed, the unit
can also show the trip display. However, even
if the speed sensor is not installed, the trip dis-
play can be shown by connecting an optional
sensor to the unit. In addition, if optional sen-
sors are connected to the unit, water surface

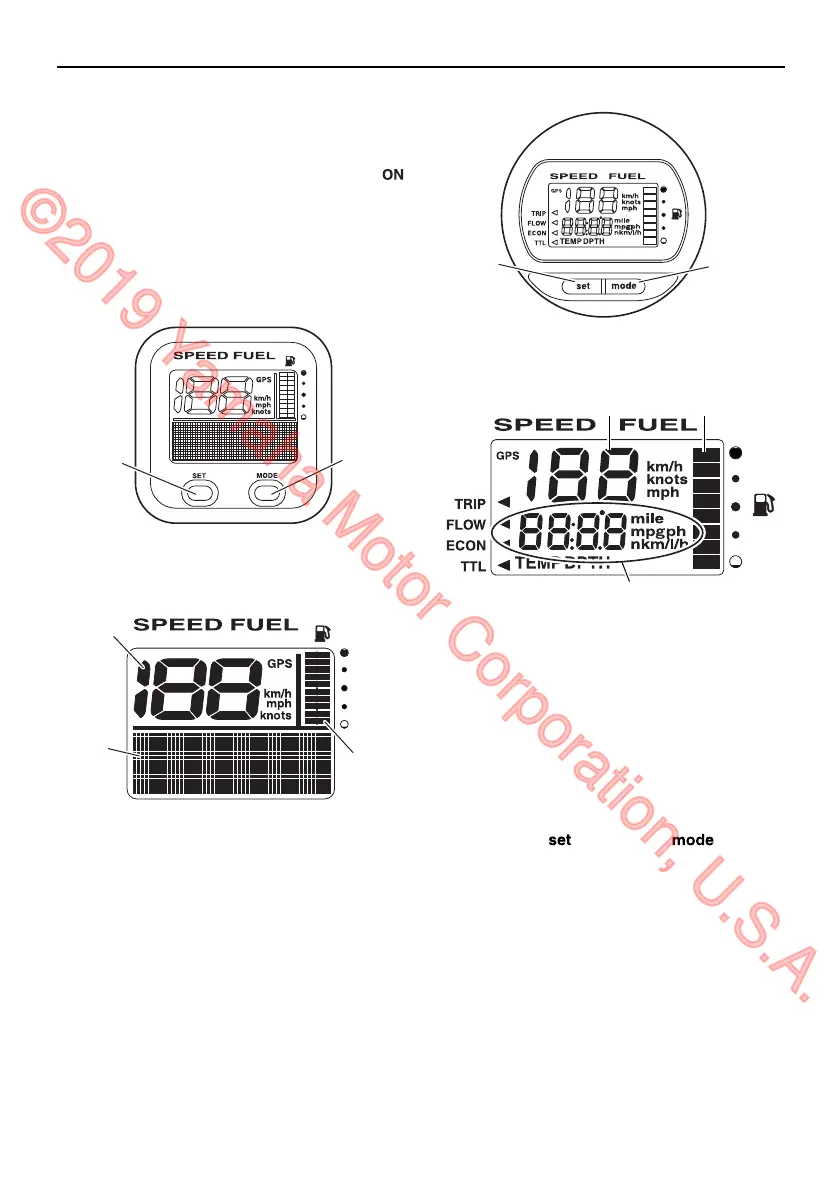

1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
