temperature display, depth display, and clock
will also be available. For the optional sen-
sors, consult your Yamaha dealer.
After the main switch is first turned to the “ ”
(on) position, all of the displays come on as a
test. After a few seconds, the unit will change
to normal operation.
For more information, see the operation man-
ual for the meters.
EMU41022
Command Link Multifunction
Fuel Management Meter
The fuel management meter has the func-
tions of fuel flow meter, total consumption dis-
play, fuel economy display, and remaining
fuel display. The chosen display is selected
using the “ ” (set) and “ ” (mode) but-
tons as described in this section.
After the main switch is first turned to the “ ”
(on) position, all of the displays come on as a
test. After a few seconds, the unit will change
to normal operation.
For more information, see the operation man-
ual for the meters.

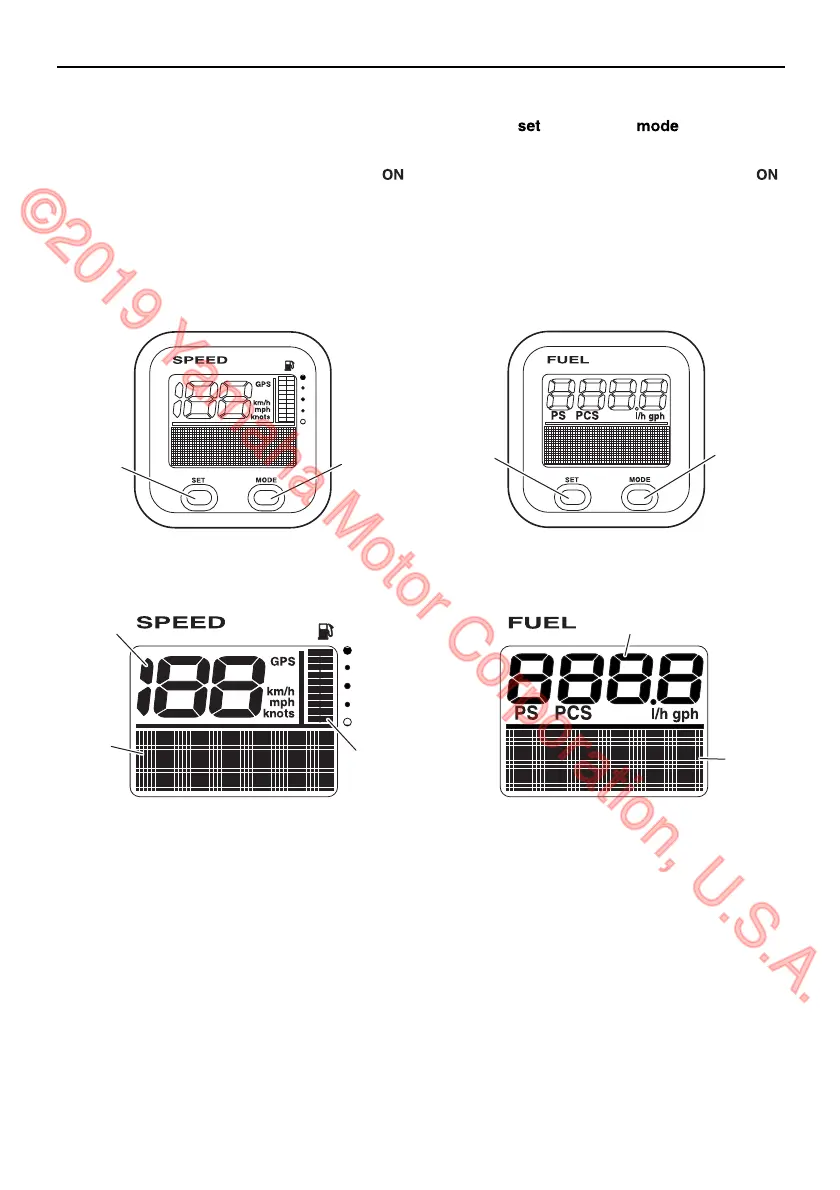

1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
2
1
ZMU05436
1
2
3
ZMU05437
1. Set button
2. Mode button
1. Fuel flow meter
2. Multifunction display
2
1
ZMU05438
1
2
ZMU05439
