Maintenance
83
NOTICE
ECM01124
Do not reverse the battery cables. Other-
wise, the electrical parts could be dam-
aged.
1. Make sure the main switch (on applicable
models) is “ ” (off) before working on
the battery.
2. Connect the red battery cable to the
POSITIVE (+) terminal first. Then con-
nect the black battery cable to the NEGA-
TIVE (-) terminal.
3. The electrical contacts of the battery and
cables must be clean and properly con-
nected, or the battery will not start the en-
gine.

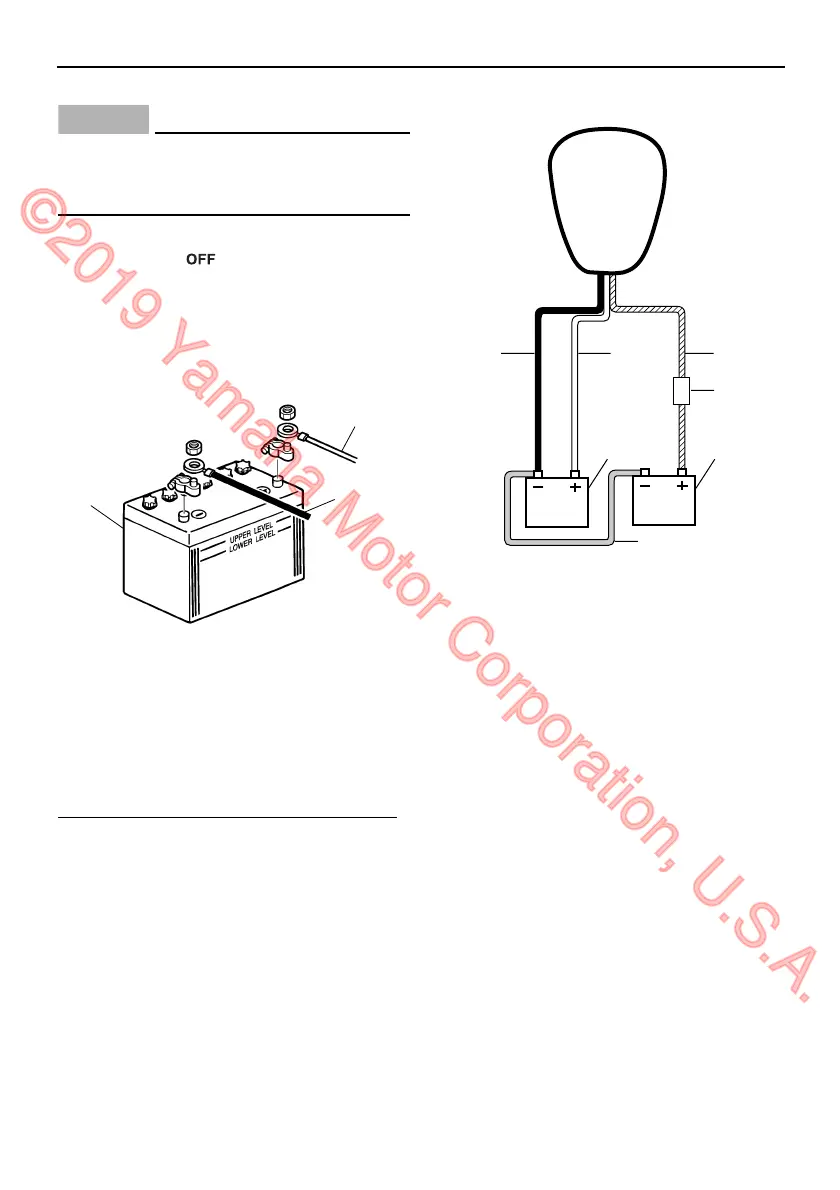

Connecting an accessory battery (optional)
If connecting an accessory battery, consult
your Yamaha dealer about correct wiring. For
the fuse size, see ABYC (E-11).
Single engine
1. Red cable
2. Black cable
3. Battery
ZMU01811
1
2
3
1. Isolator lead with circuit protection
2. Red cable
3. Black cable
4. Fuse
5. Battery for accessories
6. Battery for starting
7. Negative connecting cable
2 1
7
6 5
3
4
ZMU05939
