Yamaha Professional Audio M7CL StageMix V5 User Guide
Page 10
3.3.2 Configure StageMix to Work with an M7CL Console

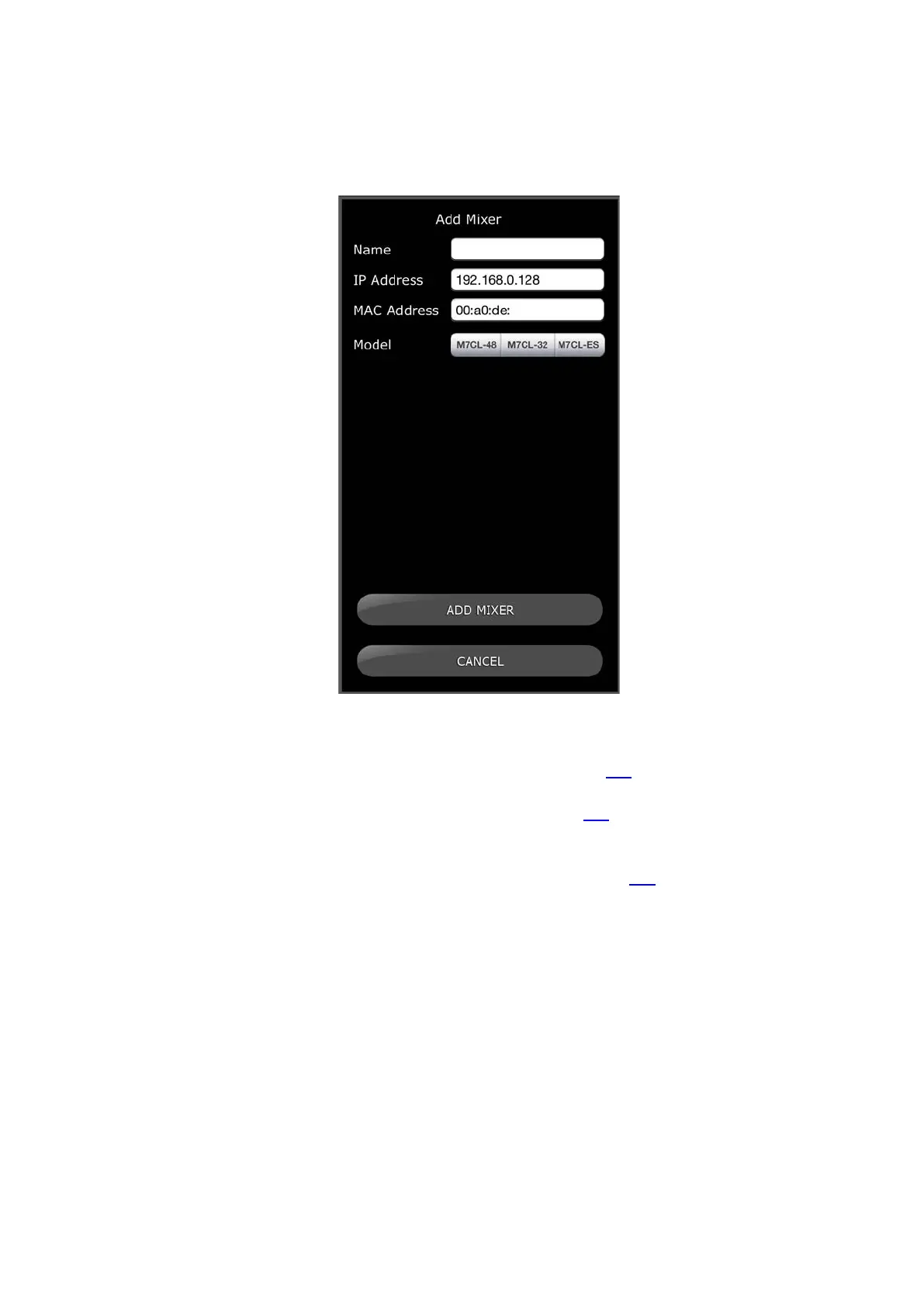

i. Press [ADD MIXER] to open the following screen:
ii. Tap on the blank Name field and enter a name for your M7CL console
using the iPad’s onscreen keyboard.
iii. Enter the M7CL console’s IP address noted in 3.1. The default IP
Address may not need to be changed but confirm this in the Network
Setup screen of the M7CL console (refer to 3.1). If you need to modify
the IP Address in StageMix, make sure you include the dots between
the sets of numbers (as shown above).
iv. Enter the M7CL console’s MAC address noted in 3.1. When entering
the MAC Address, the colons between sets of characters will be
automatically added by StageMix.
v. Select the Model of M7CL console.
vi. Press the [ADD MIXER] button at the bottom of the screen.
