PERIODIC MAINTENANCE AND ADJUSTMENT
7-9
1
2
3
4
5
6
7
8
9

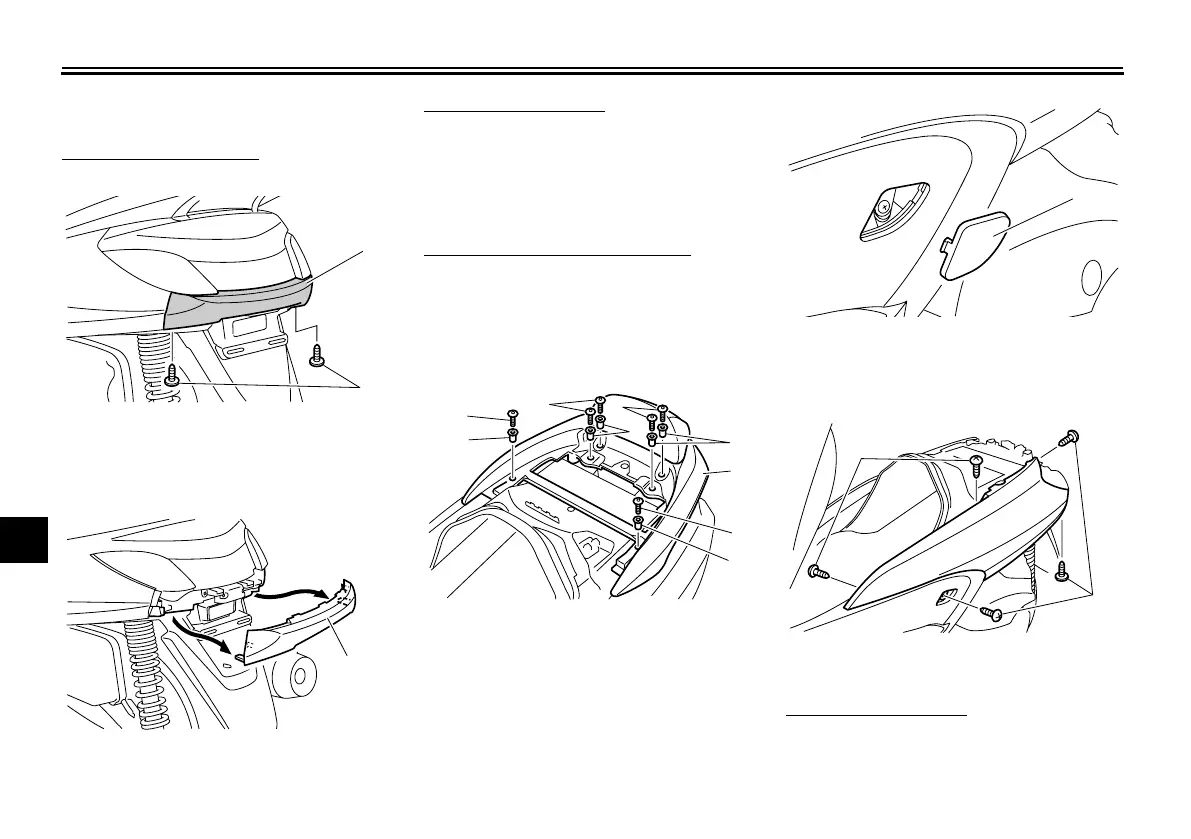

Cowling B
To remove the cowling
1. Remove the screws.
2. Remove the cowling as shown.
To install the cowling
Place the cowling in the original posi-
tion, and then install the screws.
Cowlings C and D
To remove one of the cowlings
1. Remove cowlings A and B.
2. Remove the passenger seat. (See
page 4-12.)
3. Remove the grab bar by removing
the grab bar bolts and collars.
4. Remove the screw access cover
by pulling it off.
5. Remove the screws, and then pull
the cowling off.
To install the cowling
1. Place the cowling in the original po-
sition, and then install the screws.
1. Cowling B
2. Screw
1. Cowling B
1
2
1
1. Grab bar bolt
2. Collar
3. Grab bar
1
1
3
1
1
2
2
2
2
1. Screw access cover
1. Screw
✼✦✧✯✪✥✲✣ ✬
