PERIODIC MAINTENANCE AND ADJUSTMENT
7-10
2
3
4
5
6
7
8
9
2. Install the screw access cover by
placing it in its original position.
3. Install the grab bar by installing the
collars and grab bar bolts.
4. Install the passenger seat.
5. Install cowlings A and B.

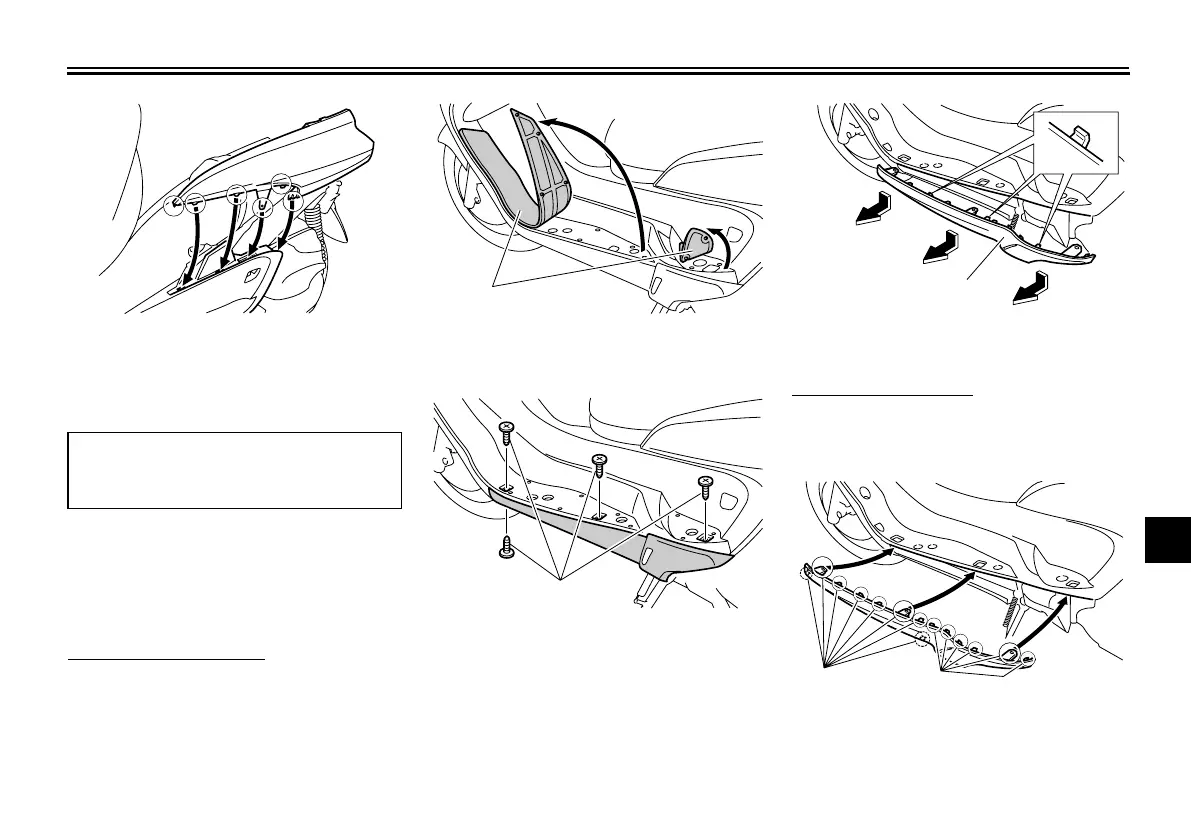

Cowling E
To remove the cowling
1. Pull up the left floorboard mats as
shown.
2. Remove the cowling screws.
3. Pull the cowling down slightly, and
then pull it outward as shown.
To install the cowling
1. Insert the projections on the cowl-
ing into the slots as shown, and
then install the screws.
2. Place the left floorboard mats in
Tightening torque:
Grab bar bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1. Left floorboard mat
1. Screw
1
1
1. Cowling E
1. Projection
✼✦✧✯✪✥✲✣ ✤✣
