Yamaha MOTIF XS6 Service Manual

12
11
10
9
8
7
6
5
4
3
2
1
ABCDEFGH I JKLMNOPQ
12
11
10
9
8
7
6
5
4
3
2
1
ABCDEFGH I JKLMNOPQ
MOTIF XS6
MOTIF XS6
MOTIF XS6

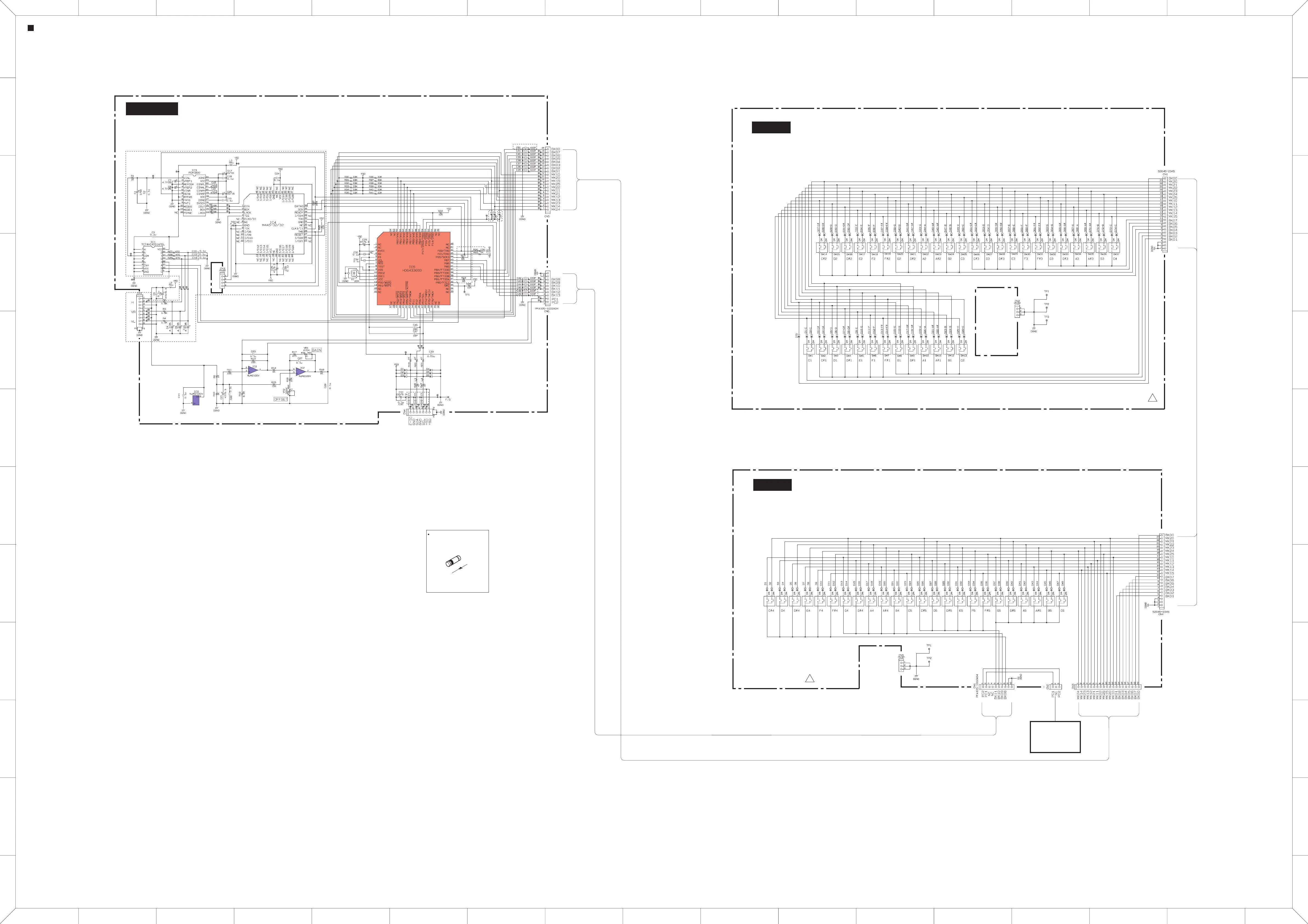

MOTIF XS6 OVERALL CIRCUIT DIAGRAM 5/11 (EMKS-FD, MK61L, MKHD)
<Page 6>
Note : See parts list for details of circuit board component parts.
注： シートの部品詳細はパーツリストをご参照ください。
EMKS-FD
28CC1-2000001485
Not installed
Not installed
Not installed
Not installed
Not installed
MK61L
28CC1-2000001484 1
28CC1-2000001483 1
After touch
sensor
to DM-CN603
<Page 2 DM1/4 L-4>
CPU
OP AMP
(C1 - C4)
(C#4 - C6)
MKH-D
RLS-73 TE-11 (VV925900)
DIODE
EMKS-FD: D0001-0006,0008
1: ANODE
2: CATHODE
1
2
Not
connected
Not
connected
Not installed

Yamaha MOTIF XS6 Specifications

General

Polyphony	128 notes
Wave ROM	355MB (when converted to 16-bit linear format)
Type	Workstation Synthesizer
Keyboard	61 keys
Voices	1, 024 normal voices + 64 drum kits
Effects	Reverb x 9 types, Chorus x 22 types
Sequencer	16 tracks
Display	320 x 240 dot, backlit LCD
Connectors	MIDI IN/OUT/THRU, USB TO HOST, USB TO DEVICE
Storage	USB storage device
