Instrument and control functions
4-12
4
EAU12823
Clutch lever
To disengage the drivetrain from the
engine, such as when shifting gears,
pull the clutch lever toward to the han-
dlebar. Release the lever to engage the
clutch and transmit power to the rear
wheel.
The lever should be pulled rapidly and
released slowly for smooth shifting.
(See page 6-3.)
EAU12876
Shift pedal
The shift pedal is located on the left
side of the motorcycle. To shift the
transmission to a higher gear, move
the shift pedal up. To shift the trans-
mission to a lower gear, move the shift
pedal down. (See page 6-3.)

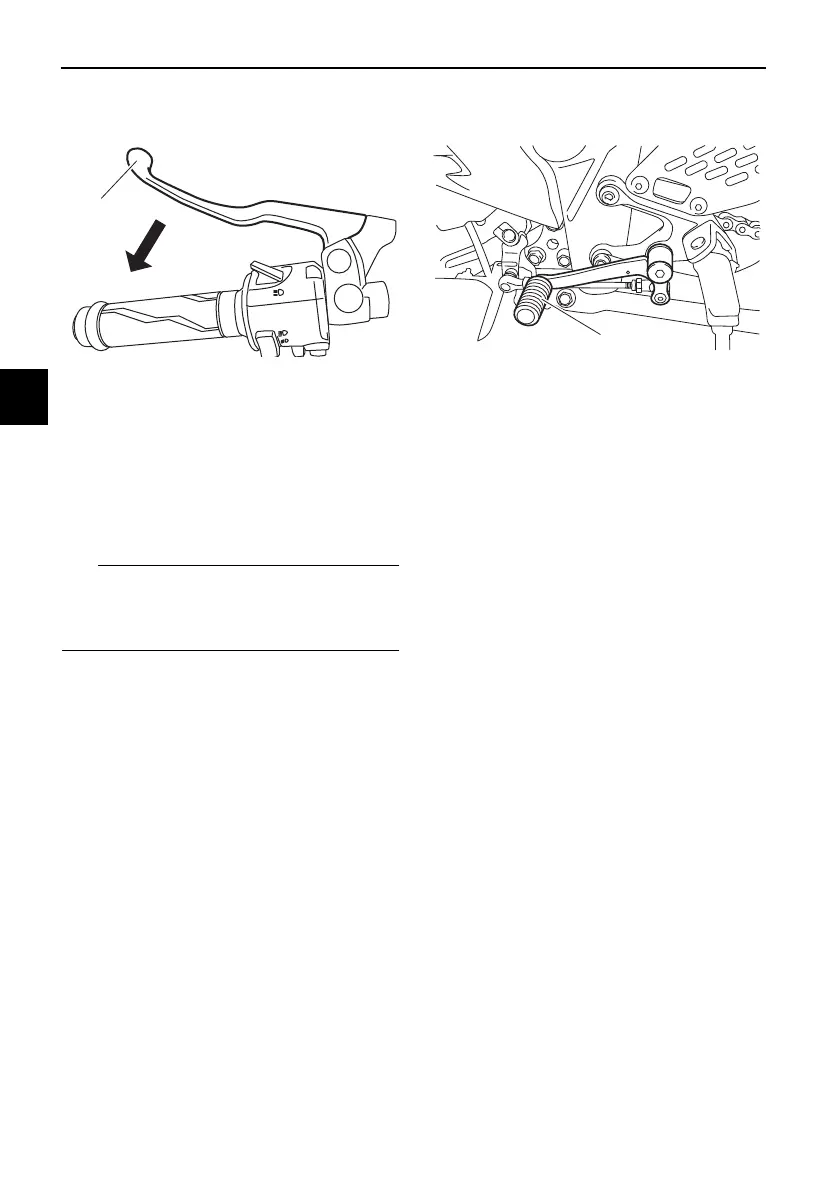

1. Clutch lever
1. Shift pedal
1
