Instrument and control functions
4-4
4
EAU87090

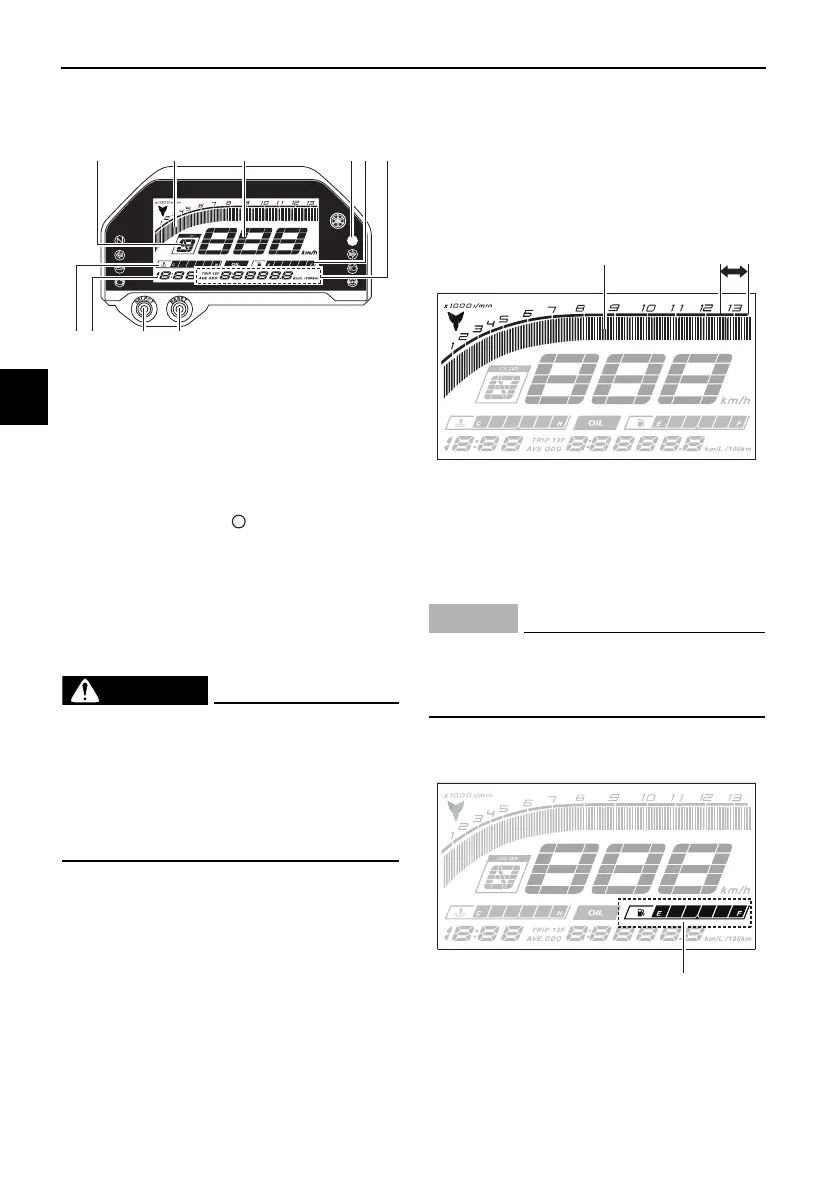

Multi-function meter unit
The multi-function meter unit is also
equipped with a shift indicator light
control mode.
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
EAU87140
Switching the display units
The display units can be switched be-
tween kilometers and miles. To switch
the display units, push the “SELECT”
button until the display units change.
EAU86831
Speedometer
The speedometer shows the vehicle’s
traveling speed.
EAU87170
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
ECA10032
Do not operate the engine in the ta-
chometer red zone.
Red zone: 12500 r/min and above
EAU86841
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from
1. “RESET” button
2. “SELECT” button
3. Clock
4. Coolant temperature meter
5. Transmission gear display
6. Tachometer
7. Speedometer
8. Shift indicator light “ ”
9. Fuel meter
10.Multi-function display
1. Tachometer
2. Tachometer red zone
1. Fuel meter
