Seats
Passenger seat

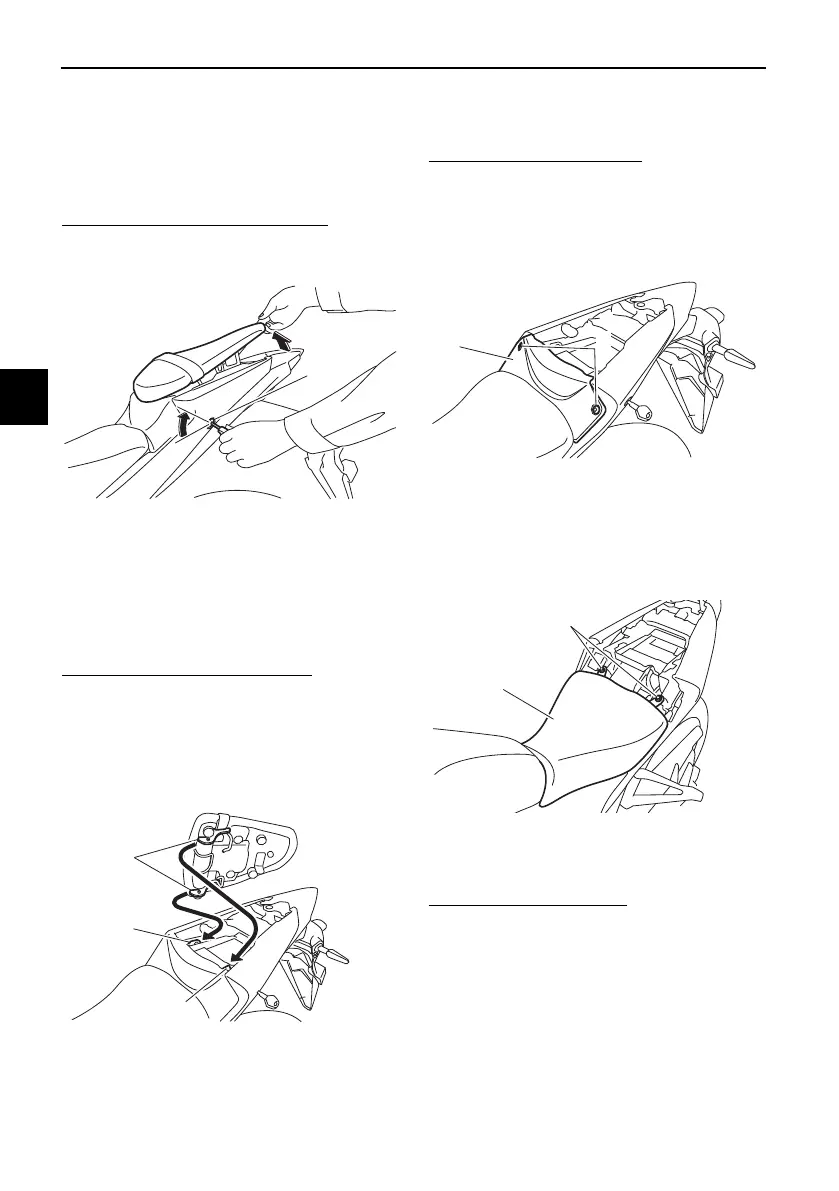

To remove the passenger seat
1. Insert the key into the seat lock,
and then turn it clockwise.
2. While holding the key in that posi-
tion, lift the rear of the passenger
seat and pull it backward.
To install the passenger seat
1. Insert the projections on the front
of the passenger seat into the seat
holders as shown, and then push
the rear of the seat down to lock it
in place.
2. Remove the key.
Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Remove the center cover by re-
moving the screws.
3. Remove the rider seat by remov-
ing the bolts. Lift the rear of the
rider seat and pull it backward.
To install the rider seat
1. Insert the projection on the front of
the rider seat into the seat holder
as shown, and then place the seat
in the original position.
1. Passenger seat lock
2. Unlock.
1. Projection
2. Seat holder
2
1
1
2
2
1. Center cover
2. Screw
1. Rider seat
2. Bolt
1
2
1
2
