Indicator lights and warning
lights
EAU11032
Turn signal indicator lights “ ”
and “”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU11061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU85091
Oil pressure warning light “ ”
This warning light comes on when the
engine oil pressure is low.

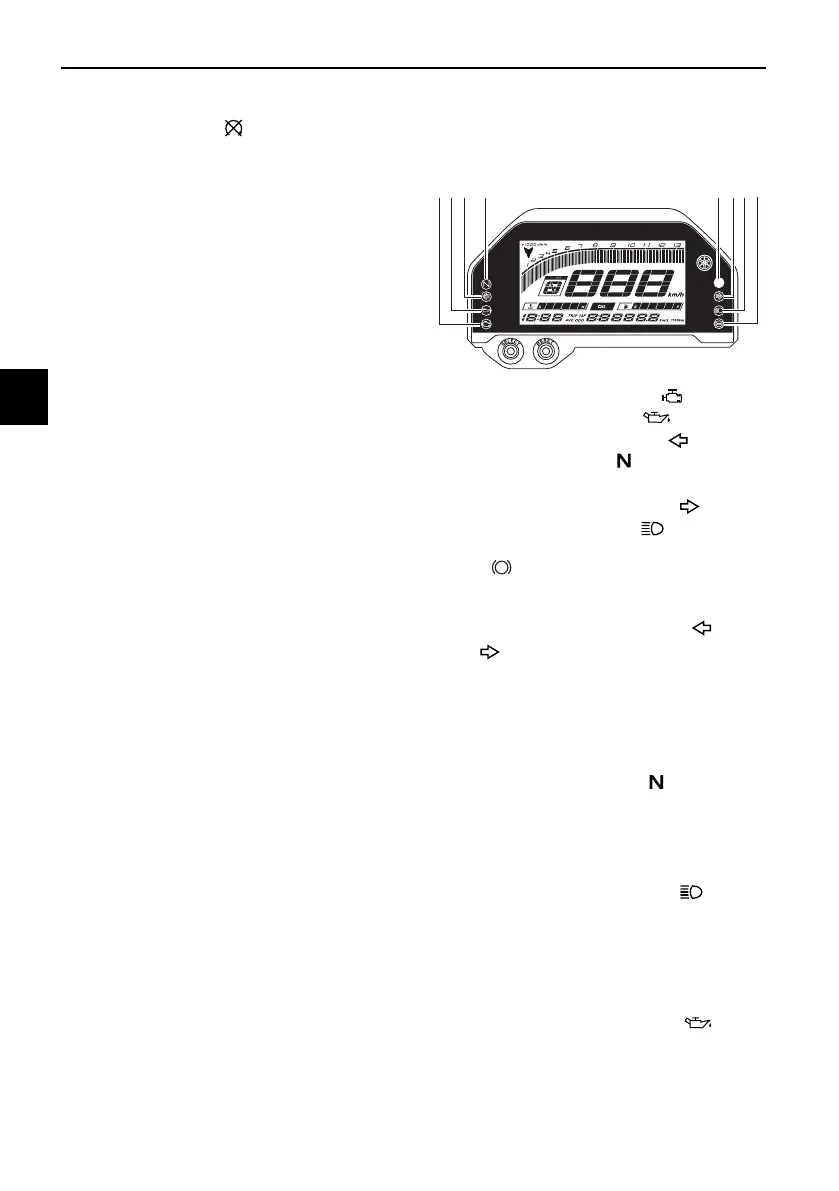

1. Engine trouble warning light “ ”
2. Oil pressure warning light “ ”
3. Left turn signal indicator light “ ”
4. Neutral indicator light “ ”
5. Shift timing indicator light
6. Right turn signal indicator light “ ”
7. High beam indicator light “ ”
8. Anti-lock Brake System (ABS) warning
light “ ”
8
MPH
MPG mile
123 4 5 67
ABS
