Yamaha MT03M - Drive Chain Service

Periodic maintenance and adjustment
7-23
7
EAU22762
Drive chain slack
The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU74253
To check the drive chain slack
1. Place the motorcycle on the side-
stand.
TIP
When checking and adjusting the drive
chain slack, there should be no weight
on the motorcycle.
2. Shift the transmission into the
neutral position.

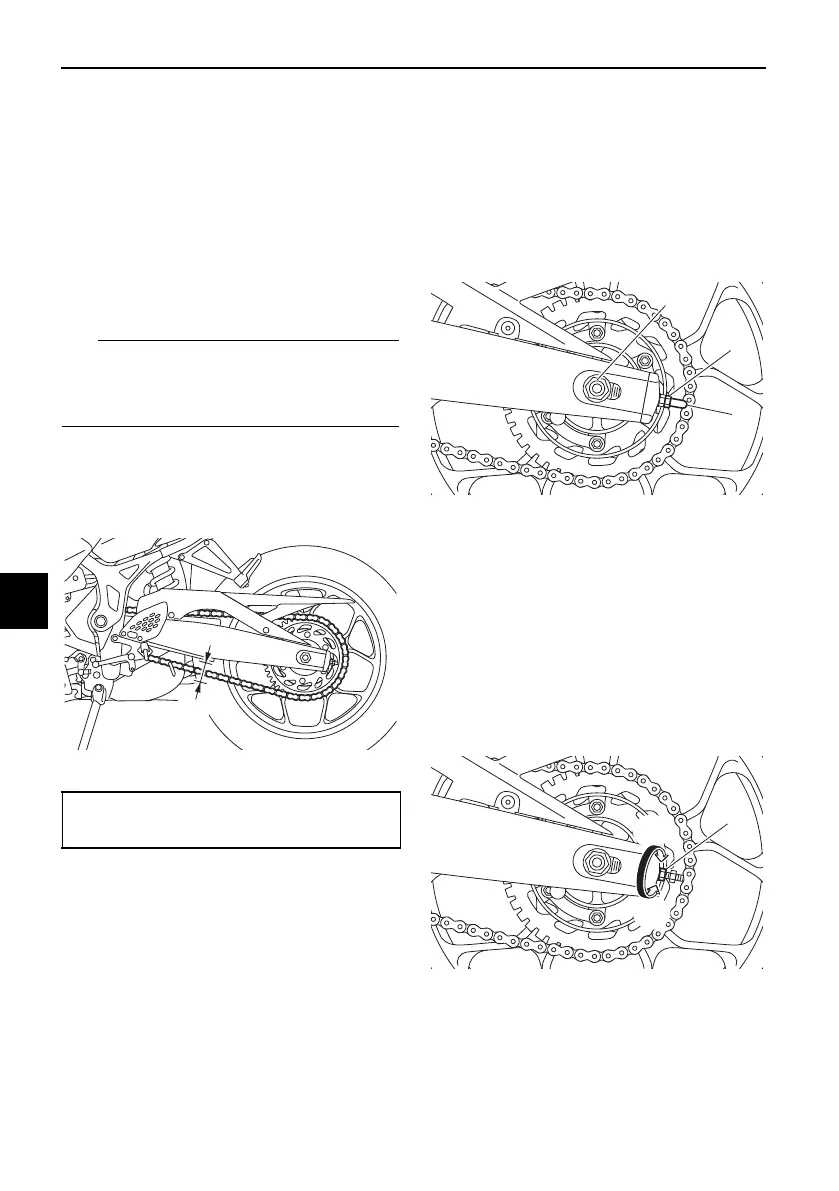

3. Measure the drive chain slack as
shown.
4. If the drive chain slack is incorrect,
adjust it as follows. NOTICE: Im-
proper drive chain slack will
overload the engine as well as
other vital parts of the motorcy-
cle and can lead to chain slip-
page or breakage. To prevent
this from occurring, keep the
drive chain slack within the
specified limits.
[ECA10572]
EAU62983
To adjust the drive chain slack
Consult a Yamaha dealer before ad-
justing the drive chain slack.
1. Remove the drive chain puller cap,
and then loosen the axle nut and
the locknut on each side of the
swingarm.
2. To tighten the drive chain, turn the
drive chain slack adjusting nut on
each side of the swingarm in di-
rection (a). To loosen the drive
chain, turn the adjusting nut on
each side of the swingarm in di-
rection (b), and then push the rear
wheel forward.
1. Drive chain slack
Drive chain slack:
35.0–45.0 mm (1.38–1.77 in)
1
1. Locknut
2. Drive chain puller cap
1. Drive chain slack adjusting nut
2
3
1
1
(a)
(b)
