Replacing the fuses

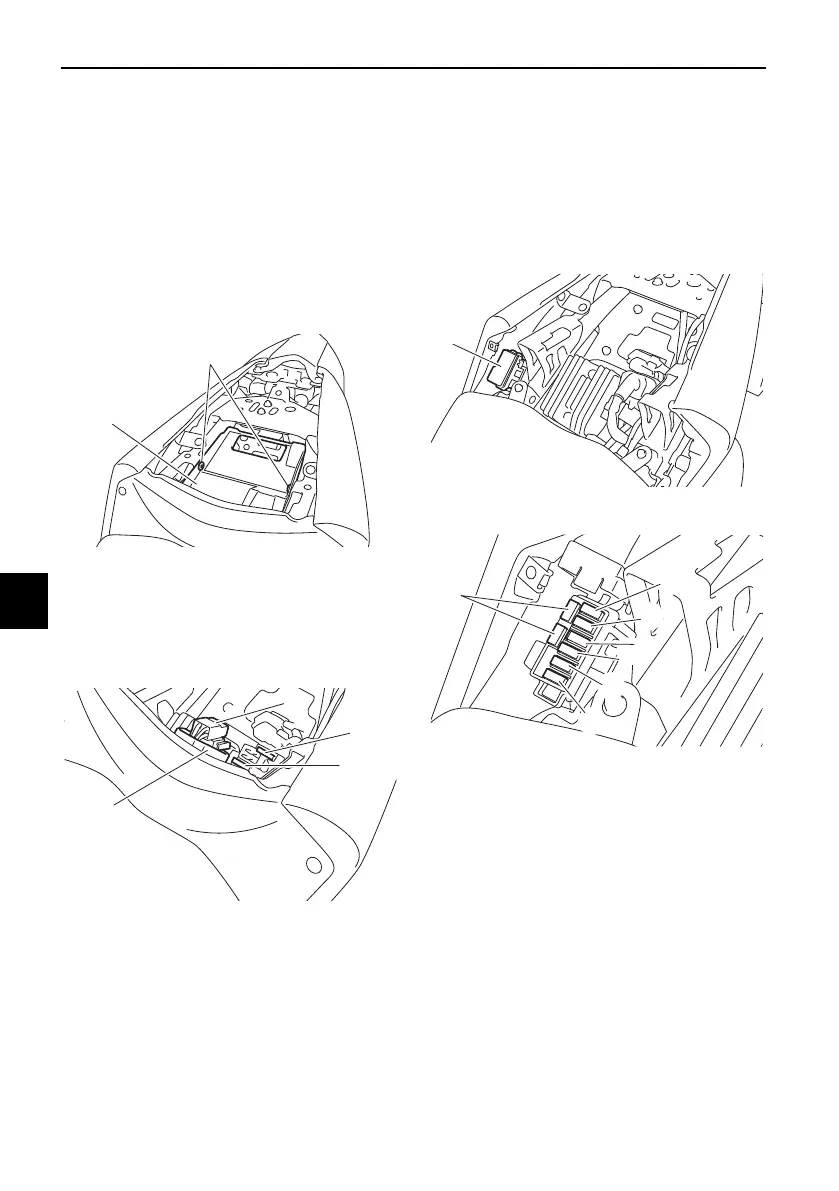

The main fuse is located under the
passenger seat.
To access the main fuse, proceed as
follows.
1. Remove the passenger seat. (See
page 4-18.)
2. Remove the tray by removing the
quick fasteners.
3. Pull back the starter relay cover,
and then disconnect the starter re-
lay coupler as shown.
4. Connect the starter relay coupler,
and then slide the cover to its orig-
inal position.
5. Place the tray in its original posi-
tion, and then install the quick fas-
teners.
6. Install the passenger seat.
Fuse box 1 is located behind the center
cover. (See page 4-18.)
Fuse box 1
Fuse box 2 is located under the rider
seat. (See page 4-18.)
1. Quick fastener
2. Tray
1. Starter relay cover
2. Starter relay coupler
3. Main fuse
4. Spare main fuse
2
1
1
2
3
4
1. Fuse box 1
1. Ignition fuse
2. Signaling system fuse
3. ABS control unit fuse
4. Headlight fuse
5. Backup fuse (for clock)
6. Radiator fan motor fuse
7. Spare fuse
