Yamaha PSR-S970 Reference Manual

122 PSR-S970/S770 Reference Manual
10
Connections

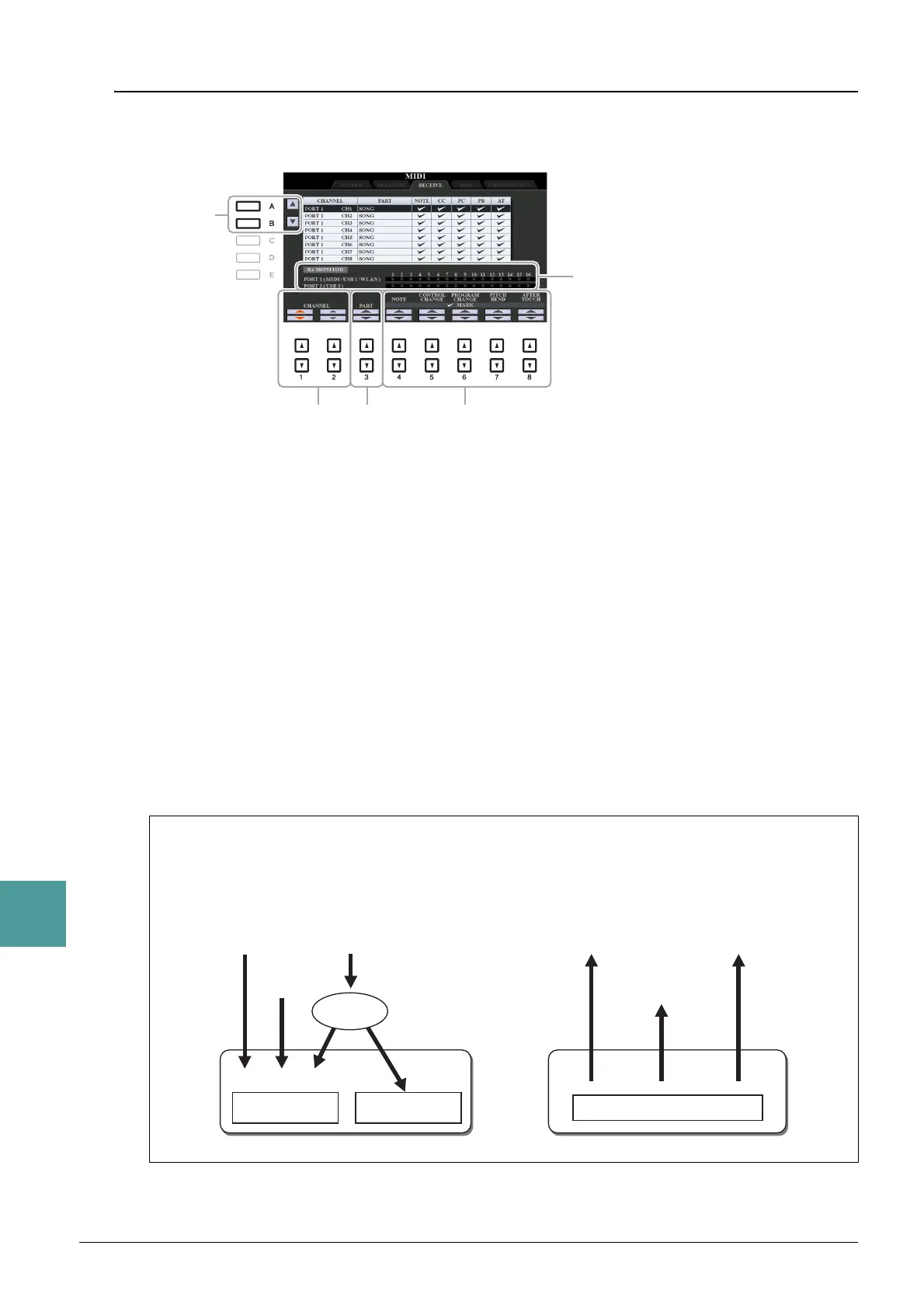

MIDI Receive Settings
The explanations here apply to the RECEIVE page in step 4 on page 118. This determines which parts will
receive MIDI data and over which MIDI channels the data will be received.
1 Use the [A]/[B] buttons or [1 ]/[2 ] buttons to select the channel to be received.
The instrument can receive MIDI messages over 32 channels (16 channels x 2 ports) by USB connection.
2 Use the [3 ] buttons to select the part via which the selected channel will be
received.
The Parts listed on this display are the same as those shown in the MIXING CONSOLE display and
CHANNEL ON/OFF display with the exception of the following parts.
KEYBOARD: The received note messages control the instrument’s keyboard performance.
EXTRA PART 1–5: There are five parts specially reserved for receiving and playing MIDI data.
Normally, these parts are not used by the instrument itself. The instrument can be used as a 32-channel
multi-timbral tone generator by using these five parts in addition to the parts (except for the
microphone/guitar sound).
3 Use the [4 ]–[8 ] button to determine the types of data to be received.
For information on the MIDI messages which can be set here, see “Note Events” on page 73.
MIDI transmission/reception via the USB terminals and MIDI terminals
The relationship between the MIDI terminals and the USB terminals which can be used for transmitting/
receiving 32 channels (16 channels x 2 ports) of the MIDI messages is as follows:
1
1 2 3
The dots corresponding to each channel (1–16)
flash briefly whenever any data is received on the
channel(s).
NOTE If “WLAN” is shown, this instrument can handle
MIDI messages received via the USB wireless LAN
adaptor connected to the [USB TO DEVICE] termi-
nal. When “WLAN” is not shown although the USB
wireless LAN adaptor is connected, turn the instru-
ment off then on again.
 MIDI reception  MIDI transmission
MIDI [IN] terminal [USB TO HOST] terminal MIDI [OUT] terminal [USB TO HOST] terminal
Port handling
USB2USB1
Merge
MIDI/USB1/WLAN
01–16
USB2
01–16
MIDI/USB/WLAN 01–16
Wireless
LAN
Wireless LAN

Yamaha PSR-S970 Specifications

General

Polyphony	128 notes
Voices	989 Voices + 41 Drum/SFX Kits + 480 XG Voices
Fingering	Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Music Finder	Yes
One Touch Setting (OTS)	4 for each style
Display	7-inch TFT Color Wide VGA LCD
Keyboard	61 keys
Effects	Reverb, Chorus, DSP, Master EQ
Styles	450
Style Control	INTRO, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING
Audio Recorder/Player	Recording: WAV (44.1kHz, 16bit, stereo); Playback: WAV (44.1kHz, 16bit, stereo), MP3
Internal Memory	Approx. 13 MB
External Drives	USB Flash Memory
Connectivity	Headphones, MIDI In/Out, USB to Device, USB to Host, AUX In
Speakers	13 cm x 2 + 5 cm x 2
Power Supply	PA-300C or an equivalent recommended by Yamaha
