Yamaha PSR-S970 Reference Manual

8
88 PSR-S970/S770 Reference Manual
8
Microphone/Guitar Input
Microphone/Guitar Input
Contents
Making and Saving the Microphone/Guitar Settings (EQ/CMP). . . . . . . . . . . . . . . . . . . . . . . . . .88
• Saving the Microphone/Guitar Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
• MIC/GUITAR Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
• TALK Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Setting and Editing Vocal Harmony Types (PSR-S970) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
• Setting up the Vocal Harmony Control Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
• Editing the Vocal Harmony Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Editing the Synth Vocoder Types (PSR-S970) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
• Editing the OVERVIEW Tab Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
• Editing the DETAIL Tab Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
This section explains how to make and save the detailed settings for the microphone/guitar.
1 Connect a microphone or guitar, press the [MIC SETTING/VOCAL HARMONY] button
(PSR-S970) or [MIC SETTING] (PSR-S770) button to call up the operation display, then
press the [A] (MIC/GUITAR) button to set it to ON.
This lets you talk into the microphone or play the guitar and hear the changes made while setting the
parameters.
2 Press the [B] (EQ/CMP) button to call up the EQ/CMP SETTING display.
3 Select the desired page, MIC/GUITAR or TALK, by using the TAB [E][F] buttons.
NOTE The settings on the TALK page are the settings that are active when the [F] (TALK) button is on.
4 Use the [A]–[E] buttons to select the specific row (or group) of parameters to be
adjusted.
5 Set the value of specific parameters in the row by using the [1 ]–[6 ] buttons.
For information on each parameter, see pages 89–90.
NOTICE
After setting, go to the EQ/CMP SETTING MEMORY display by pressing the [I] (USER MEMORY) button and save the settings (see
page 89). The settings will be lost if you exit from this display or turn off the power to the instrument without carrying out the Save oper-
ation.

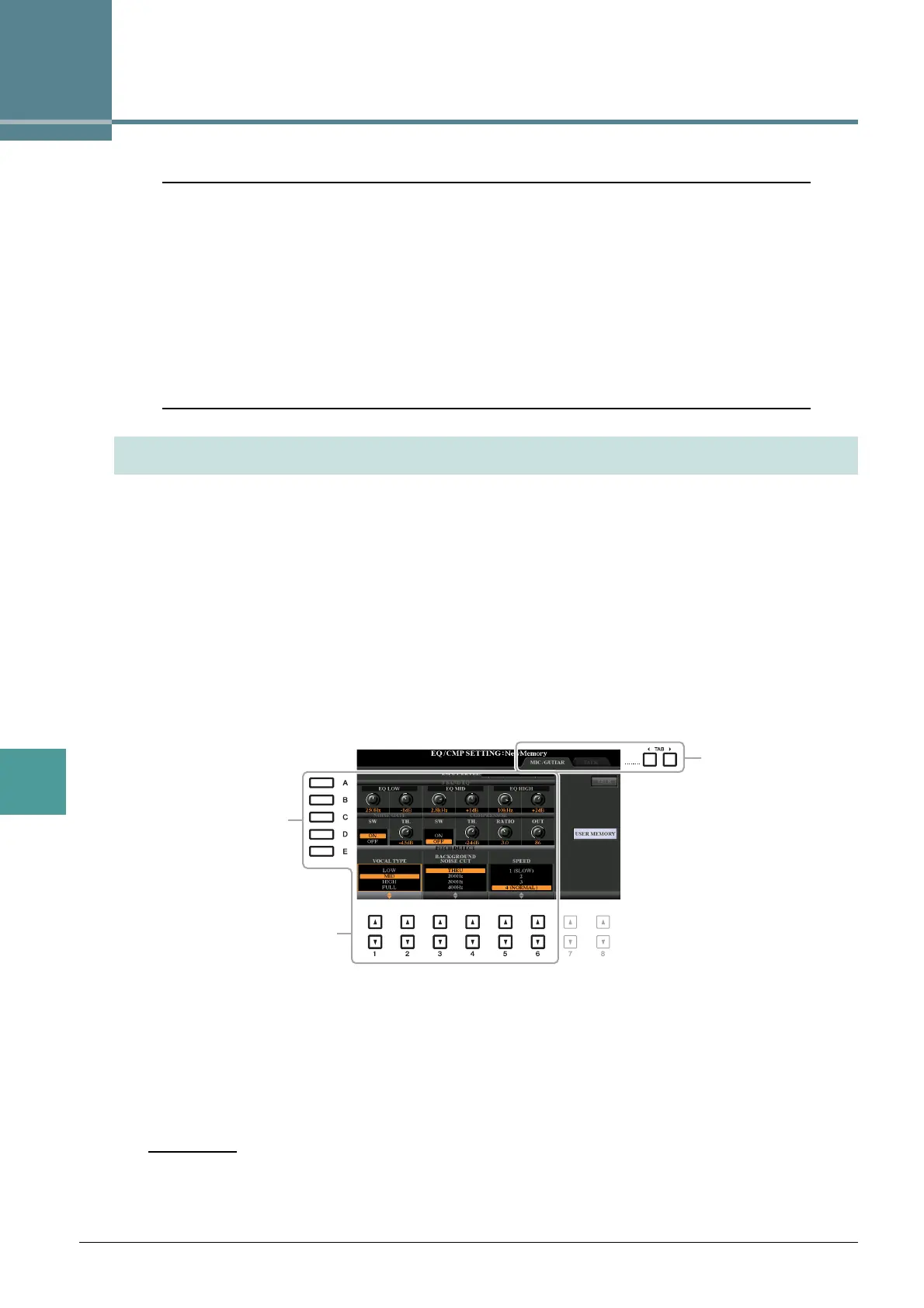

Making and Saving the Microphone/Guitar Settings (EQ/CMP)
3
4
5

Yamaha PSR-S970 Specifications

General

Polyphony	128 notes
Voices	989 Voices + 41 Drum/SFX Kits + 480 XG Voices
Fingering	Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Music Finder	Yes
One Touch Setting (OTS)	4 for each style
Display	7-inch TFT Color Wide VGA LCD
Keyboard	61 keys
Effects	Reverb, Chorus, DSP, Master EQ
Styles	450
Style Control	INTRO, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING
Audio Recorder/Player	Recording: WAV (44.1kHz, 16bit, stereo); Playback: WAV (44.1kHz, 16bit, stereo), MP3
Internal Memory	Approx. 13 MB
External Drives	USB Flash Memory
Connectivity	Headphones, MIDI In/Out, USB to Device, USB to Host, AUX In
Speakers	13 cm x 2 + 5 cm x 2
Power Supply	PA-300C or an equivalent recommended by Yamaha
