Yamaha QL5 Owner's Manual

Using libraries
Owner’s Manual
25

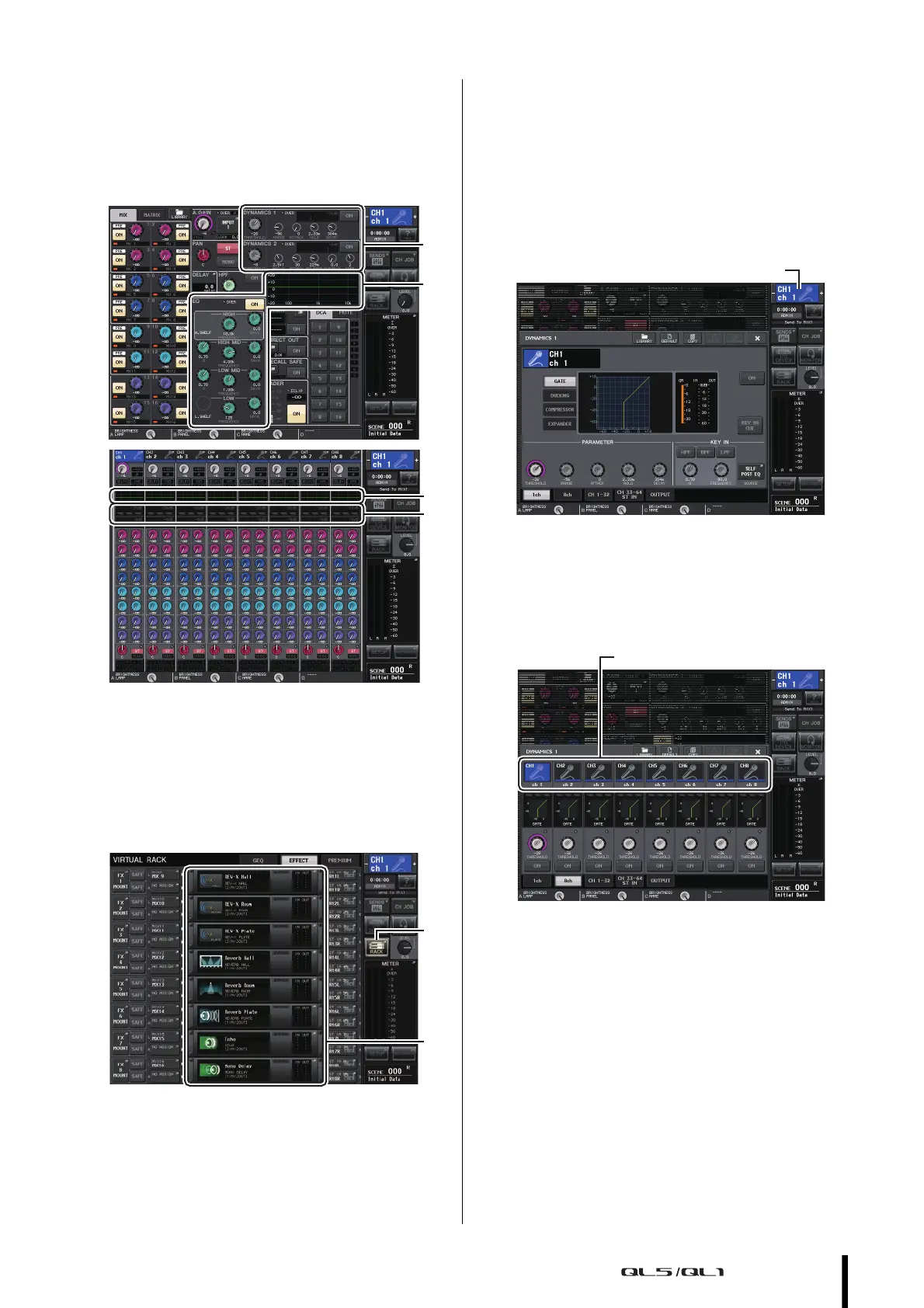

[HPF/EQ screen]/[DYNAMICS 1/2 screen]
In the SELECTED CHANNEL VIEW screen or the
OVERVIEW screen, press any knob in the
appropriate field for EQ or Dynamics 1/2. (In the
SELECTED CHANNEL VIEW screen, press any knob
twice; in the OVERVIEW screen, press the area
once.)
1 EQ field
2 Dynamics 1/2 field
[VIRTUAL RACK screen]
In the VIRTUAL RACK window that appears when
you press the RACK button in the function access
area, press a rack container in which a
GEQ/effect/Premium Rack is already mounted.
1 RACK button
2 RACK container
2. Select the channel (EQ/dynamics) or rack
(GEQ/effect/Premium Rack) for which you want
to recall settings.
The method of selecting a channel/rack will depend
on the type of window that is currently displayed.
[HPF/EQ window (1ch)]
[DYNAMICS 1/2 window (1ch)]
Use the panel [SEL] keys or the channel select
button in the function access area to select a
channel.
[HPF/EQ window (8ch)]
[DYNAMICS 1/2 window (8ch)]
In addition to using the panel [SEL] keys or the
channel select button in the function access area,
you can also select a channel by pressing the
channel number/channel name buttons in the
window.
If you use the channel number/channel name
buttons in the 8ch (8-channel) window, you can
select multiple channels by selecting a region. In
this case, the same library data will be recalled to all
of the selected channels.
2
1
1
2
1
2
Channel select button
Channel number / Channel name buttons
