Yamaha QL5 User Manual

QL5/QL1
138
1-21. DNT Brooklyn2 Test
Contents Determines whether the correct Brooklyn2 module is
installed for each model and also checks whether the
Brooklyn2 audio signal and Ethernet connection are
satisfactory or not.

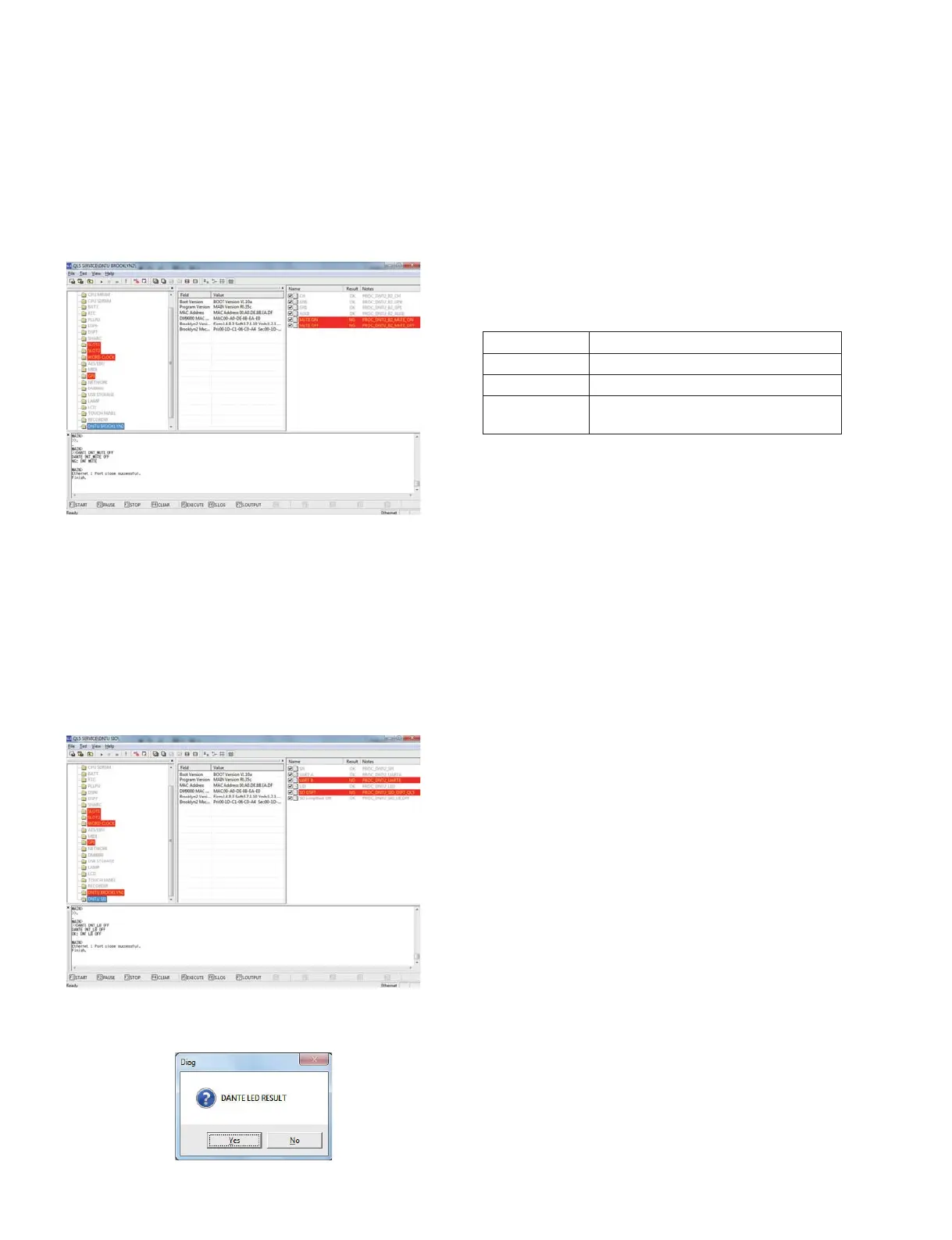

Example of executing screen
1-22. DNT SIO Test
Contents Checks the connection between DSP7 and DANTE
by transmitting and receiving signals.
Checks the condition of DNT circuit board
and Brooklyn2 by executing UART and SPI
communication between them.
Checks visually each of Primary and Secondary
LEDs for lighting(fl ashing).
Example of executing screen
Enter the results of the LED light up (fl ash) check in the
dialog box below.
2. Tests not requiring PC application
2-0. CN NAME LCD Display Test
After starting, at the same time as the check mode is activated,
the back light of all Mini LCDs lights up and the check pattern
appears.
As the check pattern changes at every pressing of any switch,
check visually that there is nothing abnormal.
The table below shows the contents to be checked for each
check pattern.
Also, check for reversed contrast as described below during the
normal operation check or sound output check.
While viewing the NAME DISPLAY at the height barely
visible from the front pad, adjust the contrast (close to the
maximum) so that the display looks deep black. If it doesn’t
become deep black in that state but the NAME DISPLAY
viewed at the height barely visible from the opposite (rear)
side looks deep black, it is judged as NG because the angle of
visibility is reversed.
2-1. All LEDs Lighting Test
Press any 3 switches simultaneously in the CH NAME LCD
display check mode, and the All LEDs Lighting Test mode will
be activated.
Confi rm visually that all LEDs on the panel are turned on.
2-2. Respective Color LEDs Lighting Test
Press any 3 switches simultaneously in the All LEDs Lighting
Test mode, and the Respective Color LEDs Lighting Test mode
will be activated.
Every time any one switch is pressed, the lighting LEDs change
in the order of red, orange and green.
Check visually that there is no LED lit in any different color.
All dot lighting All dots should be turned on.
Frame lighting Outermost dots should light in the frame shape.
All dots turned off All dots should be turned off.
CH number display
Numbers should be displayed in order from the
left.

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
