Yamaha QL5 User Manual

QL5/QL1
170

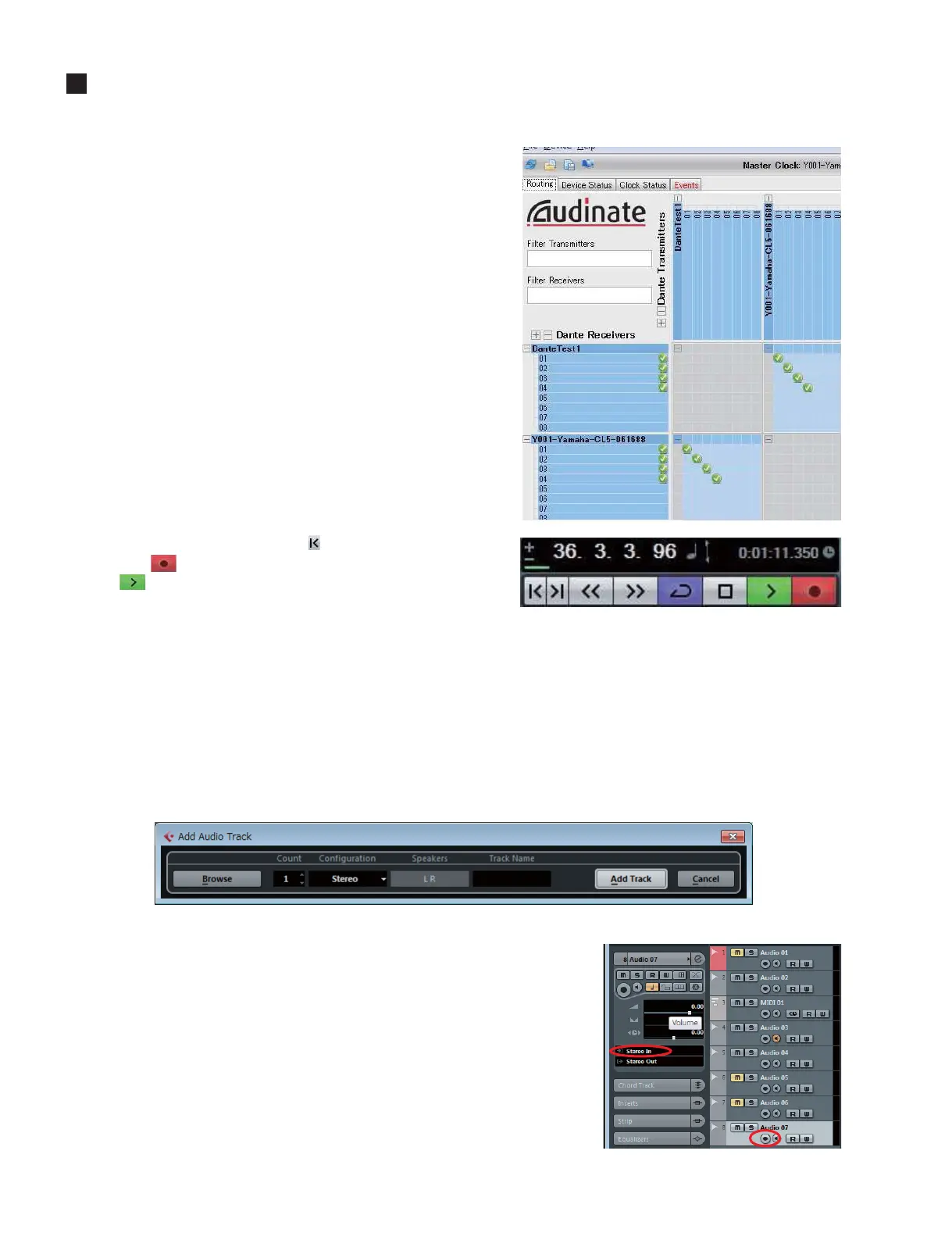

DANTE SOUND OUTPUT CHECK
1) Connect Dante of the QL unit and PC with the Ether cable.
2) Connect MIDI IN of the QL unit and USB port of PC with UX16.
3) Loading AllData (SEISAN1.CLF) for sound output check.
4) Activate Cubase (Sound output check of DSP6 on desk-top).
5) Activate Dante Virtual Sound (short-cut available on desk-top) and turn
on the power marked switch of the setting tab.
6) After activating Dante Controller (short-cut available on desk-top),
select File and then Load Preset to load “Dante DSP6 sound output
check preset”.
Check to ensure that the screen appears as shown right fi gure.
If the screen is not as shown right figure, turn on patch manually as
follows.
7) Return to the beginning by using the
button of Cubase and press the
red round button for sound reproduction.(Refer to the fi gure below)
(the
button is also usable for sound reproduction (check) but it is
better to keep the recorded data on the Cubase side.)
Scenes 5 to 38 are recalled successively.
(Scene 37 represents the scene data when muted and Scene 38 represents the scene data for checking sound input/output of DANTE.)
8) Confi rm that no noise is output for 15 seconds.
Cubase：Adding an audio track from a CD
Select
[Add Audio Track]
from the right-click mouse menu on the audio track listing, or add an audio track in
[Audio] – [Add Track]
– [Project]
from the menu.
When the dialog box below appears, click the
[Add Track]
button.
Confi rm that the recording of the added tracks (as with Track 7 in the fi gure at right) is off,
and that there is not input bus set.

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
