4 - 20
ENG
CAMSHAFT AND CYLINDER HEAD

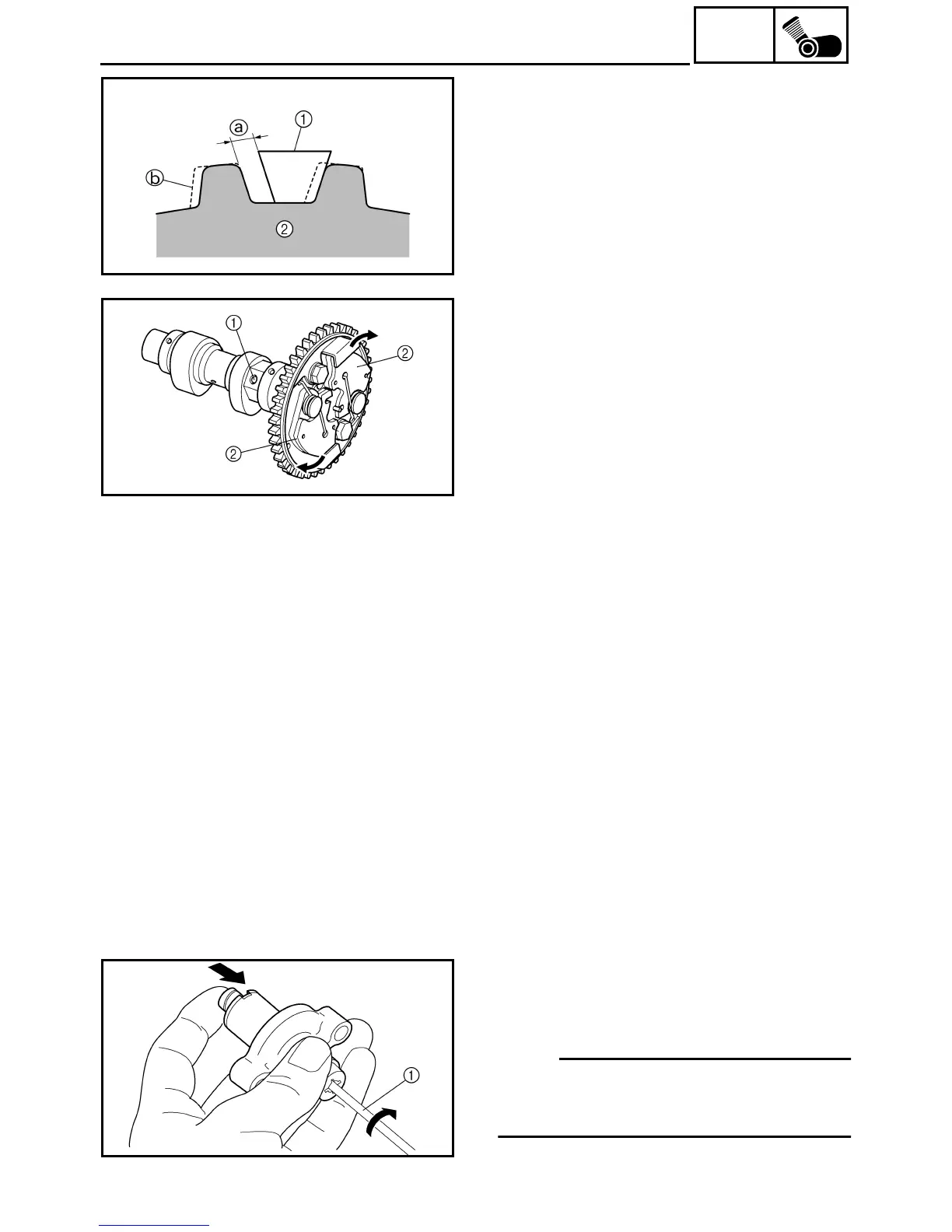

CHECKING THE CAMSHAFT SPROCKET
1. Check:
• camshaft sprocket
Wear/damage → Replace the camshaft
sprocket and timing chain as a set.
a
1/4 of a tooth
b
Correct
1
Timing chain
2
Sprocket
CHECKING THE DECOMPRESSION
SYSTEM
1. Check:
• decompression system
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
Check while the camshaft sprocket is installed
on the camshaft.
a. Check that the decompressor lever pin
1
projects from the camshaft.
b. Check that the decompressor cam
2
moves smoothly.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
CHECKING THE TIMING CHAIN GUIDE
(EXHAUST SIDE)
1. Check:
• timing chain guide (exhaust side)
Wear/damage → Replace.
CHECKING THE TIMING CHAIN
TENSIONER
1. Check:
• timing chain tensioner
Cracks/damage/rough movement →
Replace.
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Lightly press the timing chain tensioner rod
into the timing chain tensioner housing by
hand.
NOTE:
While pressing the timing chain tensioner rod,
wind it clockwise with a thin screwdriver
1
until it stops.
