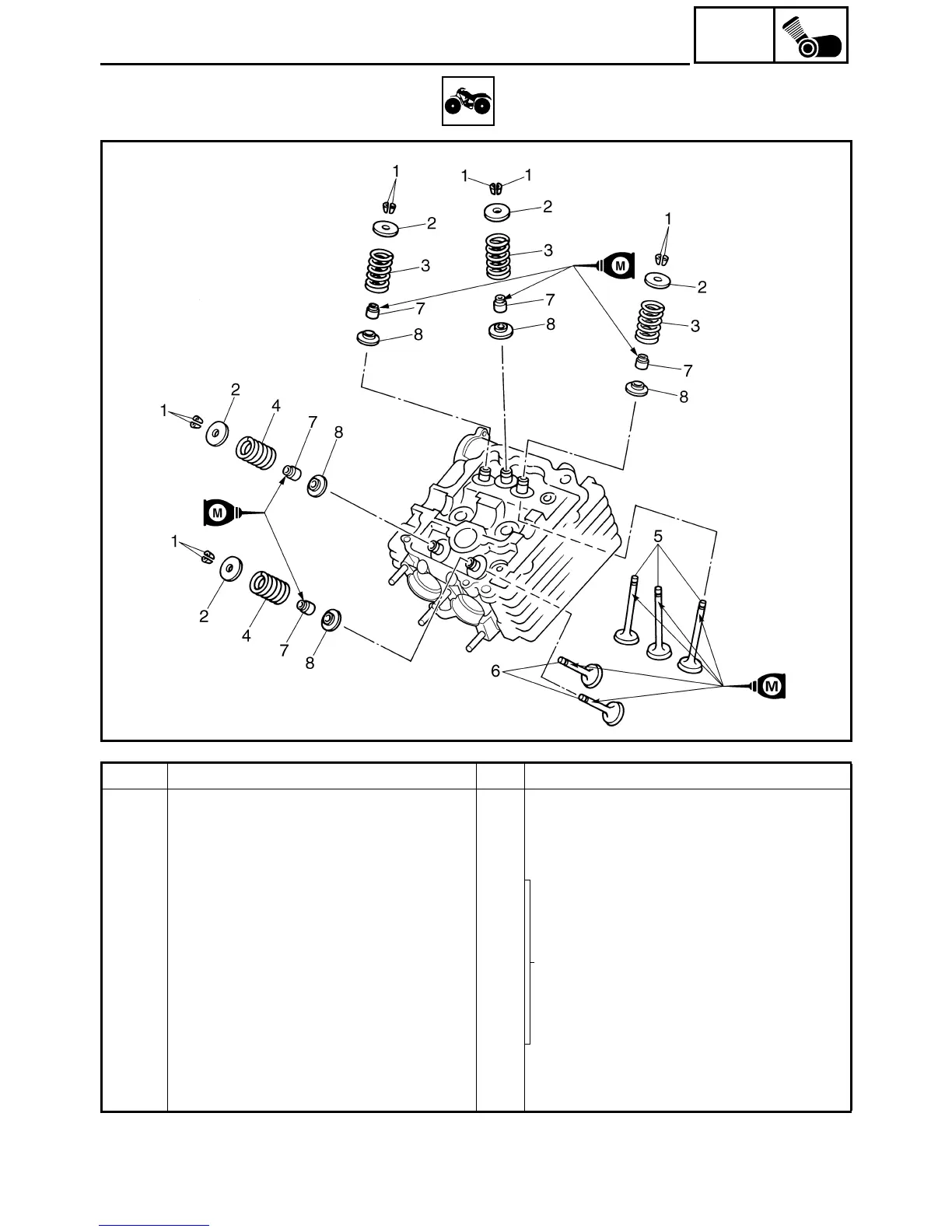

VALVES AND VALVE SPRINGS
VALVES AND VALVE SPRINGS
Order Job/Part Q’ty Remarks
Removing the valves and valve
springs
Remove the parts in the order listed.
Cylinder head Refer to “CAMSHAFT AND CYLINDER
HEAD”.
1 Valve cotter 10
Refer to “REMOVING THE VALVES
AND VALVE SPRINGS” and “INSTALL-
ING THE VALVES AND VALVE
SPRINGS”.
2 Valve spring retainer 5
3 Intake valve spring 3
4 Exhaust valve spring 2
5 Intake valve 3
6 Exhaust valve 2
7 Valve stem seal 5
8 Valve spring seat 5
For installation, reverse the removal pro-
cedure.
To Next Page
