– 29 –
CHAS
SEATS, ENCLOSURE, HOOD AND CARGO BED

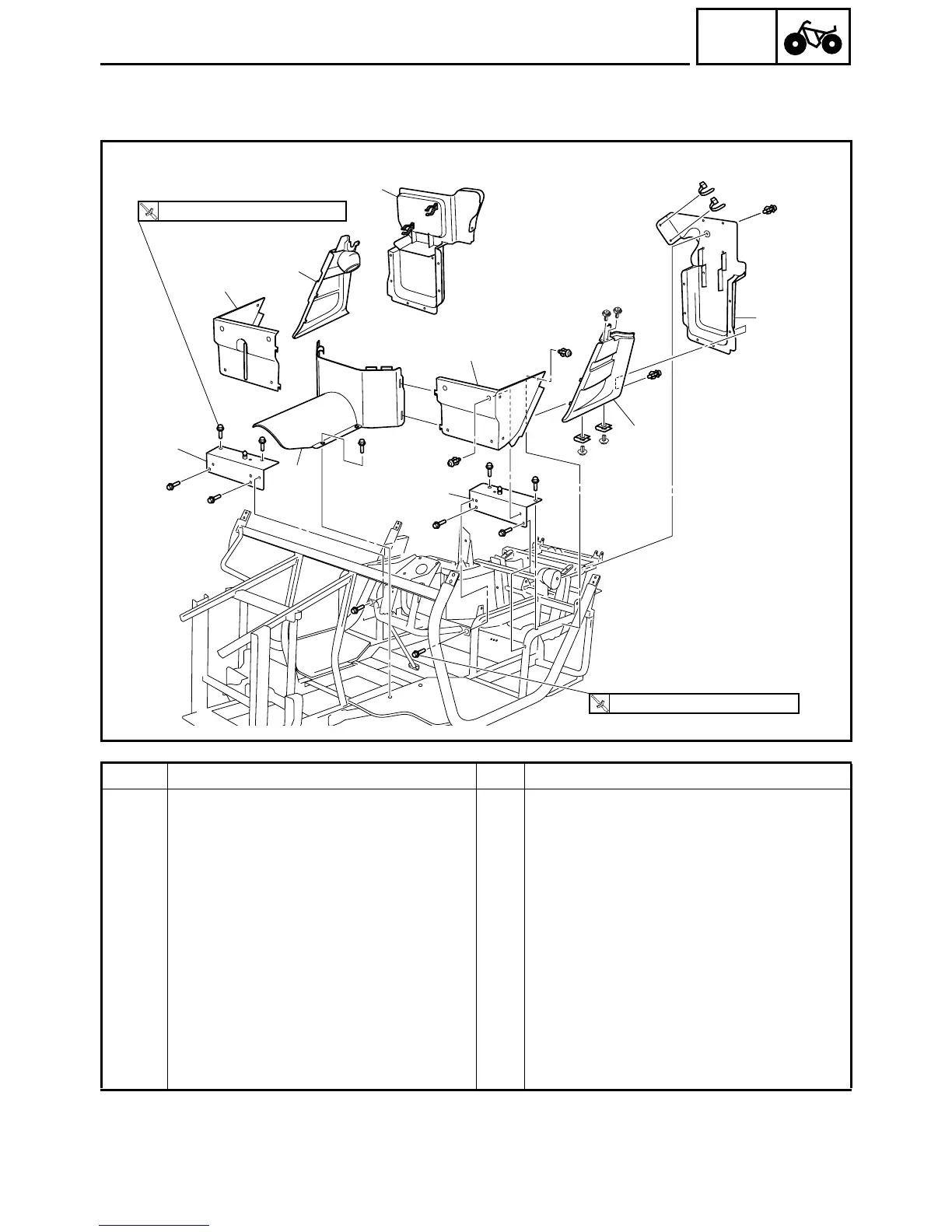

PANELS AND FOOTREST COVER
1
(12)
6
3
2
4
9
7
8
(8)
(8)
(4)
(6)
(4)
(4)
5
T
R
.
.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
T
R
.
.
32 Nm (3.2 m
•
kg, 23 ft
•
Ib)
Order Job/Part Q’ty Remarks
Removing the panels and footrest
cover
Remove the parts in the order listed.
1 Left side panel 1
2 Right side panel 1
3 Left corner panel 1
4 Right corner panel 1
5 Left protector 1 1
6 Right protector 1 1
7 Footrest cover 1
8 Driver seat support 1
9 Passenger seat support 1
For installation, reverse the removal pro-
cedure.
To Next Page
