9 - 16
– +
ELEC
ELECTRIC STARTING SYSTEM

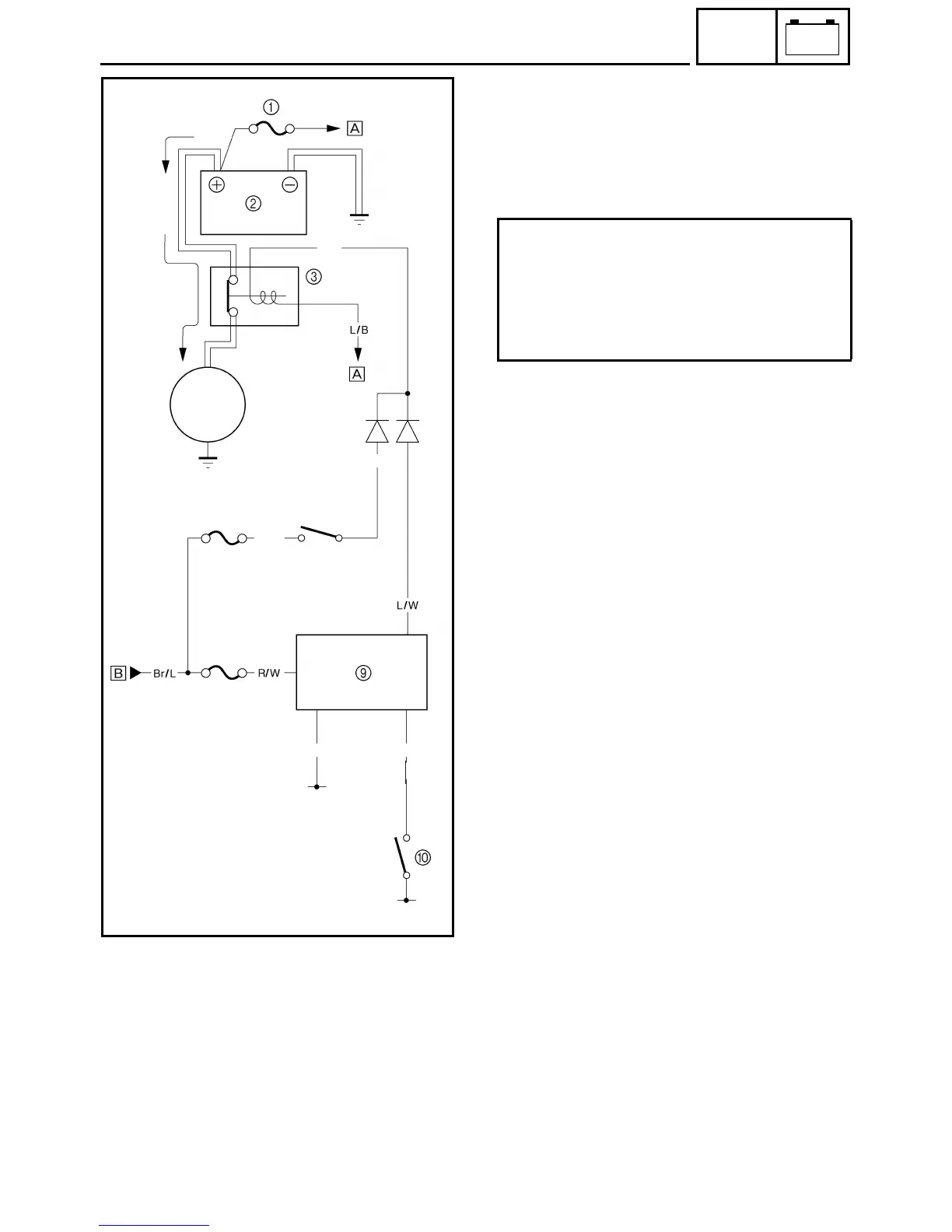

STARTING CIRCUIT OPERATION
The starting circuit on this model consists of
the starter motor, starter relay, brake light
switch, C.D.I. unit and gear position switch. If
the main switch is “START” position, the
starter motor can be operated only if:
1
Main fuse
2
Battery
3
Starter relay
4
Starter motor
5
Diode 1
6
Signaling system fuse
7
Brake light switch
8
Ignition fuse
9
C.D.I. unit
0
Gear position switch
È
TO MAIN SWITCH
É
FROM MAIN SWITCH
• The transmission is in neutral (the gear
position switch is in the neutral gear posi-
tion).
or
• The brake pedal is pressed (the brake light
switch is closed).
Y/L
5
67
8
B/Y
Br
B Sb
4
