8 - 31
CHAS
FRONT AND REAR BRAKES

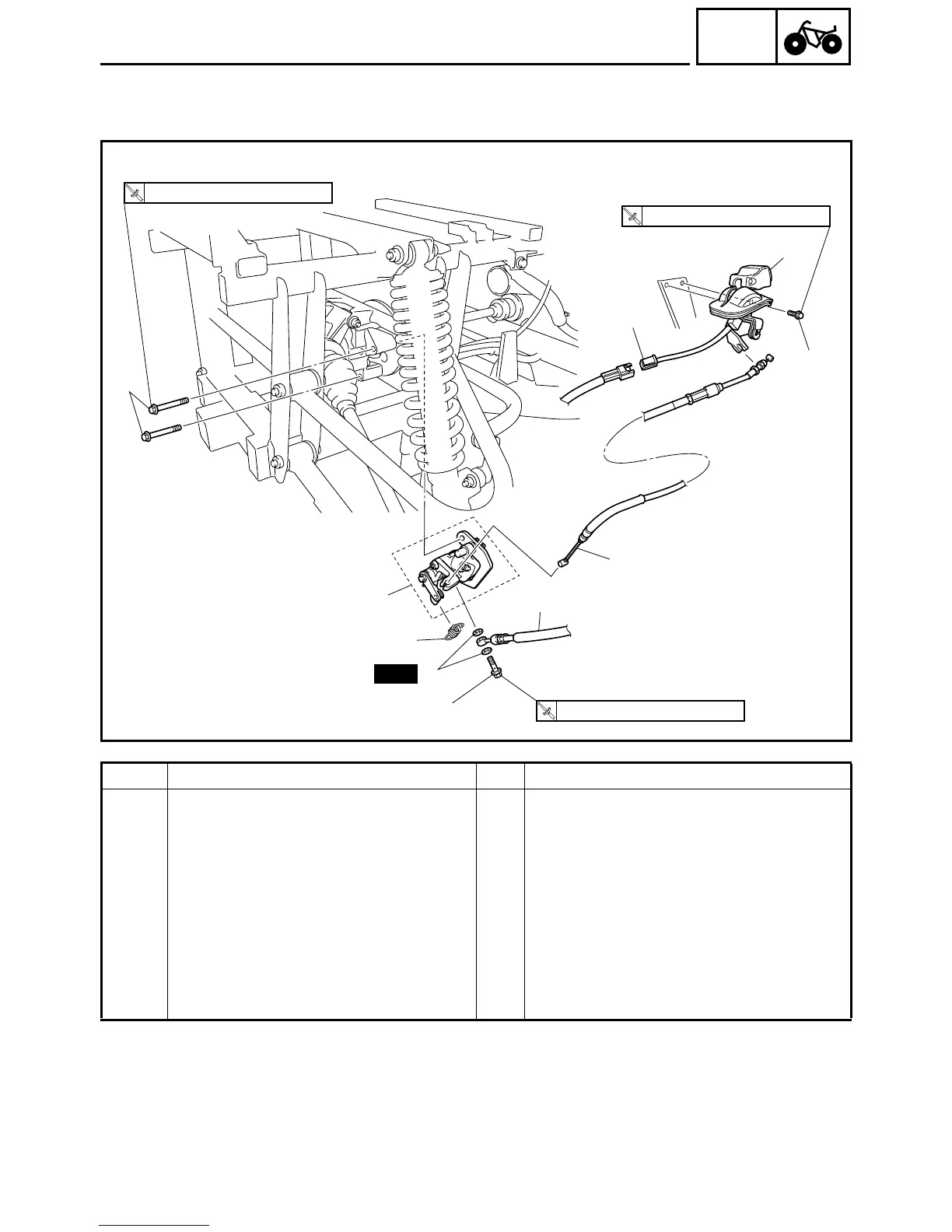

REAR BRAKE CALIPER
T
R
.
.
27 Nm (2.7 m
•
kg, 19 ft
•
Ib)
T
R
.
.
40 Nm (4.0m
•
kg, 29 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
1
2
3
4
5
6
7
8
9
10
New
Order Job/Part Q’ty Remarks
Removing the rear brake caliper
Remove the parts in the order listed.
Rear skid plate Refer to “SEATS, ENCLOSURE, HOOD
AND CARGO BED”.
Brake fluid Drain.
1 Parking brake switch coupler 1 Disconnect.
2Spring 1
3 Parking brake cable 1
4 Parking brake lever assembly mount-
ing bolt
1
5 Parking brake lever assembly 1
To Next Page
