DESCRIPTION
2

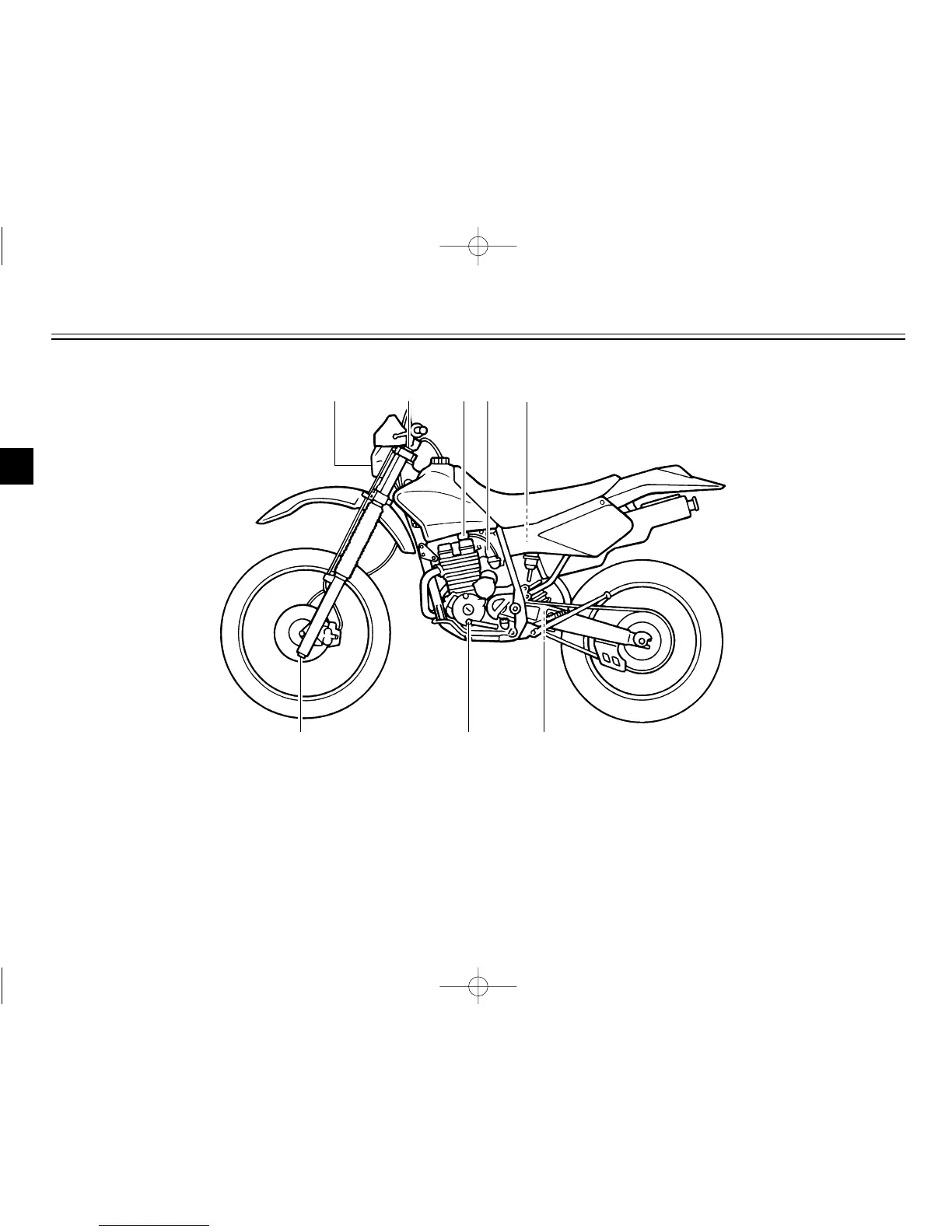

1. Headlight (page 6-31)
2. Front fork air valve (page 3-7)
3. Fuel cock (page 3-5)
4. Starter (choke) knob (page 3-6)
5. Air filter element (page 6-12)
6. Shock absorber rebound
damping adjusting dial (page 3-11)
7. Shift pedal (page 3-2)
8. Front fork damping adjusting
screw (page 3-9)
1345
6
78
2
Left view
5GF-9-14 (USA) 4/23/02 2:10 PM Page 16

Yamaha TT-R Specifications

General

Ignition	CDI
Final Drive	Chain
Fuel Delivery	Carburetor
Transmission	5-speed
Suspension / Front	Telescopic fork
Brakes / Rear	Drum
Height	1, 080 mm (42.5 in)
Rake (Caster Angle)	27º
